CLUTCH
KE100-A7 KE100 1978 CANADA

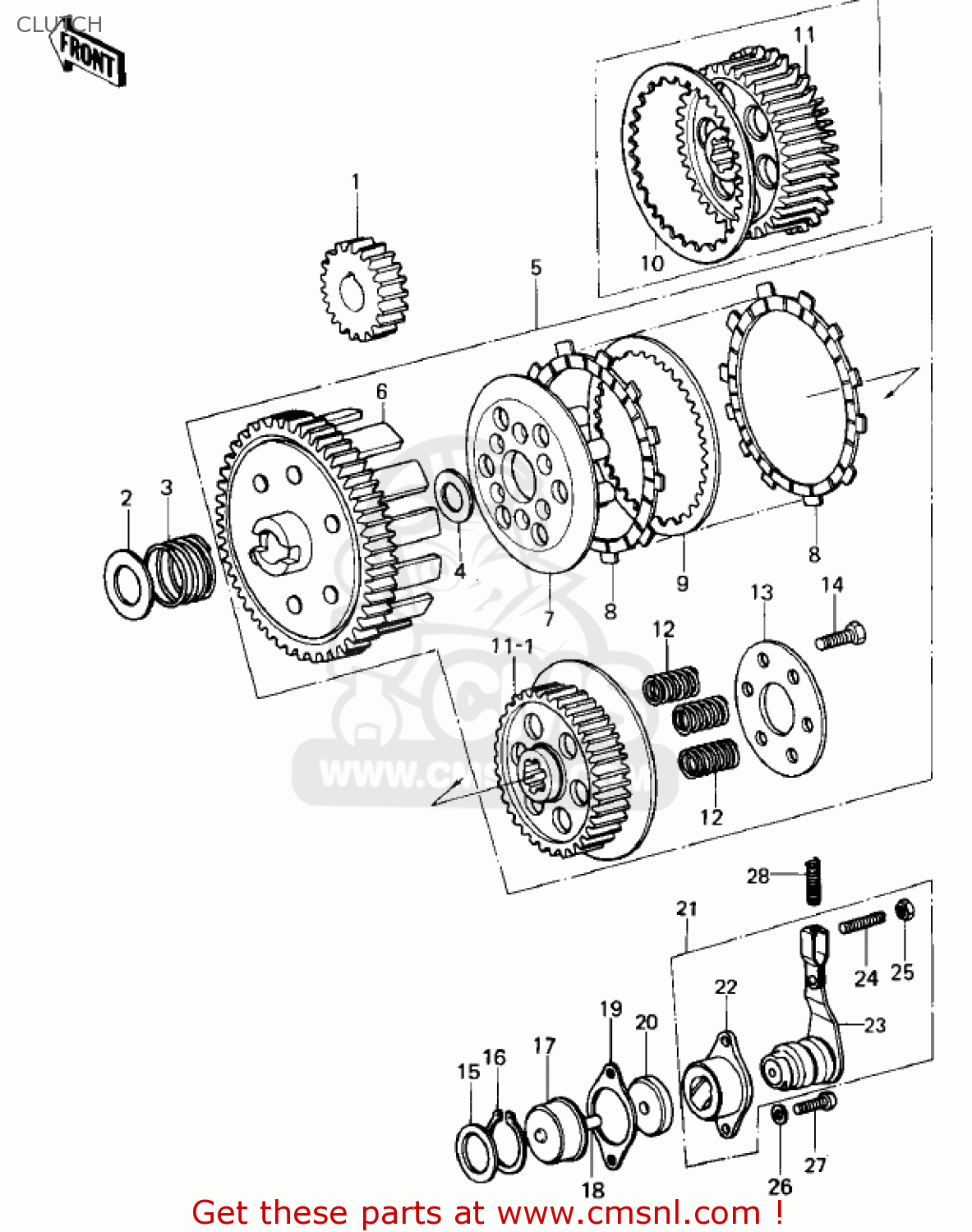

Clutch diagram KE100-A7 KE100 1978 CANADA
CLUTCH KE100-A7 KE100 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
13121032
ref: 1
KE100-A5
GEAR-PRIMARY SPUR
€ 92.50
1
13121032
ref: 1
KE100-A6/A7/A8/A9/A1
GEAR-PRIMARY SPUR
€ 92.50
2
92022057
ref: 2
WASHER,25.5X36X1
€ 2.50
3
92081015
ref: 3
SPRING-CLUTCH DAMPER
€ 4.00
4
92022054
ref: 4
WASHER,16.5X27X1.4
€ 4.50
5
13081028
ref: 5
KE100-A5/A6
CLUTCH ASSY
€ 193.00
5
13081028
ref: 5
KE100-A7/A8/A9/A10
CLUTCH ASSY
€ 193.00
6
13095022
ref: 6
KE100-A5/A6
HOUSING,CLUTCH
€ 216.00
6
13095022
ref: 6
KE100-A7/A8/A9/A10
HOUSING,CLUTCH
€ 216.00
7
130861002
ref: 7
KE100-A5/A6/A7
WHEEL,CLUTCH
€ 33.00
7
130861002
ref: 7
KE100-A8/A9/A10
WHEEL,CLUTCH
€ 33.00
8
130881103
ref: 8
PLATE-FRICTION (MCA)
€ 11.00
9
130891009
ref: 9
PLATE-CLUTCH,STEEL (NAS)
€ 8.50
10
13090004
ref: 10
NOT REQUIRED FOR 130
PLATE-CLUTCH,OUTER (NAS)
€ 11.50
11
130871011
ref: 11
KE100-A5/A6/A7
HUB-CLUTCH
€ 74.00
11-1
130871011
ref: 11-1
KE100-A8/A9/A10
HUB-CLUTCH
€ 74.00
12
92081012
ref: 12
SPRING-CLUTCH
€ 4.00
13
130911115
ref: 13
HOLDER,CLUTCH SPRING
€ 12.50
14
112G0516
ref: 14
BOLT-UPSET
€ 0.50
15
92022053
ref: 15
WASHER,THRUST,16.5X21
€ 2.50
16
480J1600
ref: 16
CIRCLIP-TYPE-C,16MM
€ 2.50
17
13113003
ref: 17
PUSHER-COMP-CLUTCH
€ 6.50
18
92042043
ref: 18
PIN,DOWEL,7X20
€ 3.50
19
110601197
ref: 19
GASKET,CLUTCH RELEASE (NAS)
€ 3.50
20
92050071
ref: 20
OIL SEAL
€ 7.00
21
132311008
ref: 21
RELEASE-ASSY-CLUTCH
€ 55.00
22
132311008
ref: 22
RELEASE-ASSY-CLUTCH
€ 55.00
23
132311008
ref: 23
RELEASE-ASSY-CLUTCH
€ 55.00
24
291H0616
ref: 24
SCREW,SLOTTED,6X16
€ 4.00
25
312B0600
ref: 25
NUT,6MM
€ 0.50
26
410B0600
ref: 26
WASHER-PLAIN-SMALL,6M
€ 0.50
27
220B0616
ref: 27
SCREW-PAN HEAD,6X16
€ 2.50
28
92081096
ref: 28
SPRING-CLUTCH RELEASE
€ 3.50
