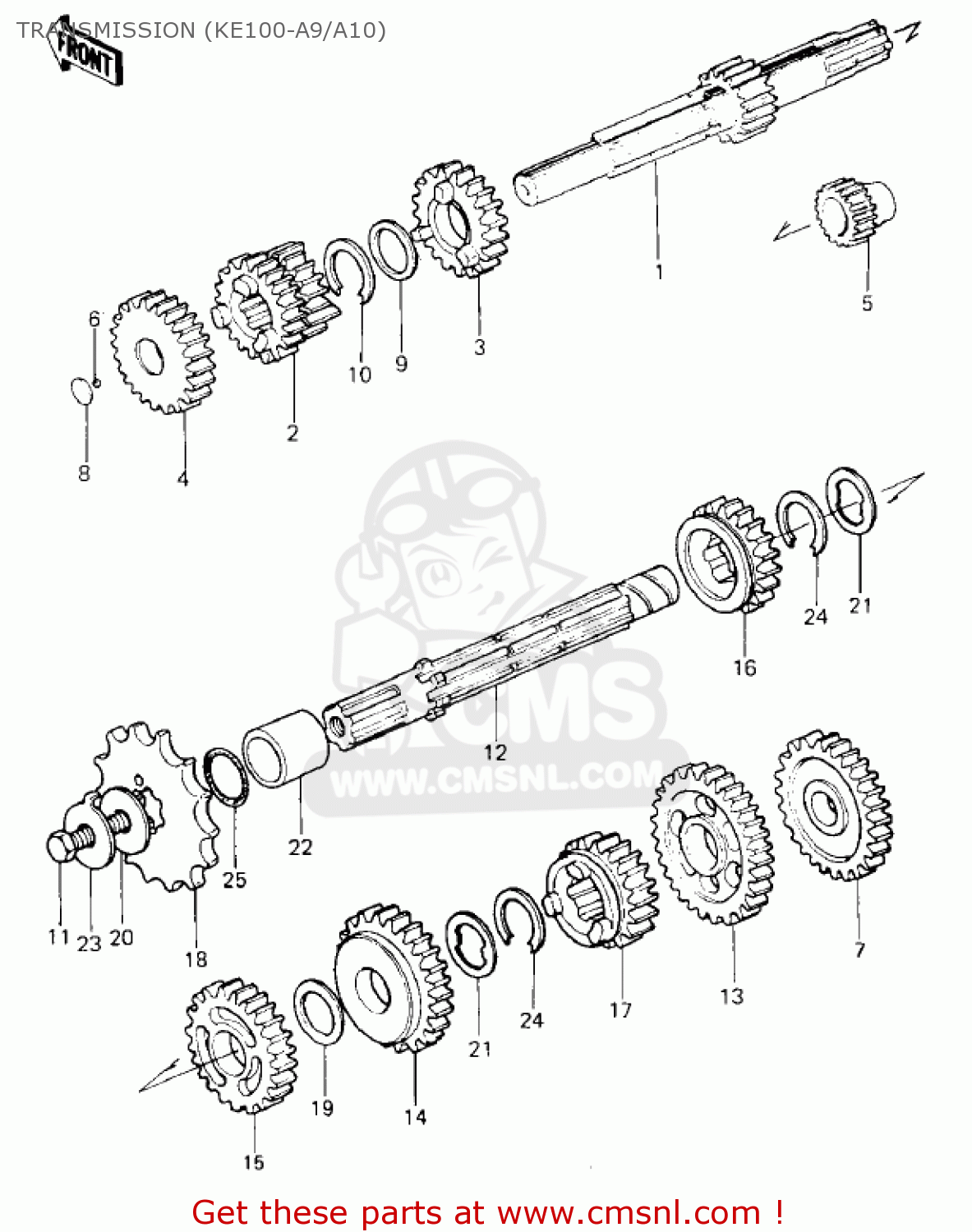

TRANSMISSION (KE100-A9/A10)

ref

part #

description

quantity

1

131271017
ref: 1

SHAFT,DRIVE

€ 155.00

2

131291138
ref: 2

GEAR,INPUT 2ND&3RD,17

€ 59.50

3

131291139
ref: 3

GEAR,INPUT 4TH,22T

€ 46.00

4

131291146
ref: 4

GEAR,INPUT TOP,28T

€ 48.50

5

13075004
ref: 5

GEAR-SPUR,KICKSTARTER

€ 40.50

6

600A0700
ref: 6

BALL-STEEL,7/32

€ 2.50

7

13073004
ref: 7

GEAR-SPUR,KICKSTARTER

€ 55.50

8

92022115
ref: 8

WASHER,THRUST

€ 2.50

9

92022271
ref: 9

WASHER,PLAIN

€ 3.50

10

92033014
ref: 10

RING-SNAP,16MM

€ 3.50

11

115G0816
ref: 11
KE100-A9

BOLT-HEX,HEAD 8X16

€ 0.50

11

920011368
ref: 11
KE100-A10

BOLT,UPSET,8X16

€ 2.50

12

13128021
ref: 12

SHAFT-OUTPUT

€ 160.50

13

13129010
ref: 13

GEAR,OUTPUT LOW,35T

€ 66.50

14

131291642
ref: 14

GEAR,OUTPUT 2ND,30T

€ 58.50

15

131291148
ref: 15

GEAR,OUTPUT 3RD,26T

€ 52.50

16

131291149
ref: 16

GEAR,OUTPUT TOP,26T

€ 66.50

17

131291708
ref: 17

GEAR,OUTPUT 4TH,24T

€ 70.00

18

13144054
ref: 18
STD

SPROCKET-OUTPUT,15T

€ 30.00

18

131441058
ref: 18

SPROCKET-OUTPUT,14T

€ 20.00

18

13144053
ref: 18

SPROCKET-OUTPUT,13T

€ 30.00

19

92022146
ref: 19

WASHER,THRUST,18.5X23

€ 4.50

20

92022266
ref: 20

WASHER,T=2.3

€ 3.50

21

92024030
ref: 21

WASHER,TOOTHED,18.5X2

€ 4.00

22

920271595
ref: 22

COLLAR,ENGINE SPROCKE

€ 12.50

23

92030012
ref: 23

WASHER,CLAW,8X22X1.2

€ 3.50

24

92033014
ref: 24

RING-SNAP,16MM

€ 3.50

25

92055022
ref: 25

'O' RING

€ 4.00

all assemblies
