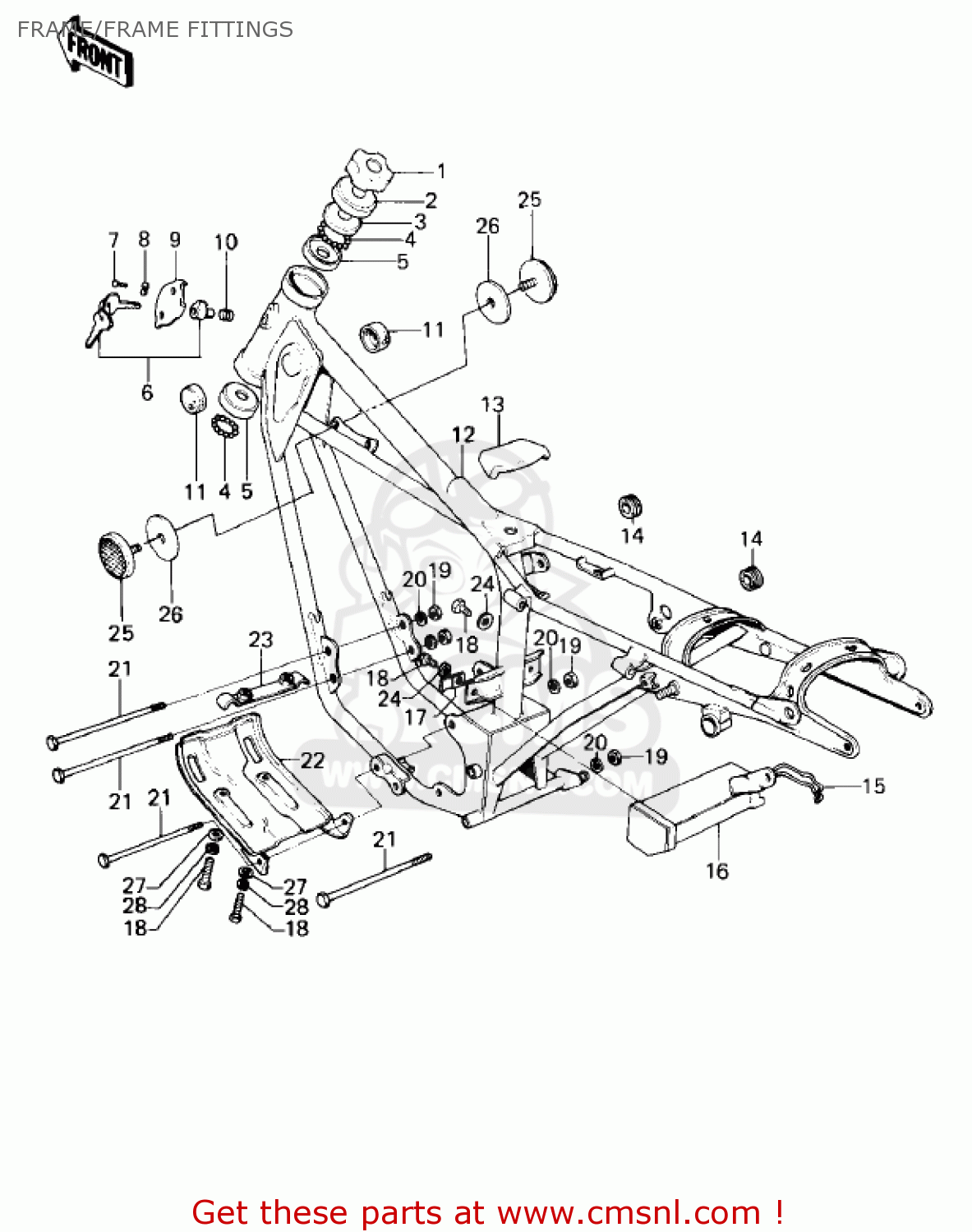

FRAME/FRAME FITTINGS

ref

part #

description

quantity

1

92090006
ref: 1

NUT-STEERING STEM LCK

€ 10.50

2

46098004
ref: 2

CAP-STEERING STEM

€ 4.00

3

92047005
ref: 3

CONE-UPPER BEARING

€ 10.50

4

600A0600
ref: 4

BALL-STEEL,3/16

€ 0.50

5

92048004
ref: 5

RACE-BEARING

€ 10.00

6

27016042
ref: 6

LOCK-ASSY,STEERING

€ 36.00

7

92008007
ref: 7

SCREW-TAPPING

€ 2.50

8

92097003
ref: 8

WASHER

€ 2.50

9

110121134
ref: 9

CAP,STEERING LOCK

€ 4.50

10

27032001
ref: 10

SPRING-STEERING LOCK

€ 3.50

11

92075101
ref: 11

DAMPER RUBBER-FL TANK

€ 4.00

12

32002137
ref: 12
KE100-A5/A6/A7

FRAME

€ 446.00

12

320021042
ref: 12
KE100-A8/A9

FRAME

€ 241.50

12

320021253
ref: 12
KE100-A10

FRAME,COMPLETE

€ 310.00

13

92075106
ref: 13

DAMPER,FUEL TANK

€ 10.00

14

92071056
ref: 14

GROMMET

€ 2.50

15

92079002
ref: 15

CLAMP,TOOL CASE

€ 8.00

16

32098018
ref: 16

CASE-TOOL

€ 51.00

17

92037070
ref: 17

CLAMP-BREATHER PIPE

€ 1.50

18

112B0614
ref: 18

BOLT-UPSET 6X14

€ 2.50

19

314B1000
ref: 19

NUT,10MM

€ 0.50

20

461F1000
ref: 20

WASHER-SPRING,10MM

€ 0.50

21

920011603
ref: 21

BOLT,FLANGED,10X115

€ 7.00

22

55011018
ref: 22

GUARD,ENGINE

€ 25.50

23

55016007
ref: 23

BRACKET,ENGINE GUARD

€ 12.50

24

411B0600
ref: 24

WASHER-PLAIN,6MM

€ 0.50

25

28012009
ref: 25

REFLECTOR-REFLEX,RR

€ 17.50

26

92094011
ref: 26

DAMPER,REFLECTOR

€ 3.00

27

410B0600
ref: 27

WASHER-PLAIN-SMALL,6M

€ 0.50

28

461F0600
ref: 28

WASHER-SPRING,6MM

€ 0.50

all assemblies
