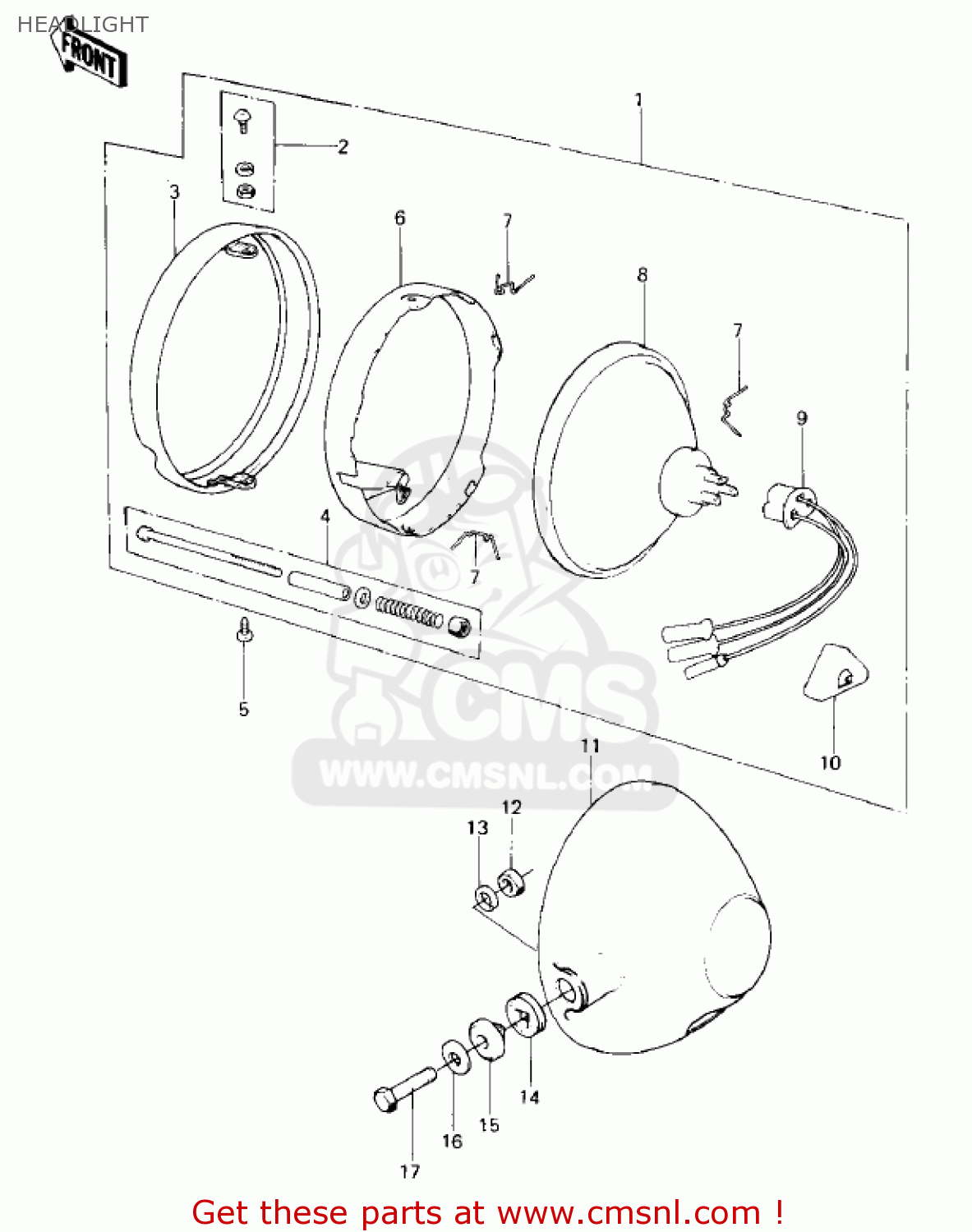

HEADLIGHT

ref

part #

description

quantity

1

23003024
ref: 1

LAMP UNIT,HEAD

€ 90.50

2

23013007
ref: 2

SCREW ASY,LENS UNIT

€ 3.50

3

23006042
ref: 3

RIM,HEAD LAMP

€ 43.00

4

230135001
ref: 4

SCREW ASSY,FOCUS AJST

€ 10.50

5

23019025
ref: 5

SCREW,PAN HEAD,5X14

€ 1.50

6

23072002
ref: 6

RETAINER,SEALED BEAM

€ 29.50

7

23009015
ref: 7

SPRING,HEAD LAMP LENS

€ 3.50

8

23007055
ref: 8
1

LENS-COMP,4020 MARK

€ 60.00

9

23008044
ref: 9
KE100-A5/A6

SOCKET-ASSY,HEAD LAMP

€ 15.00

9

23008044
ref: 9
KE100-A7/A8/A9/A10

SOCKET-ASSY,HEAD LAMP

€ 15.00

10

23081001
ref: 10

COVER,HD LAMP SOCKET

€ 6.50

11

2300504921
ref: 11

BODY,HEAD LAMP,BLACK

€ 56.00

12

314B1000
ref: 12

NUT,10MM

€ 0.50

13

461F1000
ref: 13

WASHER-SPRING,10MM

€ 0.50

14

23066011
ref: 14

DAMPER

€ 3.50

15

23052005
ref: 15

COLLAR,L=9.6

€ 8.50

16

411D1000
ref: 16

WASHER-PLAIN,10MM

€ 3.00

17

92007041
ref: 17

BOLT,HEX HEAD,10X30

€ 7.00

17

113N1028
ref: 17

BOLT,HEX HEAD,10X28

€ 2.50

all assemblies
