FRONT HUB/BRAKE
KE100-A5 KE100 1976 CANADA

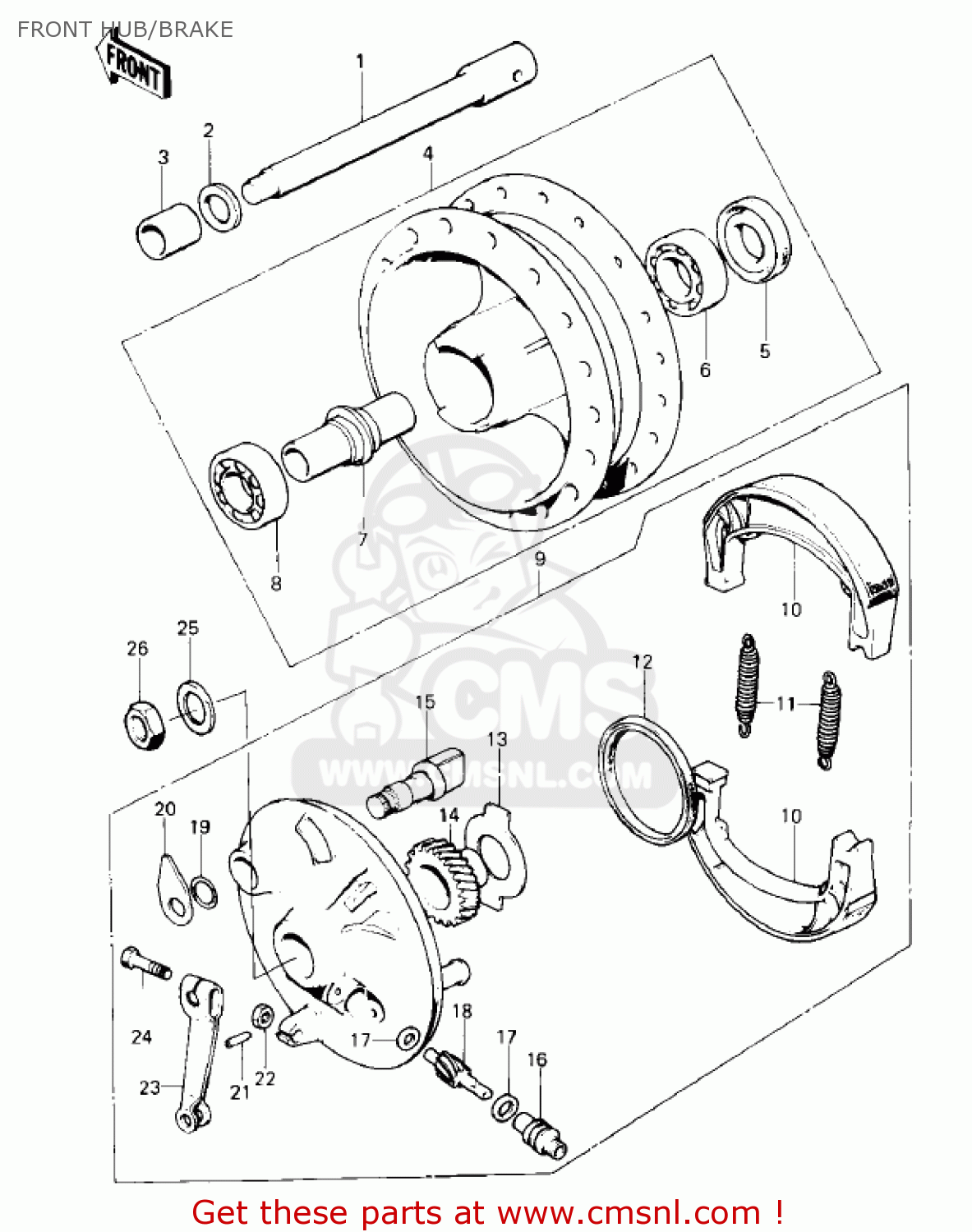

Front hub/brake diagram KE100-A5 KE100 1976 CANADA
FRONT HUB/BRAKE KE100-A5 KE100 1976 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
41068039
ref: 1
AXLE-FRONT
€ 20.00
2
41042002
ref: 2
KE100-A5/A6
DUST SHIELD-FRNT DRUM
€ 2.50
2
411B1000
ref: 2
KE100-A7/A8/A9/A10
WASHER-PLAIN,10MM
€ 0.50
3
41069002
ref: 3
KE100-A5/A6
COLLAR-FRONT HUB R.H
€ 4.00
3
41069026
ref: 3
KE100-A7/A8/A9/A10
COLLAR,L=13
€ 9.00
4
410341040
ref: 4
KE100-A5/A6
DRUM-ASSY,FR,BUFF FIN
€ 203.50
4
410341040
ref: 4
KE100-A7/A8/A9/A10
DRUM-ASSY,FR,BUFF FIN
€ 203.50
5
92050063
ref: 5
OIL SEAL,TC17317
€ 10.00
6
601B6200
ref: 6
BEARING-BALL,#6200C3
€ 11.50
7
41039002
ref: 7
COLLAR,L=51
€ 6.00
8
601B6300Z
ref: 8
BEARING-BALL,#6300ZC3
€ 18.50
9
4103507180
ref: 9
PANEL ASY,FR BRK,BUFF
€ 210.00
10
410481085
ref: 10
SHOE-BRAKE (NAS)
€ 13.00
11
920811766
ref: 11
SPRING,BRAKE SHOE
€ 5.50
12
92050002
ref: 12
OIL SEAL-BRAKE PANEL
€ 9.00
13
41064010
ref: 13
RECEIVER-SPEEDOMETER
€ 6.50
14
41059022
ref: 14
GEAR,SPEEDOMETER
€ 26.00
15
41050018
ref: 15
CAM-BRAKE
€ 18.00
16
41062005
ref: 16
BUSHING,SPEEDOMETER C
€ 12.00
17
41063001
ref: 17
WASHER-THRST SPD PINI
€ 3.00
18
41060004
ref: 18
KE100-A5/A6
PINION,SPEEDOMETER
€ 20.50
18
41060004
ref: 18
KE100-A7/A8/A9/A10
PINION,SPEEDOMETER
€ 20.50
19
92055004
ref: 19
RING-O,BRAKE CAM
€ 3.00
20
41085008
ref: 20
INDICATOR,BRAKE SHOE
€ 8.50
21
41082001
ref: 21
PIN-SPRING
€ 2.50
22
41072007
ref: 22
NUT,6MM
€ 2.50
23
41053005
ref: 23
LEVER-BRAKE CAM
€ 11.50
24
112G0630
ref: 24
BOLT-UPSET
€ 1.00
25
411B1000
ref: 25
WASHER-PLAIN,10MM
€ 0.50
26
42045005
ref: 26
NUT,10MM
€ 5.00
