CHASSIS ELECTRICAL EQUIPMENT
KE100-A10 KE100 1981 CANADA

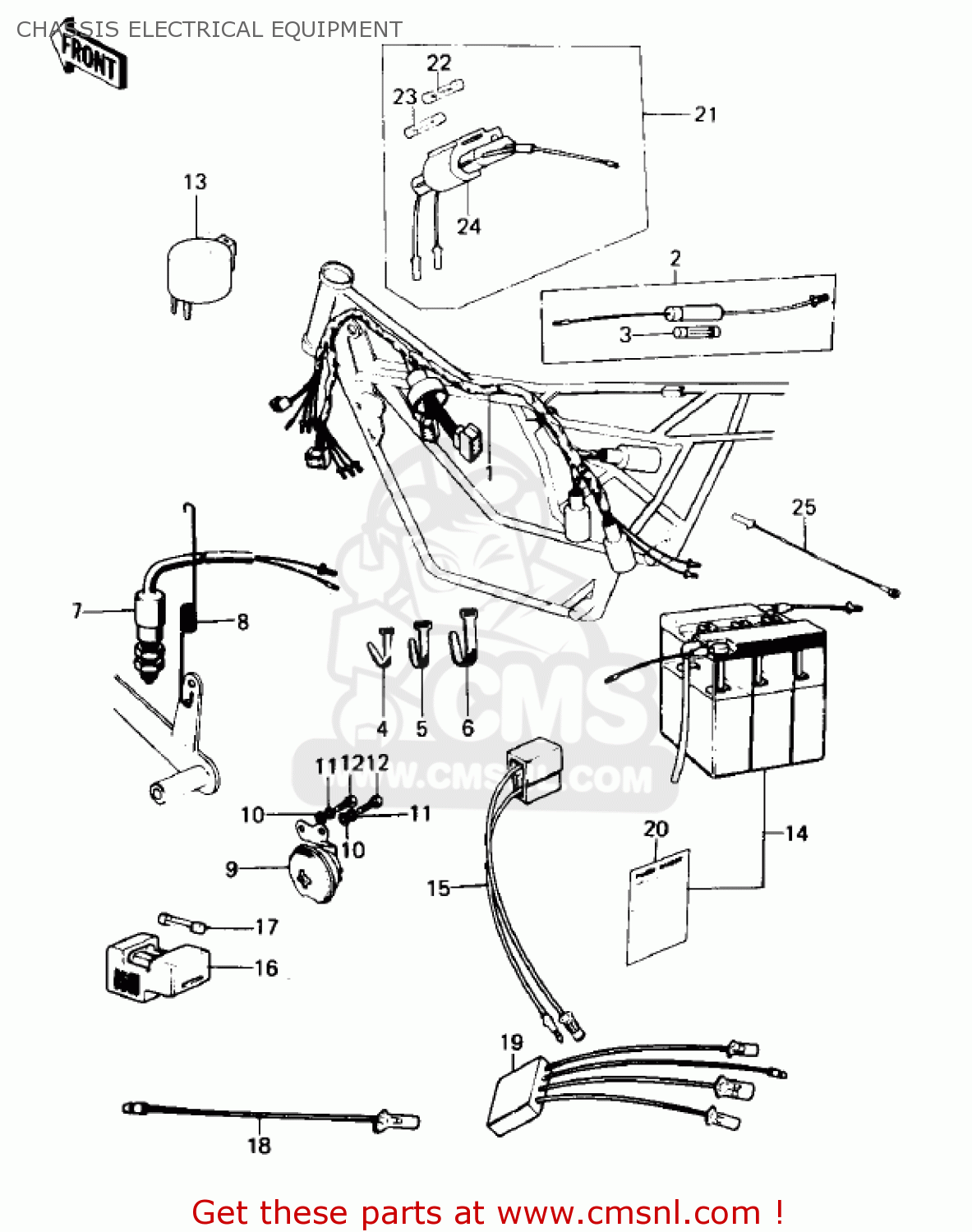

Chassis electrical equipment diagram KE100-A10 KE100 1981 CANADA
CHASSIS ELECTRICAL EQUIPMENT KE100-A10 KE100 1981 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
26001063
ref: 1
KE100-A5/A6/A7
WIRING HARNESS-MAIN
€ 68.50
1
260011046
ref: 1
KE100-A8/A9
WIRING HARNESS,MAIN
€ 68.50
1
260011223
ref: 1
KE100-A10
HARNESS
€ 69.50
2
26004017
ref: 2
KE100-A5/A6/A7
FUSE-ASSY
€ 10.00
3
26006003
ref: 3
KE100-A5/A6/A7
FUSE 10A
€ 3.00
4
92072030
ref: 4
BAND,SHORT
€ 3.00
5
92072031
ref: 5
BAND,MIDDLE
€ 3.00
6
92072032
ref: 6
BAND,LONG
€ 3.00
7
27010015
ref: 7
SWITCH,BRAKE LAMP
€ 23.00
8
27011011
ref: 8
SPRING,BRAKE LAMP SW
€ 5.50
9
27003059
ref: 9
HORN
€ 32.50
10
411B0600
ref: 10
WASHER-PLAIN,6MM
€ 0.50
11
461F0600
ref: 11
WASHER-SPRING,6MM
€ 0.50
12
112G0612
ref: 12
BOLT-UPSET
€ 2.50
13
27002013
ref: 13
RELAY-ASSY,TURN SIGNA
€ 27.00
14
K26012020
ref: 14
KE100-A5/A6/A7
BATTERY,YUA,6N4-2A-5
€ 55.50
14
K26012034
ref: 14
KE100-A8/A9/A10
BATTERY,YUA,6N6-1D-2
€ 78.00
15
26011074
ref: 15
KE100-A5/A6/A7
WIRE,RECTIFIER LEAD
€ 6.50
16
26016003
ref: 16
KE100-A5/A6/A7
HOLDER,SPARE FUSE
€ 8.50
17
26006003
ref: 17
KE100-A5/A6/A7
FUSE 10A
€ 3.00
18
26011094
ref: 18
KE100-A5/A6/A7
WIRE,LEAD
€ 1.50
19
26002056
ref: 19
KE100-A5/A6/A7
WIRING HARNESS,REAR
€ 6.00
20
560401036
ref: 20
WARNING, BATTERY
€ 2.00
21
260041010
ref: 21
KE100-A8/A9/A10
FUSE-ASSY
€ 19.50
22
260061002
ref: 22
KE100-A8/A9/A10
FUSE,10A,L=30M/M
€ 3.00
23
260061003
ref: 23
KE100-A8/A9/A10
FUSE,15A,L=30M/M
€ 3.00
24
920751044
ref: 24
KE100-A8/A9/A10
DAMPER,FUSE
€ 6.00
25
26011093
ref: 25
KE100-A8/A9/A10
WIRE-LEAD
€ 6.00
