SWINGARM
KDX80-C5 1988 USA CANADA

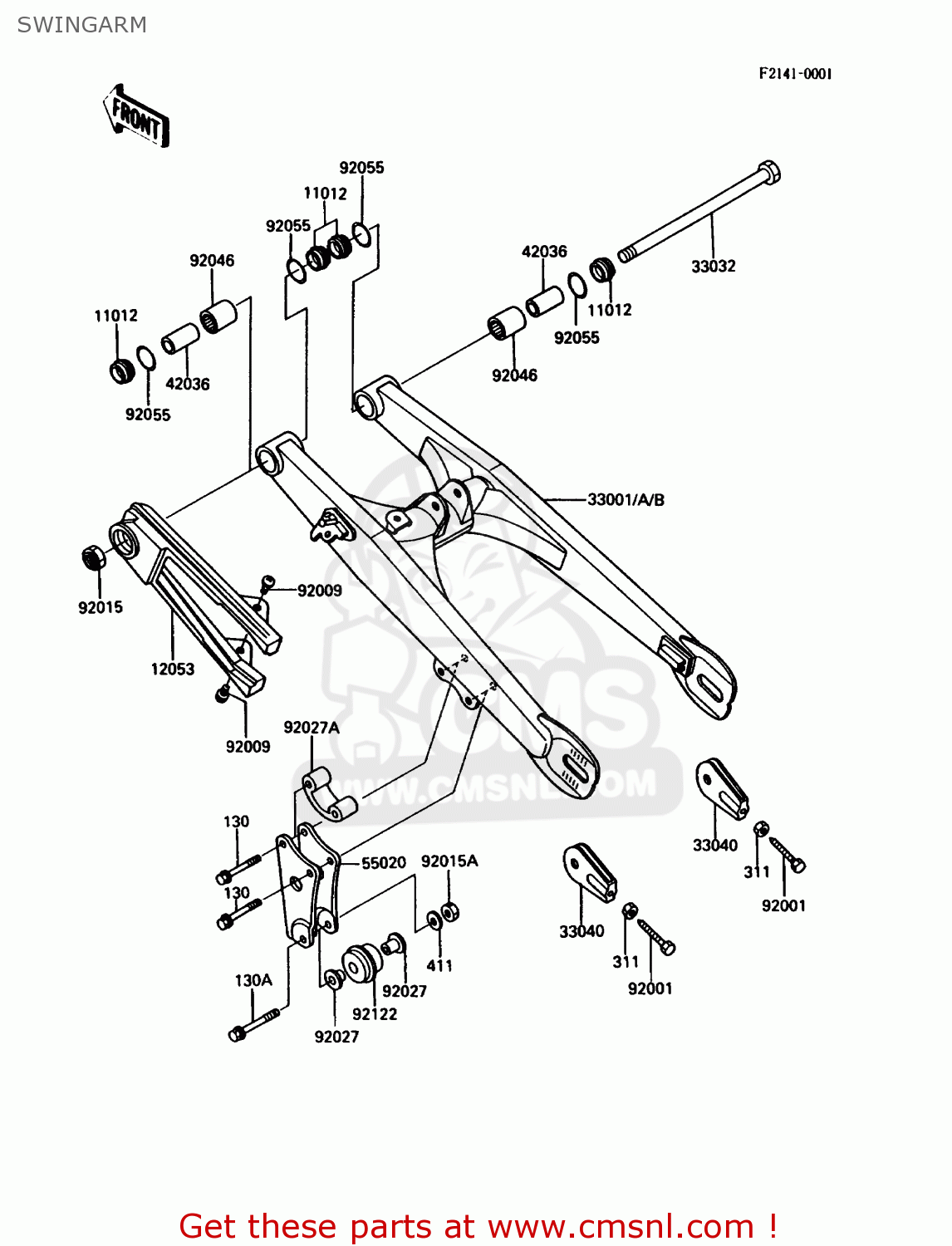

Swingarm diagram KDX80-C5 1988 USA CANADA
SWINGARM KDX80-C5 1988 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130G0645
ref: 130
BOLT,FLANGED,6X45
€ 0.50
130A
130G0650
ref: 130A
BOLT-FLANGED,6X50
€ 1.00
311
311B0600
ref: 311
NUT,6MM
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
11012
110121263
ref: 11012
CAP
€ 11.50
12053
120531074
ref: 12053
GUIDE-CHAIN,FR
€ 71.50
33001B
330011308X3
ref: 33001B
SWING ARM,COMPLETE,SILVER #15
€ 103.50
33032
330321031
ref: 33032
SHAFT-SWING ARM,PIVOT
€ 18.00
33040
330401055
ref: 33040
ADJUSTER-CHAIN
€ 7.00
42036
420361067
ref: 42036
SLEEVE,SWING ARM,L=34
€ 7.00
55020
550201163
ref: 55020
GUARD,CHAIN,RR
€ 22.00
92001
920011463
ref: 92001
BOLT,6X38
€ 3.00
92009
920091286
ref: 92009
SCREW,6X10
€ 2.50
92015
920151063
ref: 92015
NUT,12M/M
€ 4.50
92015A
92017014
ref: 92015A
NUT,LOCK,6MM
€ 4.00
92027
920271183
ref: 92027
COLLAR,6.5X10X14.1
€ 3.50
92027A
920271495
ref: 92027A
COLLAR,CHAIN GUIDE
€ 7.00
92046
920461046
ref: 92046
BEARING-NEEDLE
€ 28.50
92055
920551240
ref: 92055
RING-O,SWING ARM
€ 6.00
92122
921221030
ref: 92122
ROLLER,CHAIN GUIDE
€ 22.50
