Genuine KDX Kawasaki Parts delivered quickly!


CRANKCASE

KDX80-C5 1988 USA CANADA

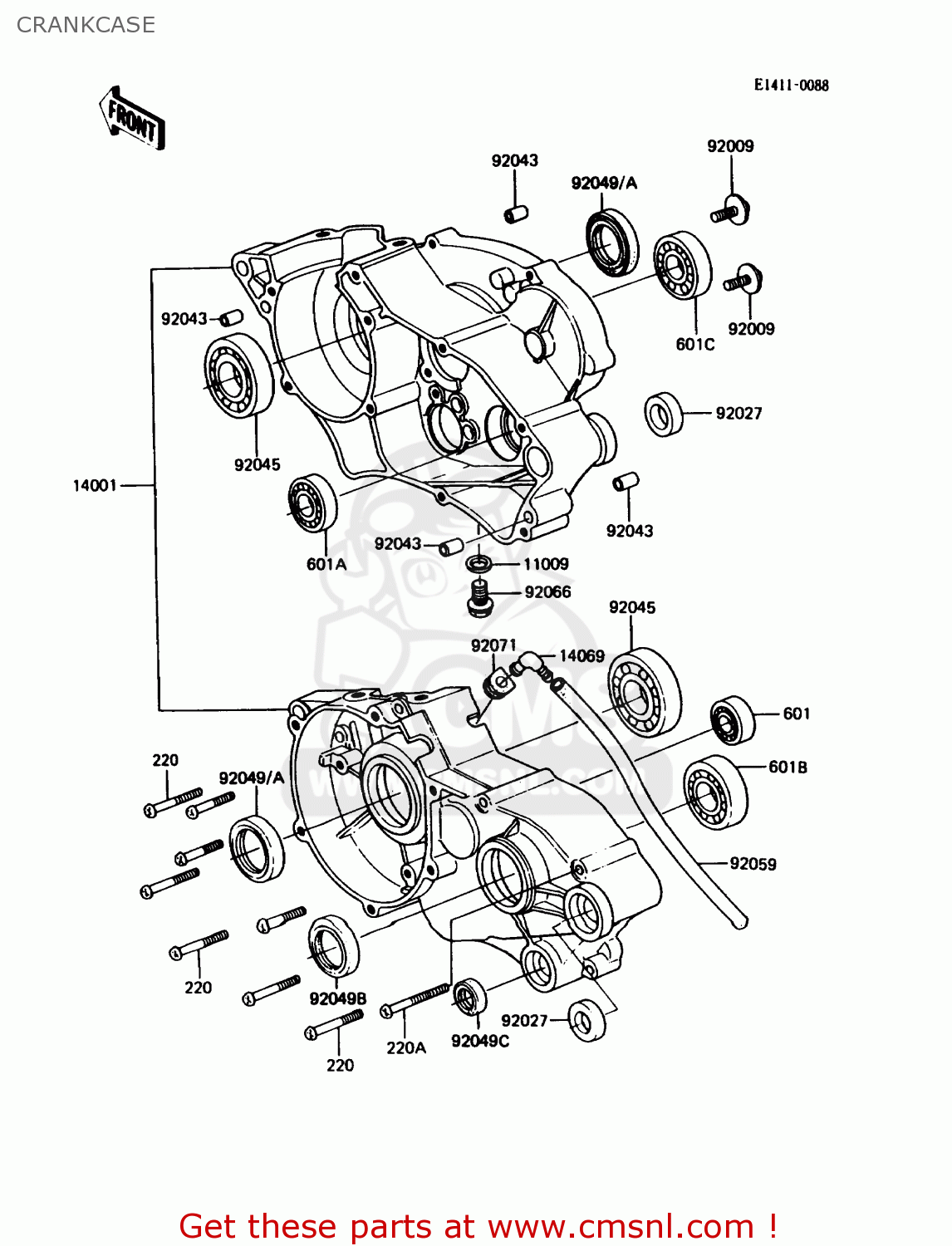

Crankcase diagram KDX80-C5 1988 USA CANADA

CRANKCASE KDX80-C5 1988 USA CANADA
CRANKCASE KDX80-C5 1988 USA CANADA
CRANKCASE KDX80-C5 1988 USA CANADA
prices are in EUR
ref
part #
description
quantity
220
220B0635
ref: 220
SCREW-PAN HEAD,6X35
220B0635
€ 1.00
220A
220B0660
ref: 220A
SCREW-PAN HEAD,6X60
220B0660
€ 2.50
601
601A6001
ref: 601
BEARING-BALL
601A6001
€ 9.00
601A
601A6002
ref: 601A
BEARING-BALL,#6002
601A6002
€ 9.50
601B
601A6004
ref: 601B
BEARING-BALL,#6004
601A6004
€ 13.00
601C
601A6203
ref: 601C
BEARING-BALL,#6203
601A6203
€ 10.50
11009
92065058
ref: 11009
GASKET, 10,5X16X1 (NAS)
92065058
€ 2.50
14001
140015156
ref: 14001
SET-CRANKCASE
€ 306.50
14069
14069002
ref: 14069
BREATHER
14069002
€ 17.50
92009
920091103
ref: 92009
SCREW,6X15
€ 2.50
92027
920271744
ref: 92027
COLLAR,12.1X26X6
920271744
€ 7.50
92043
92042007
ref: 92043
PIN-DOWEL
92042007
€ 4.00
92045
920451059
ref: 92045
BEARING-BALL,R-6304C3
920451059
€ 29.00
92049A
920491188
ref: 92049A
SEAL-OIL,SD20407GS
920491188
€ 12.00
92049B
92050013
ref: 92049B
OIL SEAL SC25376
92050013
€ 9.50
92049C
92051005A
ref: 92049C
OIL SEAL,TB13225.5
92051005A
€ 5.50
92059
920591074
ref: 92059
TUBE,6X9X280
€ 9.00
92066
920661033
ref: 92066
PLUG,DRAIN,10X14
920661033
€ 4.00
92071
92071042
ref: 92071
GROMMET
92071042
€ 2.50
