CRANKSHAFT/PISTON(S)
KDX80-C3 1986 USA CANADA

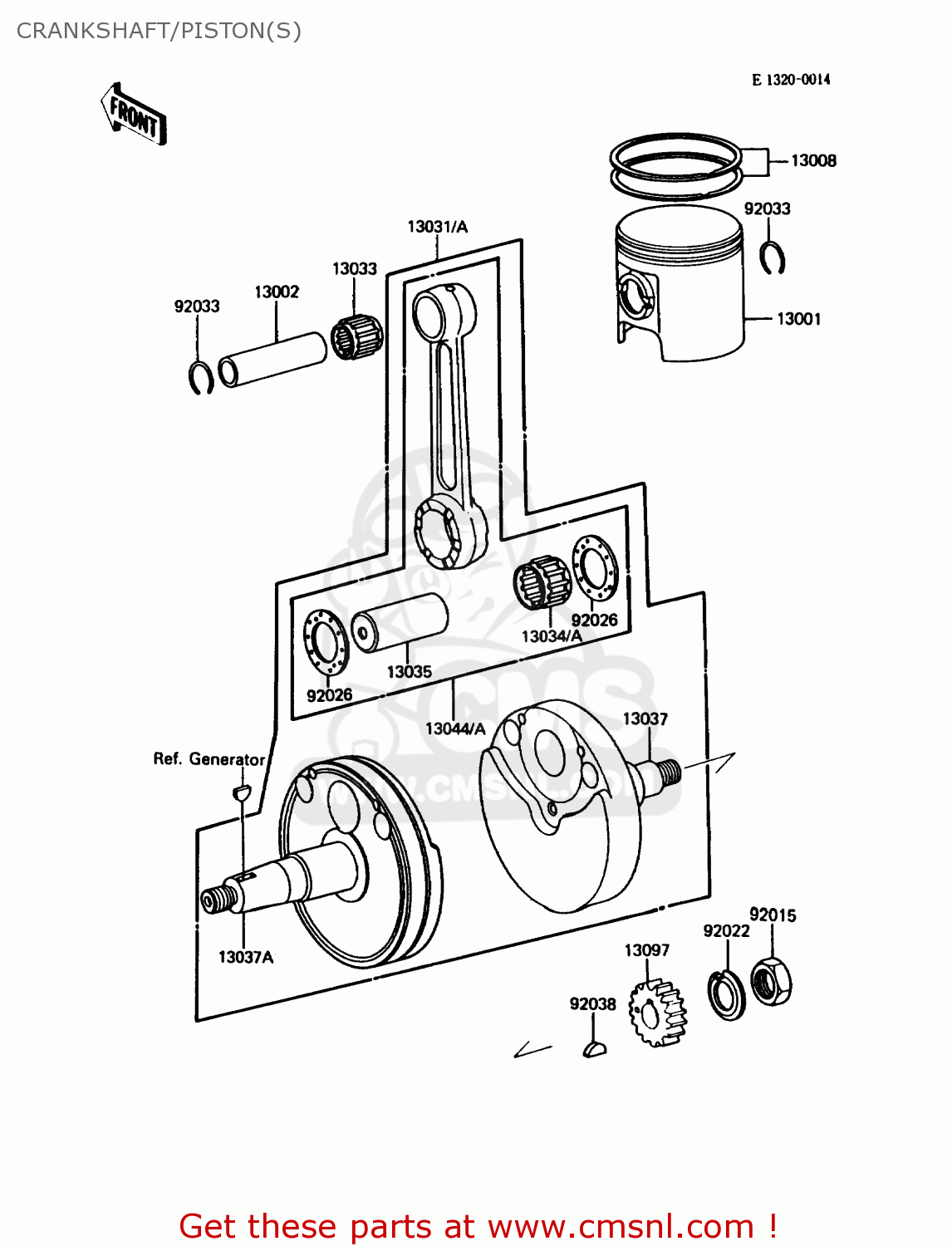

Crankshaft/piston(s) diagram KDX80-C3 1986 USA CANADA
CRANKSHAFT/PISTON(S) KDX80-C3 1986 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13001
130011184
ref: 13001
PISTON-ENGINE B
€ 30.00
13002
130021024
ref: 13002
PIN-PISTON
€ 11.00
13008
130085052
ref: 13008
RING-SET-PISTON
€ 35.50
13031A
130311206
ref: 13031A
CRANKSHAFT-COMP
€ 244.00
13033
130331003
ref: 13033
BEARING-NEEDLE,14R181
€ 21.00
13034A
130341072
ref: 13034A
BEARING-BIG END,H22X2
€ 35.00
13035
130351054
ref: 13035
PIN-CRANK
€ 23.50
13037
130371120
ref: 13037
CRANKSHAFT,RH
€ 142.50
13037A
130371205
ref: 13037A
CRANKSHAFT,LH
€ 142.00
13044A
130445053
ref: 13044A
SET-CONNECTING ROD
€ 82.50
13097
130971055
ref: 13097
GEAR-PRIMARY SPUR,22T
€ 45.00
92015
92015006
ref: 92015
NUT,12MM
€ 3.50
92022
92024003
ref: 92022
WASHER,CLAW,12.5X25X0
€ 2.50
92026
92026011
ref: 92026
SPACER,22.5X37X1.0
€ 6.50
92033
92036003
ref: 92033
CIRCLIP-PISTON PIN
€ 0.50
92038
92038003
ref: 92038
WOODRUFF KEY-PRY PINI
€ 1.50
