CARBURETOR(KDX80-C1/C2/C3)
KDX80-C3 1986 USA CANADA

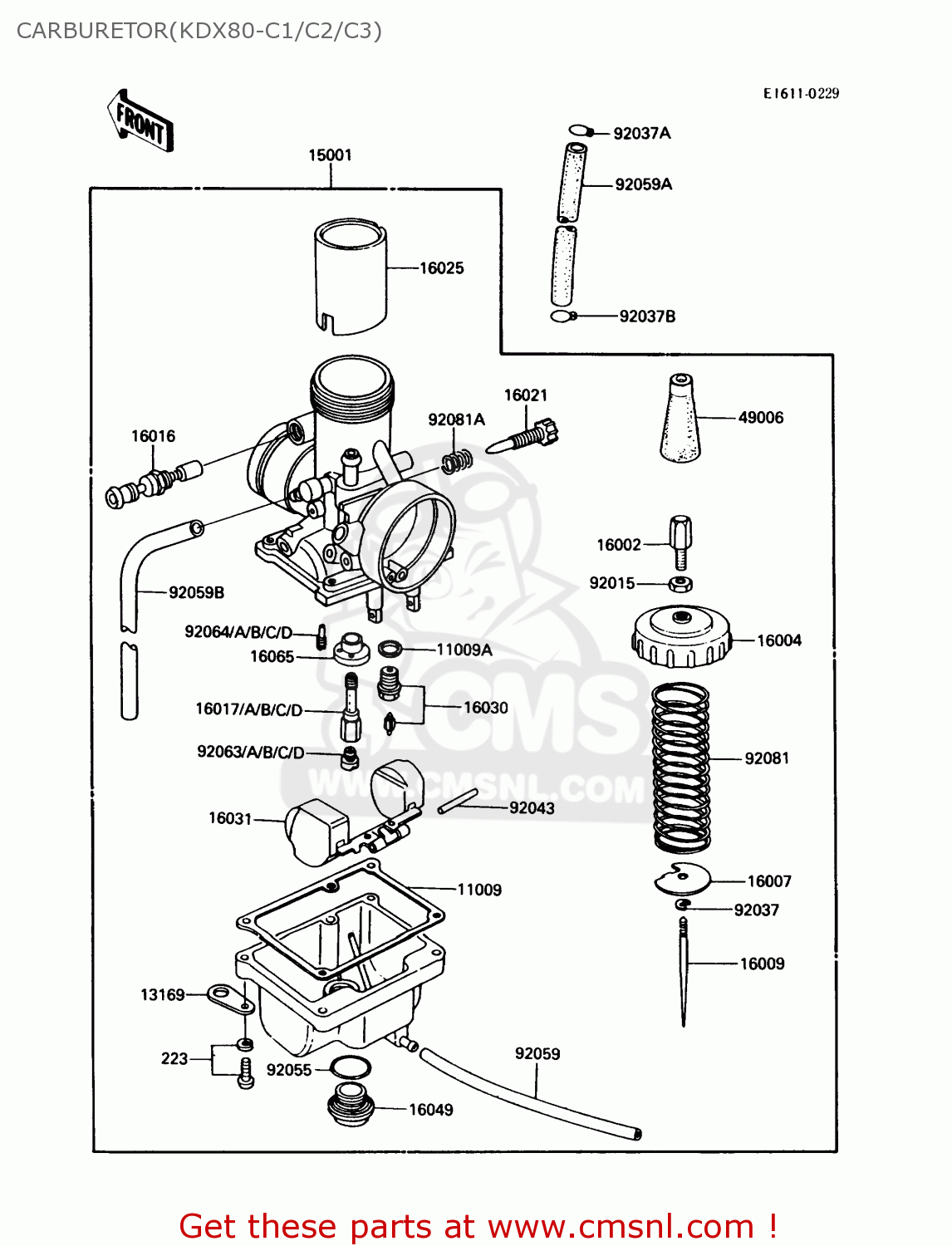

Carburetor(kdx80-c1/c2/c3) diagram KDX80-C3 1986 USA CANADA
CARBURETOR(KDX80-C1/C2/C3) KDX80-C3 1986 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091147
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 6.50
11009A
16029004
ref: 11009A
WASHER-FLOAT VLV SEAT
€ 2.50
13169
131691226
ref: 13169
PLATE,TUBE CLAMP
€ 5.00
15001
160011926
ref: 15001
CARBURETOR
€ 139.00
16002
16002017
ref: 16002
ADJUSTER-CABLE
€ 8.00
16004
16004025
ref: 16004
CAP,MIXING CHAMBER
€ 23.50
16007
16007023
ref: 16007
SPRING SEAT,THRTL VL
€ 7.00
16009
160091220
ref: 16009
NEEDLE-JET,5I14
€ 28.00
16016
160161052
ref: 16016
PLUNGER,STARTER
€ 31.50
16017
160171228
ref: 16017
JET-NEEDLE,O-6
€ 29.50
16017A
160171229
ref: 16017A
JET-NEEDLE,P-0
€ 26.50
16017B
160171230
ref: 16017B
JET-NEEDLE,O-8
€ 26.50
16017C
160171231
ref: 16017C
JET-NEEDLE,O-4
€ 26.50
16017D
160171232
ref: 16017D
JET-NEEDLE,O-2
€ 26.50
16021
160211104
ref: 16021
SCREW-THROTTLE STOP
€ 12.50
16025
160251107
ref: 16025
VALVE-THROTTLE,CA2.0
€ 77.50
16030
160301004
ref: 16030
VALVE-FLOAT,#2.6
€ 30.50
16031
160311005
ref: 16031
FLOAT
€ 39.00
16049
160491001
ref: 16049
COVER,MAIN JET
€ 18.00
16065
160651020
ref: 16065
HOLDER,NEEDLE JET
€ 12.50
49006
16036007
ref: 49006
BOOT,CABLE ADJUSTER
€ 10.50
92015
16003006
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
€ 4.50
92037B
920371712
ref: 92037B
CLAMP
€ 3.00
92043
16032003
ref: 92043
FLOAT PIN
€ 4.00
92055
920551061
ref: 92055
ORING,MAIN JET COVR
€ 5.50
92059
920591018
ref: 92059
TUBE,3X5X300
€ 6.00
92059A
920591129
ref: 92059A
TUBE,5.3X10.5X150
€ 12.50
92059B
920591430
ref: 92059B
TUBE,3X5X320
€ 5.50
92063
92063021
ref: 92063
JET-MAIN,#190
€ 9.50
92063A
92063022
ref: 92063A
JET-MAIN,#200
€ 9.50
92063B
92063023
ref: 92063B
JET-MAIN,#210
€ 9.50
92063C
92063024
ref: 92063C
JET-MAIN,#220
€ 11.00
223
223B0416
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
92063D
92063025
ref: 92063D
JET-MAIN,#230
€ 10.50
92064
920641023
ref: 92064
JET-PILOT,#35
€ 12.50
92064A
920641030
ref: 92064A
JET-PILOT,#30
€ 12.00
92064B
920641038
ref: 92064B
JET-PILOT,#25
€ 12.00
92064C
920641060
ref: 92064C
JET,PILOT,#45
€ 8.00
92064D
920641104
ref: 92064D
JET-PILOT,#40
€ 13.50
92081
16006023
ref: 92081
SPRING,THROTTLE VALV
€ 10.00
92081A
16022005
ref: 92081A
SPRING-THR STOP SCREW
€ 5.50
