FRAME/FRAME FITTINGS
KDX80-B3 KDX80 1983 USA CANADA

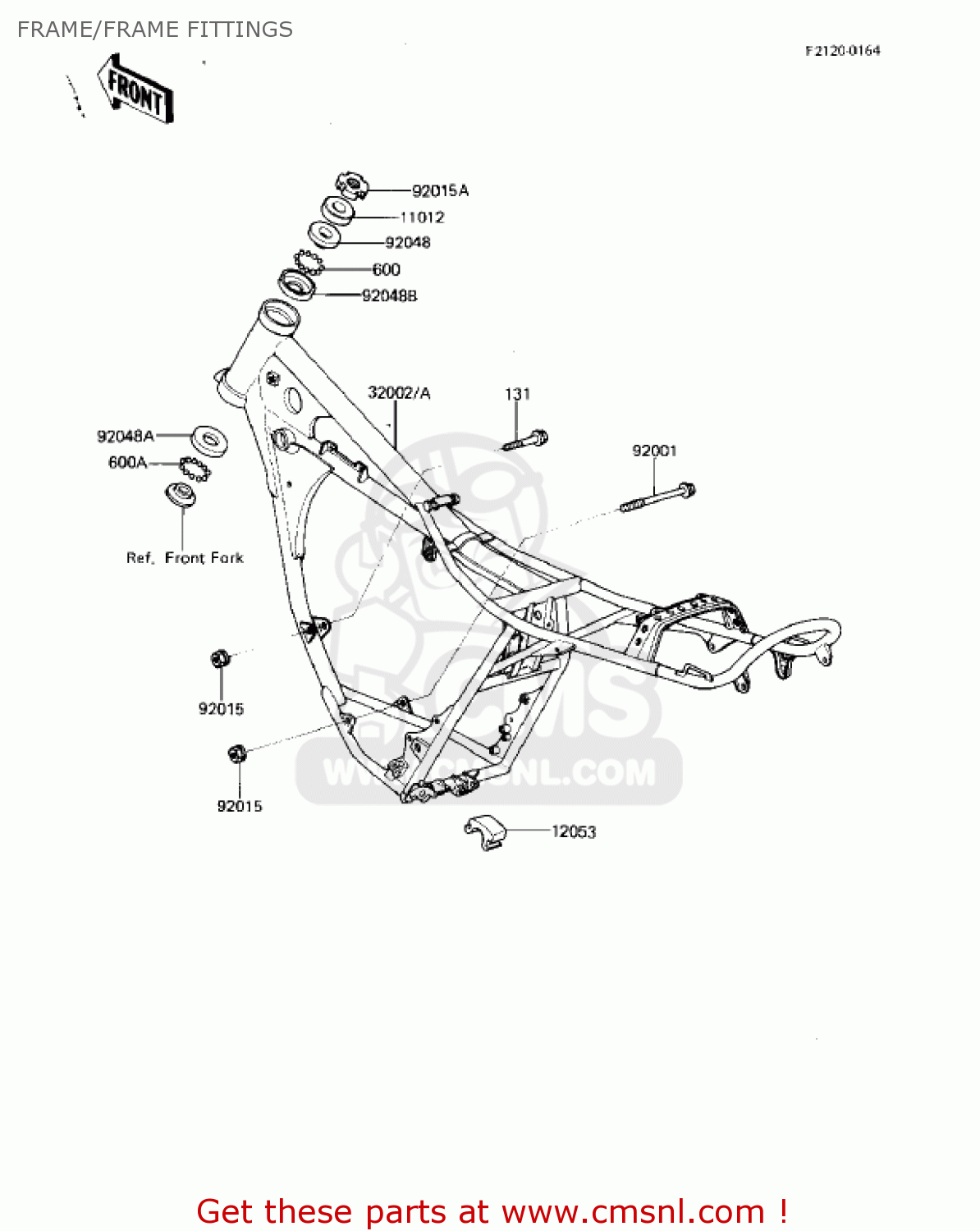

Frame/frame fittings diagram KDX80-B3 KDX80 1983 USA CANADA
FRAME/FRAME FITTINGS KDX80-B3 KDX80 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
46098018
ref: 11012
CAP,STEERING STEM
€ 4.00
12053
120531052
ref: 12053
GUIDE,CHAIN
€ 6.00
32002
320021263
ref: 32002
FRAME,COMPLETE
€ 276.00
32002A
320021562
ref: 32002A
FRAME,COMPLETE
€ 338.00
92001
920011367
ref: 92001
BOLT,ENGINE MOUNT
€ 4.50
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92015A
92090022
ref: 92015A
NUT,STEERING LOCK,25M
€ 18.50
92048
92047014
ref: 92048
RACE,STEERING STEM BE
€ 12.50
92048A
92048005
ref: 92048A
RACE-STEERING BEARING
€ 11.50
92048B
92048009
ref: 92048B
RACE,STRG STM
€ 14.00
131
131G0860
ref: 131
BOLT.8X60
€ 1.00
600
600A0600
ref: 600
BALL-STEEL,3/16
€ 0.50
600A
600A0800
ref: 600A
BALL-STEEL,1/4
€ 0.50
