CARBURETOR
KDX80-B3 KDX80 1983 USA CANADA

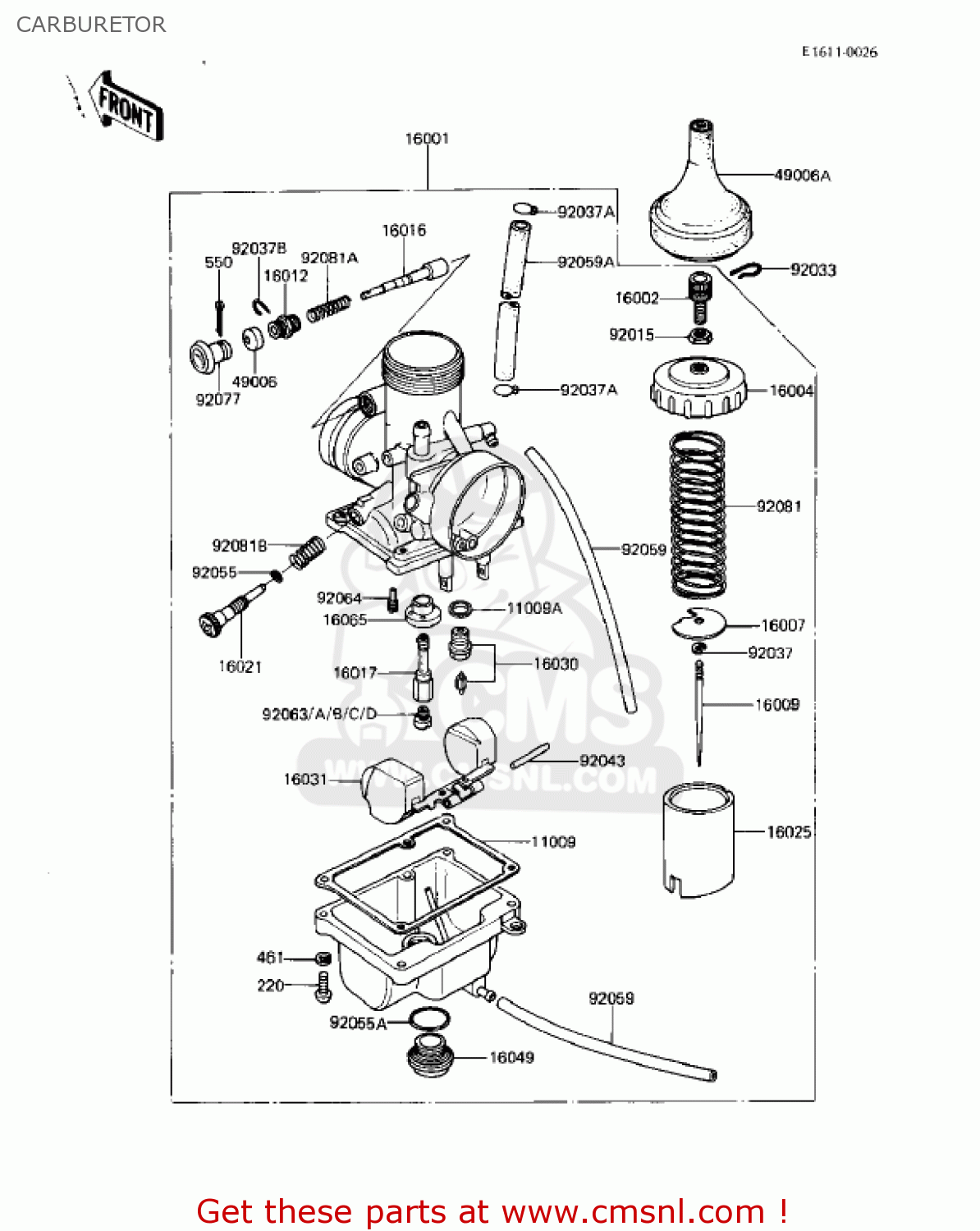

Carburetor diagram KDX80-B3 KDX80 1983 USA CANADA
CARBURETOR KDX80-B3 KDX80 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091147
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 6.50
11009A
16029004
ref: 11009A
WASHER-FLOAT VLV SEAT
€ 2.50
16001
160011461
ref: 16001
CARBURETOR
€ 103.00
16002
16002011
ref: 16002
CABLE ADJUSTER
€ 9.50
16004
16004025
ref: 16004
CAP,MIXING CHAMBER
€ 23.50
16007
16007023
ref: 16007
SPRING SEAT,THRTL VL
€ 7.00
16009
160091057
ref: 16009
NEEDLE-JET,5EJ25
€ 28.00
16012
16012021
ref: 16012
CAP-STARTER PLUNGER
€ 11.50
16016
160161004
ref: 16016
PLUNGER,STARTER
€ 32.50
16017
160171054
ref: 16017
JET,NEEDLE,#0-4
€ 25.00
16021
160211042
ref: 16021
SCREW-THROTTLE STOP
€ 11.50
16025
160251028
ref: 16025
VALVE-THROTTLE,CA1.5
€ 77.50
16030
160301004
ref: 16030
VALVE-FLOAT,#2.6
€ 30.50
16031
160311005
ref: 16031
FLOAT
€ 39.00
16049
160491001
ref: 16049
COVER,MAIN JET
€ 18.00
16065
160651020
ref: 16065
HOLDER,NEEDLE JET
€ 12.50
49006
16036012
ref: 49006
BOOT,STARTER PLUNGER
€ 4.50
49006A
490061024
ref: 49006A
BOOT,CARBURETOR
€ 4.50
92015
16003006
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92033
92036018
ref: 92033
CIRCLIP
€ 2.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92037A
92037072
ref: 92037A
CLAMP,TUBE
€ 4.00
92037B
920371077
ref: 92037B
CLAMP
€ 3.00
92043
16032003
ref: 92043
FLOAT PIN
€ 4.00
92055
92055044
ref: 92055
'O' RING
€ 7.00
92055A
920551061
ref: 92055A
ORING,MAIN JET COVR
€ 5.50
92059
920591755
ref: 92059
TUBE,3X5X300
€ 6.00
92059A
920591023
ref: 92059A
HOSE,FUEL TAP DIAPHRA
€ 17.00
92063
92063057
ref: 92063
MAIN JET,#130R
€ 9.50
92063A
92063103
ref: 92063A
MAIN JET,#132.5R
€ 8.50
92063B
92063104
ref: 92063B
JET-MAIN,#135R
€ 8.50
92063C
920631087
ref: 92063C
JET-MAIN,#A137.5
€ 11.50
92063D
92063116
ref: 92063D
JET-MAIN,#140R
€ 8.50
92064
920641038
ref: 92064
JET-PILOT,#25
€ 12.00
92077
920771009
ref: 92077
KNOB,STARTER PLUNGER
€ 6.00
92081
16006023
ref: 92081
SPRING,THROTTLE VALV
€ 10.00
92081A
16013011
ref: 92081A
SPRING,STARTER PLUNGR
€ 6.00
92081B
920811152
ref: 92081B
SPRING,THROTTLE ADJST
€ 4.00
220
220B0416
ref: 220
SCREW-PAN-CROS
€ 2.00
461
461F0400
ref: 461
WASHER-SPRING,4MM
€ 0.50
550
550D1615
ref: 550
PIN-COTTER,1.6X15
€ 1.50
