GEAR CHANGE MECHANISM

KDX80-A2 KDX80 1981 AUSTRIA

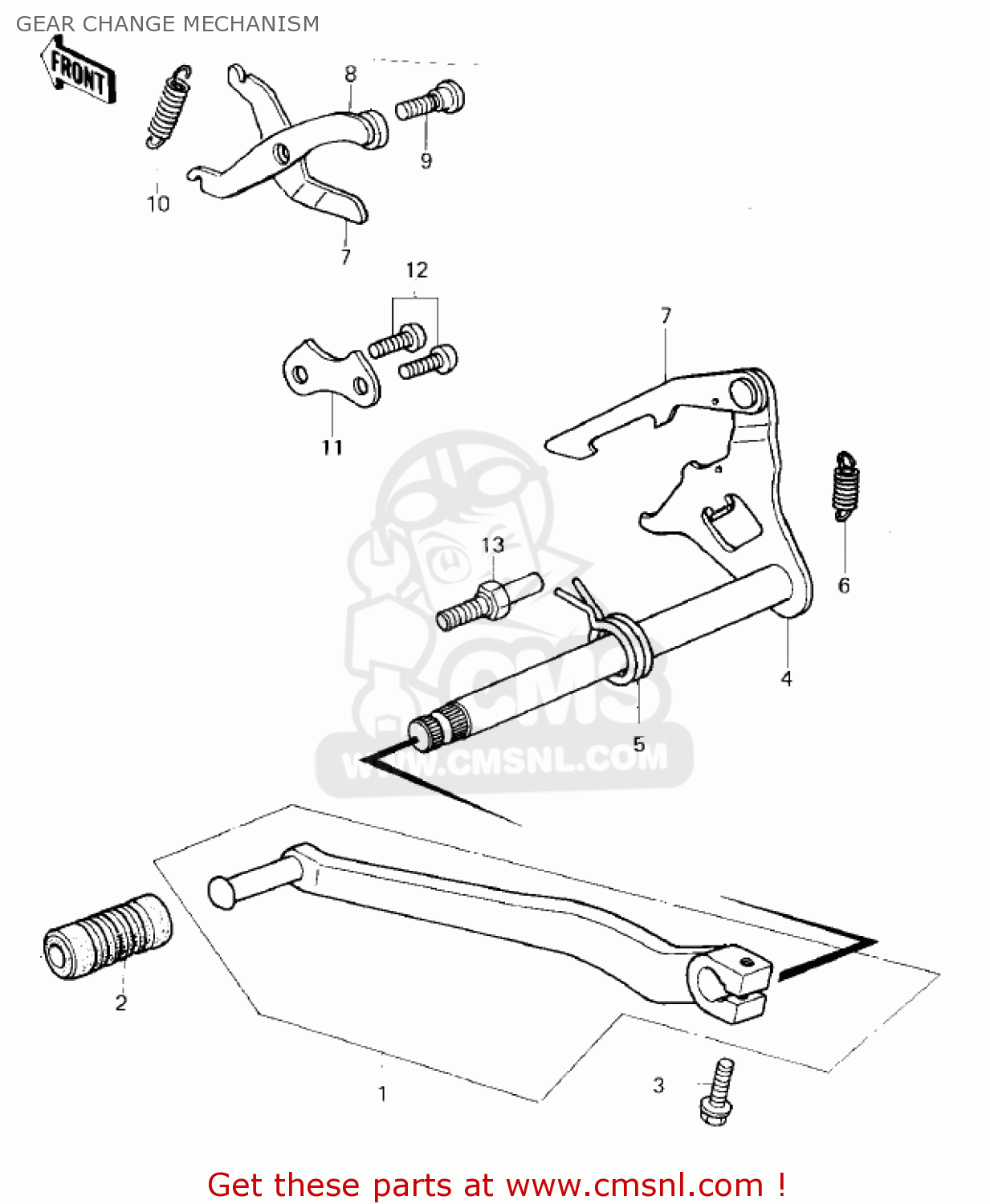

Gear change mechanism diagram KDX80-A2 KDX80 1981 AUSTRIA

prices are in EUR

ref

part #

description

quantity

131561018
ref: 1

PEDAL ASSY,GEAR CHANG

€ 41.00

921601108
ref: 2

DAMPER,CHANGE PEDAL

€ 5.50

920011352
ref: 3

BOLT,FLANGED,6X22

€ 2.50

131611010
ref: 4

LEVER-COMP-CHANGE SHA

€ 75.50

920811129
ref: 5

SPRING,TENTION

€ 6.50

92081156
ref: 6

SPRING,CHANGE LEVER

€ 4.00

131681038
ref: 7

LEVER,GEAR SET

€ 6.00

132361009
ref: 8

LEVER,NEUTRAL

€ 5.50

92011023
ref: 9

SCREW-PAN HEAD

€ 2.50

920811109
ref: 10

SPRING,CHANGE LEVER

€ 3.00

131691132
ref: 11

PLATE,CHANGE DRUM

€ 1.50

220B0614
ref: 12

SCREW-PAN HEAD,6X14

€ 2.00

920011401
ref: 13

BOLT,RETURN SPRING

€ 3.00
