FRONT FORK
KDX50-A2 KDX50 2004 USA CANADA

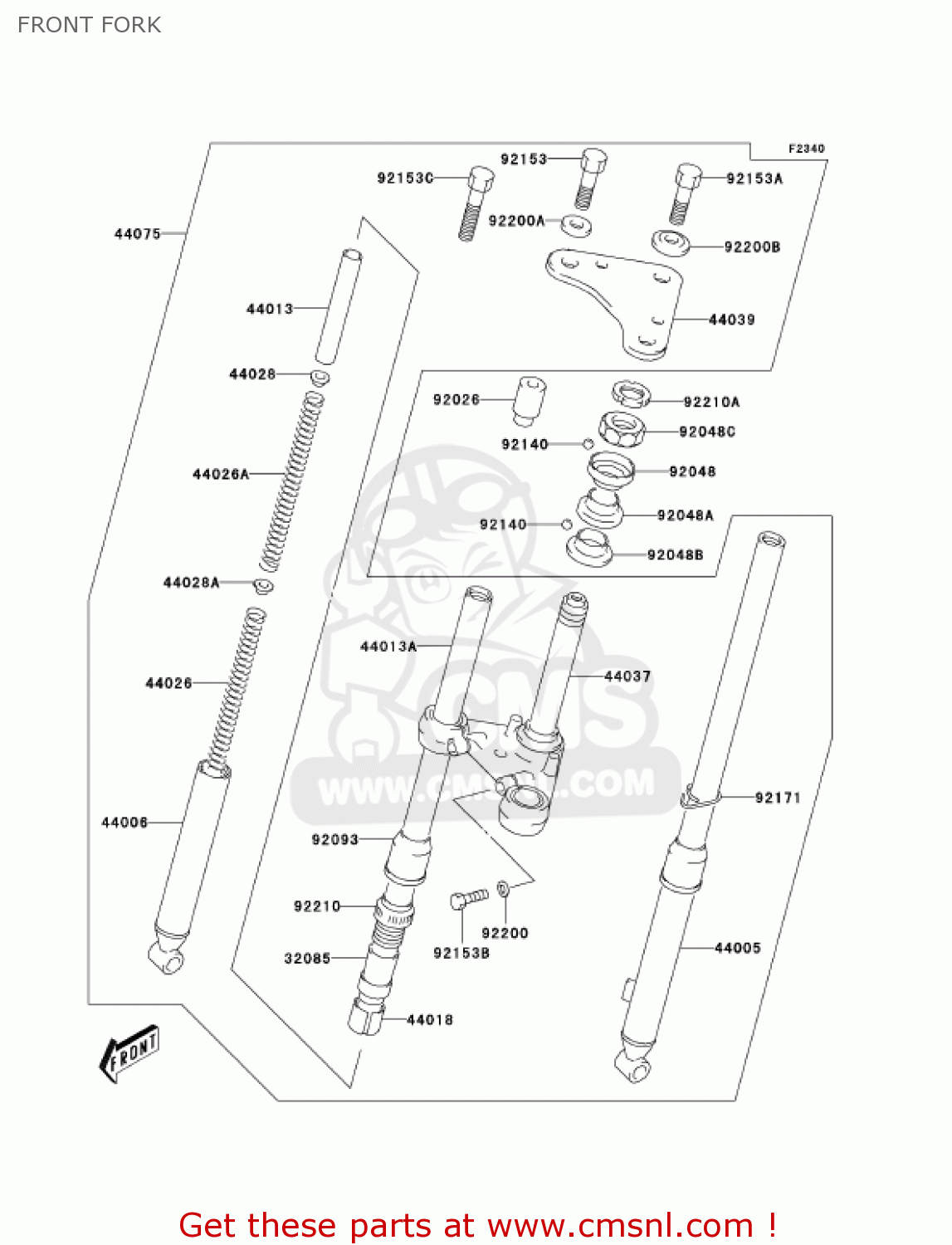

Front fork diagram KDX50-A2 KDX50 2004 USA CANADA
FRONT FORK KDX50-A2 KDX50 2004 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
32085
32085S013
ref: 32085
STOPPER
€ 1.50
44005
44005S007530
ref: 44005
PIPE-LEFT FORK OUTER,
€ 31.00
44006
44006S007530
ref: 44006
PIPE-RIGHT FORK OUTER
€ 31.00
44013
44013S004
ref: 44013
PIPE-FORK INNER
€ 2.50
44013
44013S005
ref: 44013
PIPE-FORK INNER
€ 23.50
44018
44018S003
ref: 44018
PISTON-FORK
€ 5.50
44026
44026S007
ref: 44026
SPRING-FRONT FORK
€ 8.50
44026
44026S008
ref: 44026
SPRING-FRONT FORK
€ 8.50
44028
44028S001
ref: 44028
GUIDE-FORK SPRING
€ 2.50
44028
44028S002
ref: 44028
GUIDE-FORK SPRING
€ 2.50
44037
44037S004
ref: 44037
HOLDER-FORK UNDER
€ 46.50
44039
44039S003
ref: 44039
HOLDER-FORK UPPER
€ 15.00
44075
44075S001530
ref: 44075
DAMPER-SET-FORK,SILVE
€ 211.50
92026
92026S110
ref: 92026
SPACER,FRONT FORK
€ 6.00
92048
92048S006
ref: 92048
RACE,STEERING INNER,U
€ 3.00
92048
92048S007
ref: 92048
RACE,STEERING INNER,L
€ 6.00
92048
92048S008
ref: 92048
RACE,STEARING OUTER,L
€ 5.50
92048
92048S009
ref: 92048
RACE,STEERING OUTER,U
€ 6.50
92093
92093S043
ref: 92093
SEAL
€ 6.00
92140
92140S004
ref: 92140
BALL,STEERING
€ 1.00
92153
92153S309
ref: 92153
BOLT
€ 2.50
92153
92153S310
ref: 92153
BOLT
€ 2.50
92153
92153S322
ref: 92153
BOLT
€ 2.00
92153
92153S323
ref: 92153
BOLT,FRONT FORK
€ 2.50
92171
92171S104
ref: 92171
CLAMP
€ 2.50
92200
92200S124
ref: 92200
WASHER
€ 1.50
92200
92200S175
ref: 92200
WASHER,36X10.5X2.3
€ 3.50
92200
92200S176
ref: 92200
WASHER,33.5X10.5X4.2
€ 2.00
92210
92210S114
ref: 92210
NUT
€ 9.00
92210
92210S115
ref: 92210
NUT,STEERING STEM
€ 2.00
