CRANKSHAFT
KDX50-A2 KDX50 2004 USA CANADA

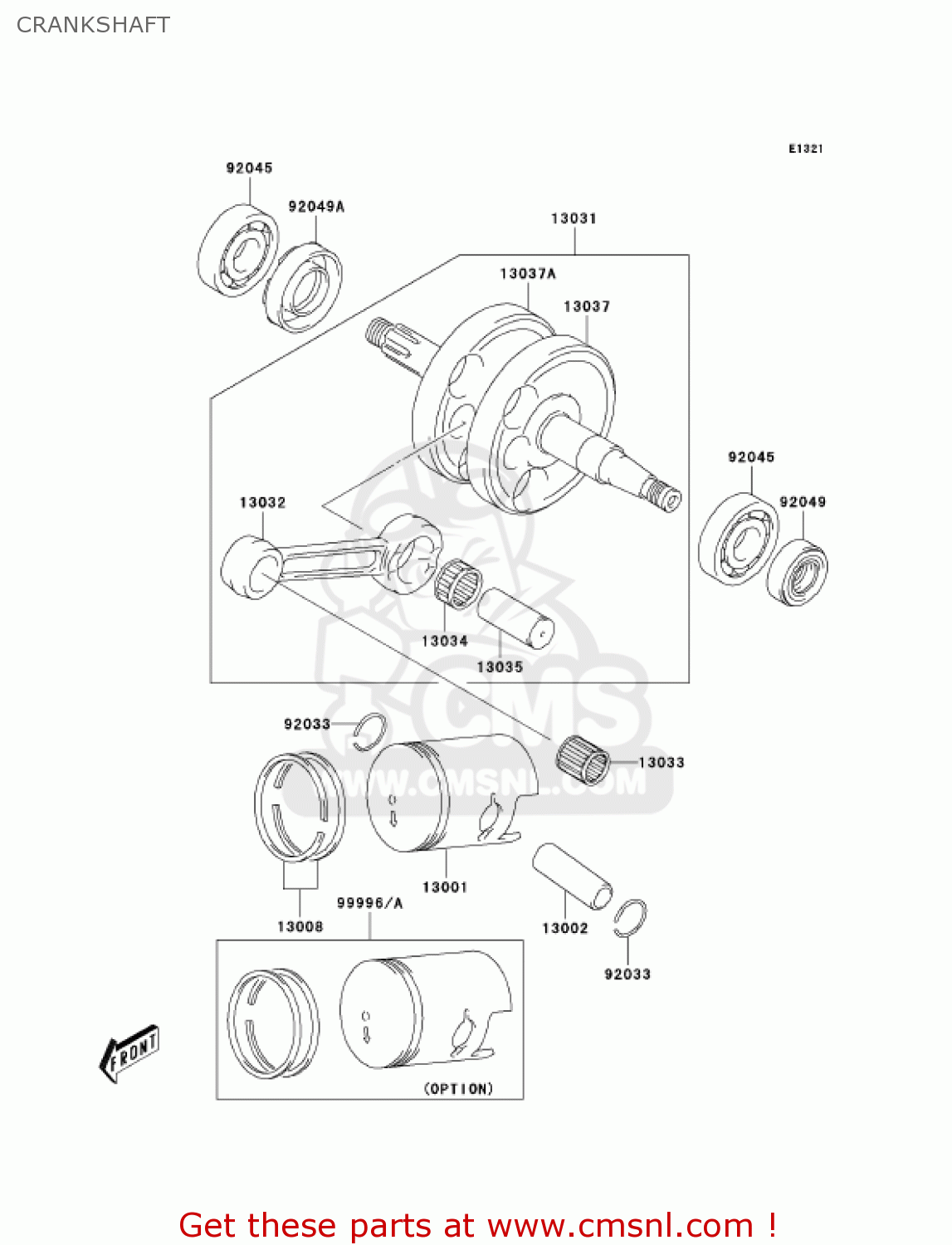

Crankshaft diagram KDX50-A2 KDX50 2004 USA CANADA
CRANKSHAFT KDX50-A2 KDX50 2004 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13001
13001S004
ref: 13001
PISTON-ENGINE
€ 74.00
13002
13002S004
ref: 13002
PIN-PISTON,PISTON
€ 11.50
13008
13008S004
ref: 13008
RING-SET-PISTON,STD
€ 34.00
13031
13031S007
ref: 13031
CRANKSHAFT-COMP
€ 166.50
13032
13032S004
ref: 13032
ROD-CONNECTING
€ 59.00
13033
13033S001
ref: 13033
BEARING-SMALL END
€ 9.00
13034
13034S004
ref: 13034
BEARING-BIG END
€ 9.50
13035
13035S004
ref: 13035
PIN-CRANK,CRANK
€ 14.50
13037
13037S008
ref: 13037
CRANKSHAFT,LH
€ 135.00
13037
13037S013
ref: 13037
CRANKSHAFT,RH
€ 58.50
92033
92033S024
ref: 92033
RING-SNAP,PISTON PIN
€ 2.00
92045
92045S035
ref: 92045
BEARING-BALL,17X40X12
€ 17.00
92049
92049S028
ref: 92049
SEAL-OIL,CRANKSHAFT O
€ 8.50
92049
92049S029
ref: 92049
SEAL-OIL,CRANKSHAFT O
€ 5.00
99996
99996S008
ref: 99996
(OPTION)
PISTON,O/S 0.50
€ 124.50
99996
99996S009
ref: 99996
(OPTION)
PISTON,O/S 1.00
€ 115.50
