ENGINE COVERS

KDX400-A1 KDX400 1979 USA CANADA

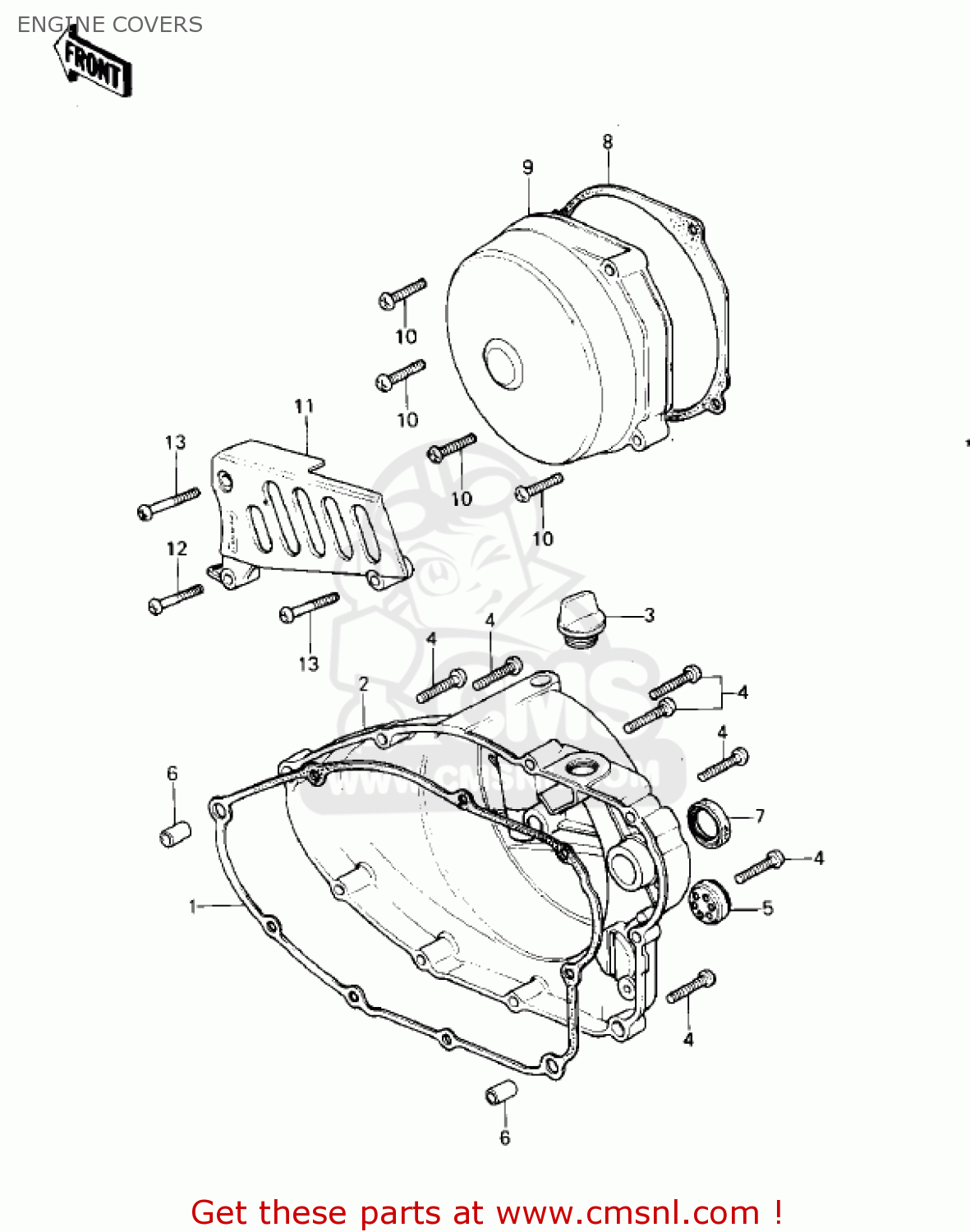

Engine covers diagram KDX400-A1 KDX400 1979 USA CANADA

prices are in EUR

ref

part #

description

quantity

110091131
ref: 1

GASKET,CLUTCH COVER (MCA)

€ 17.50

140321021
ref: 2

COVER,CLUTCH,F.BLACK

€ 195.50

16115018
ref: 3

PLUG,OIL FILLER

€ 7.00

220B0630
ref: 4

SCREW-PAN HEAD,6X30

€ 2.50

52015004
ref: 5

GAUGE,OIL LEVEL

€ 27.00

920431037
ref: 6

PIN,DOWEL,10X8.2X14

€ 0.50

92049012
ref: 7

OIL SEAL SB20285

€ 8.50

110091132
ref: 8

GASKET,MAGNETO COVER (MCA)

€ 14.50

140311035
ref: 9

COVER,MAGNETO,F.BLACK

€ 48.50

220B0630
ref: 10

SCREW-PAN HEAD,6X30

€ 2.50

14026101221
ref: 11

COVER,FRONT CHAIN

€ 17.50

220B0635
ref: 12

SCREW-PAN HEAD,6X35

€ 1.00

220B0640
ref: 13

SCREW-PAN HEAD,6X40

€ 2.00
