BRAKE PEDAL/TORQUE LINK
KDX400-A1 KDX400 1979 USA CANADA

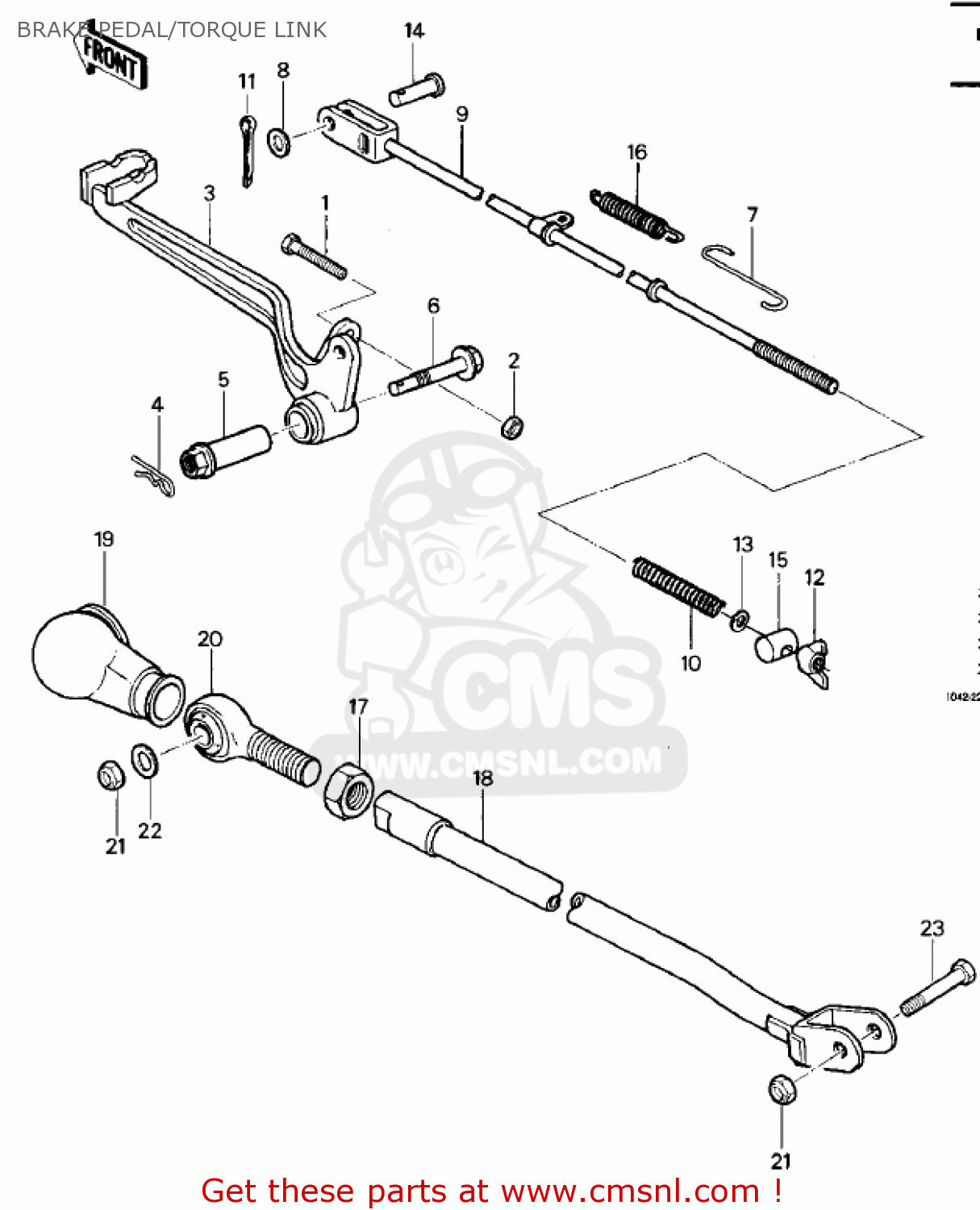

Brake pedal/torque link diagram KDX400-A1 KDX400 1979 USA CANADA
BRAKE PEDAL/TORQUE LINK KDX400-A1 KDX400 1979 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
112B0622
ref: 1
BOLT, 6X22
€ 2.50
2
311B0600
ref: 2
NUT,6MM
€ 0.50
3
430014002
ref: 3
REAR BRAKE LEVER
€ 15.00
4
554A0800
ref: 4
PIN-SNAP,8MM
€ 1.00
5
920011035
ref: 5
BOLT,HEX HEAD,12MM
€ 8.50
6
920011036
ref: 6
BOLT,HEX HEAD,12MM
€ 6.50
7
270124001
ref: 7
HOOK
€ 0.50
8
410B0600
ref: 8
WASHER-PLAIN-SMALL,6M
€ 0.50
9
430114001
ref: 9
BRAKE ROD
€ 23.00
10
43012001
ref: 10
SPRING,BRAKE ROD
€ 3.00
11
550D2015
ref: 11
PIN-COTTER,2.0X15
€ 1.00
12
920154004
ref: 12
NUT,BRAKE ADJUSTING
€ 4.50
13
920224003
ref: 13
WASHER,BRAKE ROD
€ 1.00
14
92043064
ref: 14
PIN-BRAKE ROD FITTING
€ 4.50
15
920431024
ref: 15
PIN,BRAKE
€ 6.00
16
920811025
ref: 16
SPRING,BRAKE PEDAL
€ 6.50
17
312B1200
ref: 17
NUT,12M/M
€ 2.00
18
430074001
ref: 18
TORQUE ROD
€ 31.00
19
490064001
ref: 19
BOOT
€ 3.00
20
592664001
ref: 20
BALL JOINT,NTN-SMR112
€ 61.50
21
920151124
ref: 21
NUT,LOCK,8MM
€ 3.50
22
92022091
ref: 22
WASHER
€ 2.50
23
920011041
ref: 23
BOLT,HEX HEAD,8X36
€ 6.50
