KICKSTARTER MECHANISM
KDX250-D4 1994 USA CANADA

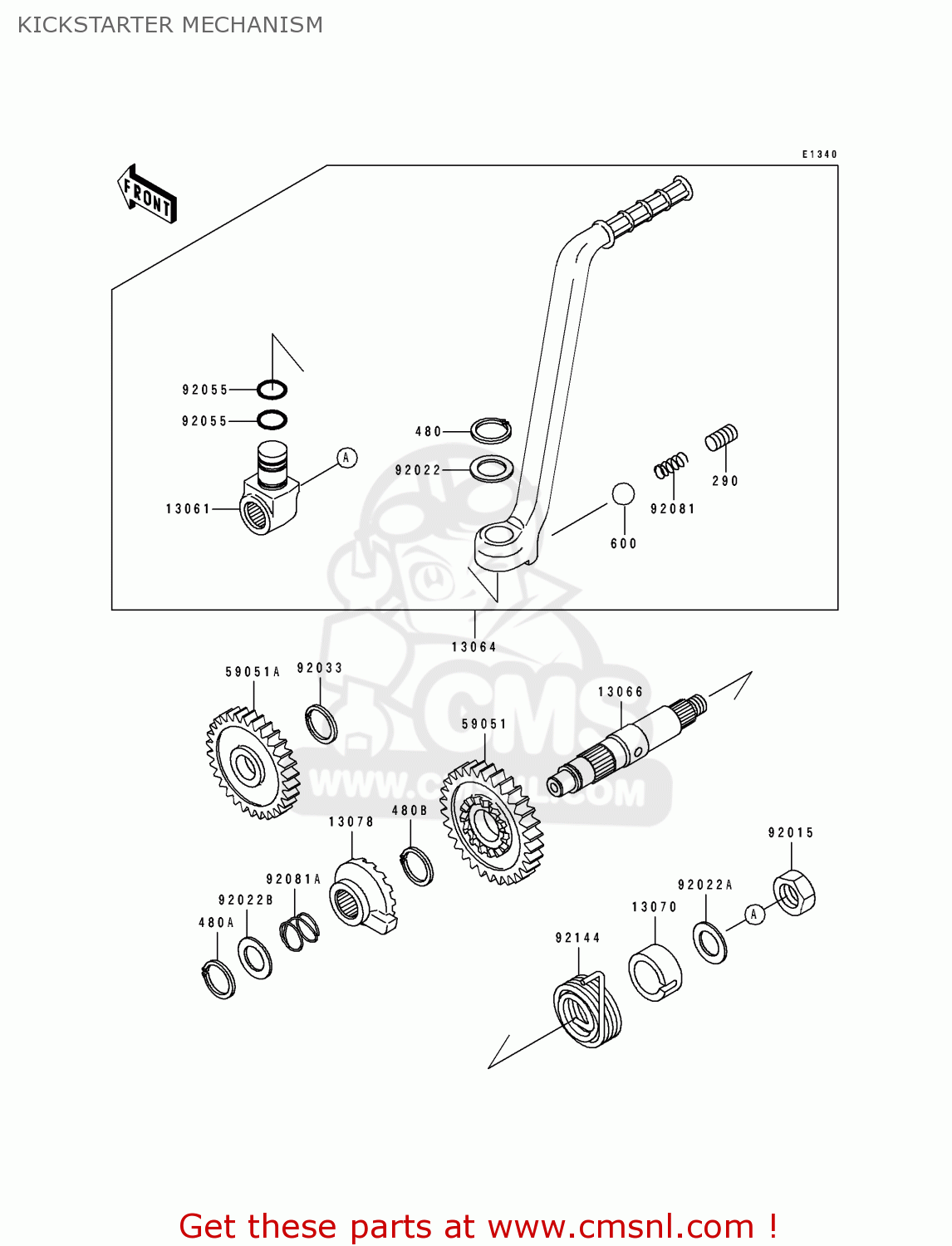

Kickstarter mechanism diagram KDX250-D4 1994 USA CANADA
KICKSTARTER MECHANISM KDX250-D4 1994 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
290
290Q0808
ref: 290
SCREW,8X8
€ 2.50
480
480J1500
ref: 480
CIRCLIP-TYPE-C,15MM
€ 1.00
480A
480J1600
ref: 480A
CIRCLIP-TYPE-C,16MM
€ 2.50
480B
480J1800
ref: 480B
CIRCLIP-TYPE-C,18MM
€ 1.00
600
600A0800
ref: 600
BALL-STEEL,1/4
€ 0.50
13061
130611336
ref: 13061
BOSS,KICK PEDAL
€ 44.50
13064
130641153
ref: 13064
LEVER-ASSY-KICK,PEDAL
€ 112.00
13066
130661068
ref: 13066
SHAFT-KICK
€ 81.00
13070
130701063
ref: 13070
GUIDE,KICK SPRING
€ 14.00
13078
130781063
ref: 13078
RATCHET
€ 61.50
59051
590511223
ref: 59051
GEAR-SPUR
€ 81.50
59051A
590511271
ref: 59051A
GEAR,KICKSTARTER IDLE
€ 83.00
92015
920151902
ref: 92015
NUT
€ 3.00
92022
920221205
ref: 92022
WASHER,16.3X24X1
€ 2.50
92022A
92022271
ref: 92022A
WASHER,PLAIN
€ 3.50
92022B
92022315
ref: 92022B
WASHER, 16.8X22X0.5
€ 4.00
92033
92033029
ref: 92033
CIRCLIP,18MM
€ 6.50
92055
92055061
ref: 92055
RING-O,10X1.5
€ 3.00
92081
92081020
ref: 92081
SPRING-KICK PEDAL
€ 2.50
92081A
92081122
ref: 92081A
SPRING,RATCHET
€ 6.00
92144
921441076
ref: 92144
SPRING,KICKSTARTER
€ 17.00
