GENERATOR

KDX250-D4 1994 USA CANADA

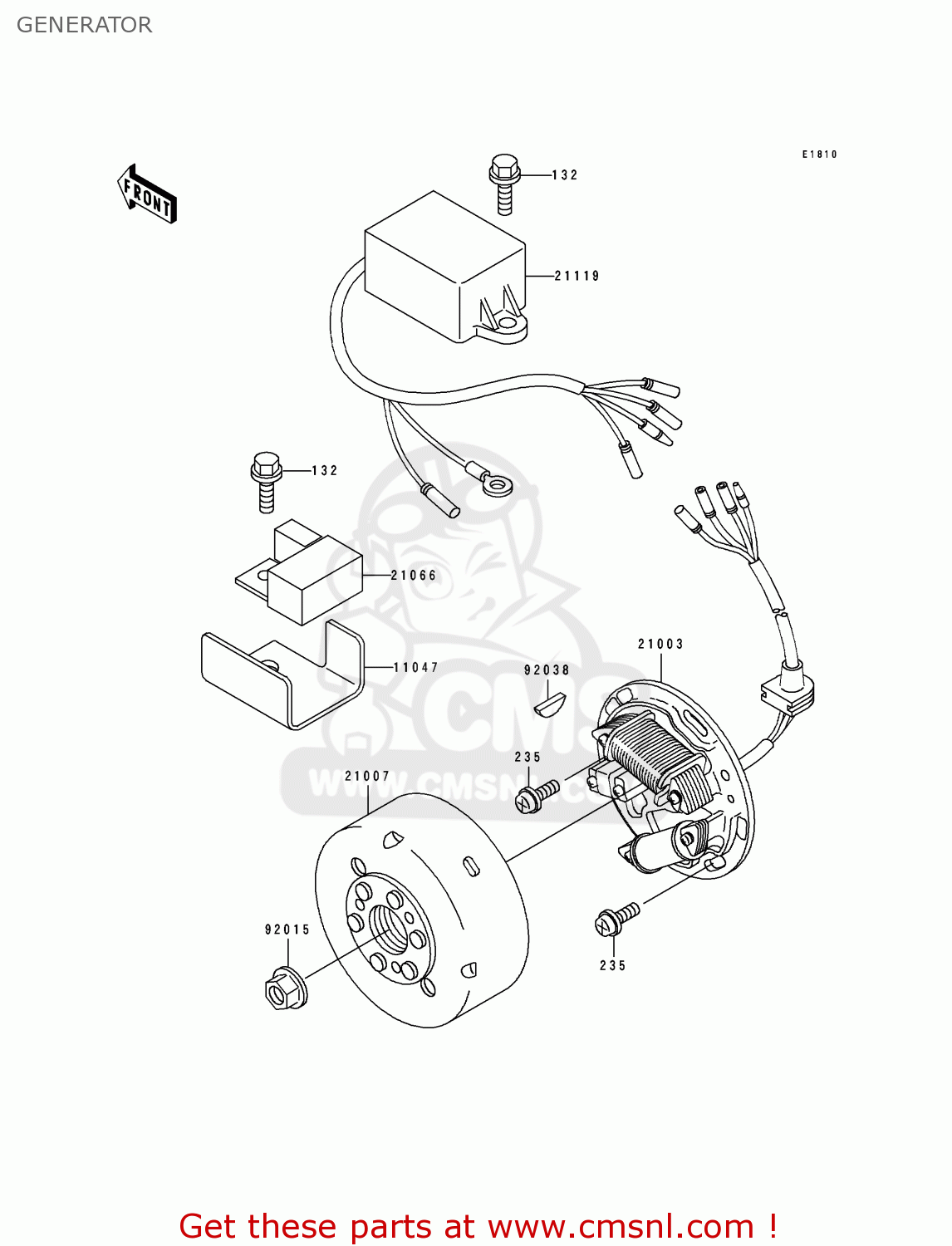

Generator diagram KDX250-D4 1994 USA CANADA

GENERATOR KDX250-D4 1994 USA CANADA
GENERATOR KDX250-D4 1994 USA CANADA
GENERATOR KDX250-D4 1994 USA CANADA
prices are in EUR
ref
part #
description
quantity
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
132G0612
€ 1.50
235
235B0616
ref: 235
SCREW-PAN-WP-CROS
235B0616
€ 3.00
11047
110471421
ref: 11047
BRACKET,REGULATOR
€ 6.50
21003
210031233
ref: 21003
STATOR
€ 196.00
21007
210071231
ref: 21007
ROTOR,MAGNETO
€ 430.50
21066
210661070
ref: 21066
REGULATOR-VOLTAGE
210661070
€ 62.00
21119
211191311
ref: 21119
IGNITER
€ 293.50
92015
920151821
ref: 92015
NUT
€ 4.50
92038
92038001
ref: 92038
WOODRUFF KEY
92038001
€ 3.00
