GEAR CHANGE DRUM/SHIFT FORKS
KDX250-D3 1993 USA CANADA

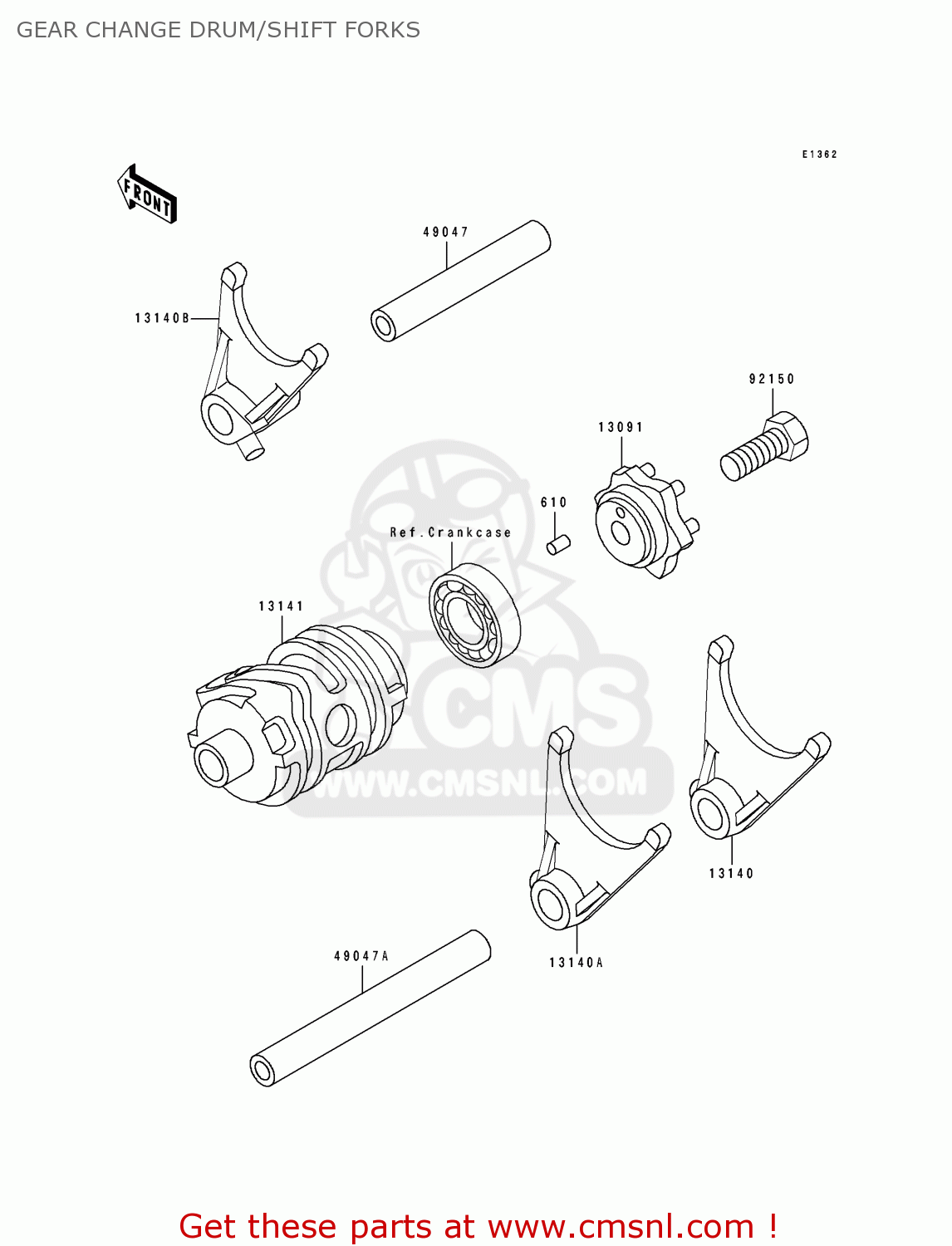

Gear change drum/shift forks diagram KDX250-D3 1993 USA CANADA
GEAR CHANGE DRUM/SHIFT FORKS KDX250-D3 1993 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
13091
130911364
ref: 13091
HOLDER,CHANGE DRUM
€ 73.00
13140
131401071
ref: 13140
FORK-SHIFT,LOW
€ 62.50
13140A
131401072
ref: 13140A
FORK-SHIFT,2ND&3RD
€ 58.50
13140B
131401073
ref: 13140B
FORK-SHIFT,4TH&TOP
€ 58.00
13141
131411174
ref: 13141
DRUM-CHANGE
€ 80.50
49047
490471063
ref: 49047
ROD-SHIFT,L=64.5
€ 11.00
49047A
490471080
ref: 49047A
ROD-SHIFT,5.9X10X90
€ 9.50
92150
921501534
ref: 92150
BOLT
€ 2.00
