FOOTRESTS

KDX250-D3 1993 USA CANADA

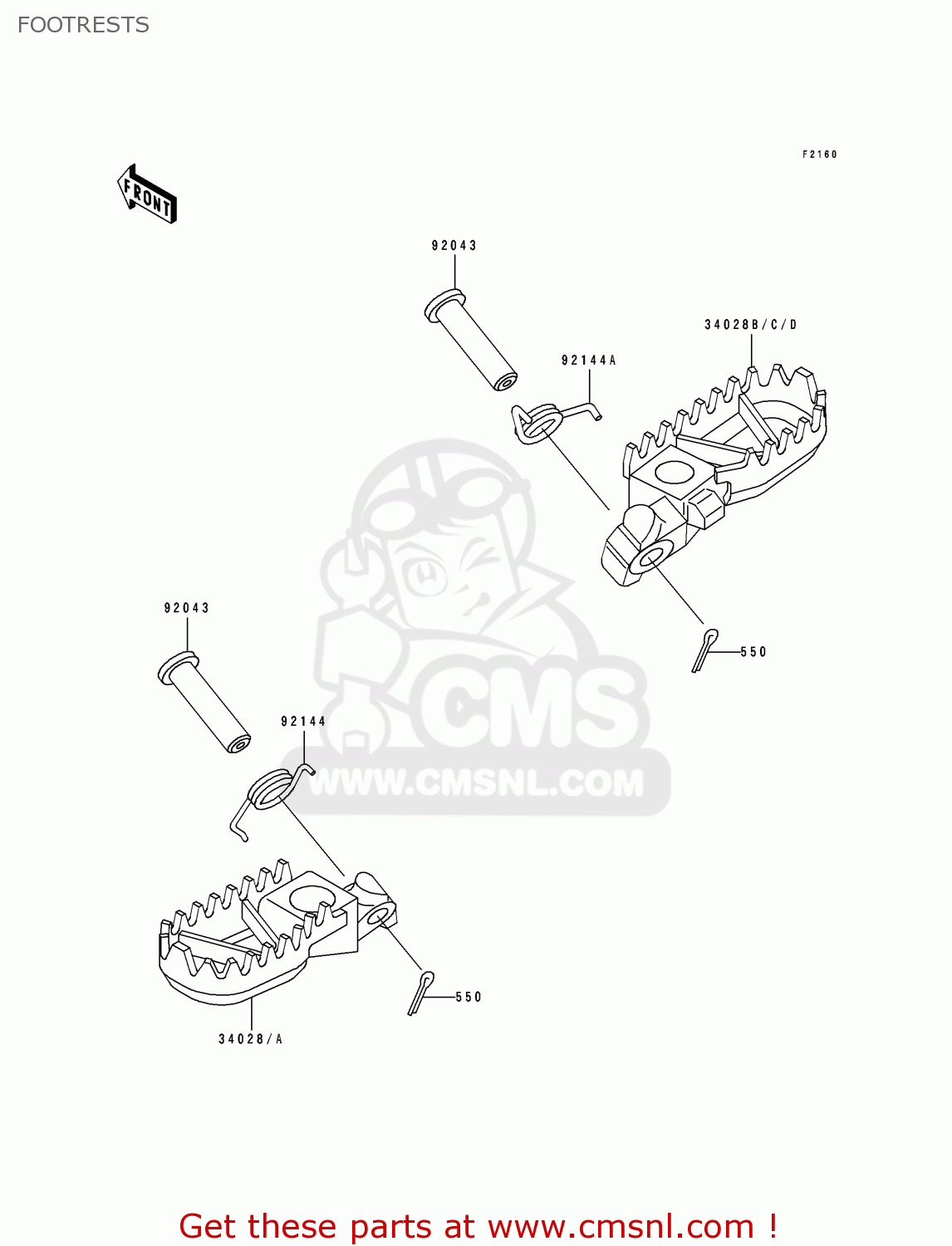

Footrests diagram KDX250-D3 1993 USA CANADA

FOOTRESTS KDX250-D3 1993 USA CANADA

FOOTRESTS KDX250-D3 1993 USA CANADA

prices are in EUR

ref

part #

description

quantity

550

550D3020
ref: 550

PIN-COTTER,3.0X20

€ 2.00

34028A

340281332CE
ref: 34028A

STEP,LH,SILVER NO.25

€ 41.00

34028D

340281365CE
ref: 34028D

STEP,RH,SILVER NO.25

€ 41.00

92043

920431372
ref: 92043

PIN,10X45.5

€ 7.50

92144

921441511
ref: 92144

SPRING,STEP,LH

€ 5.50

92144A

921441512
ref: 92144A

SPRING,STEP,RH

€ 5.50
