SUSPENSION
KDX250-D1 1991 UNITED KINGDOM AL

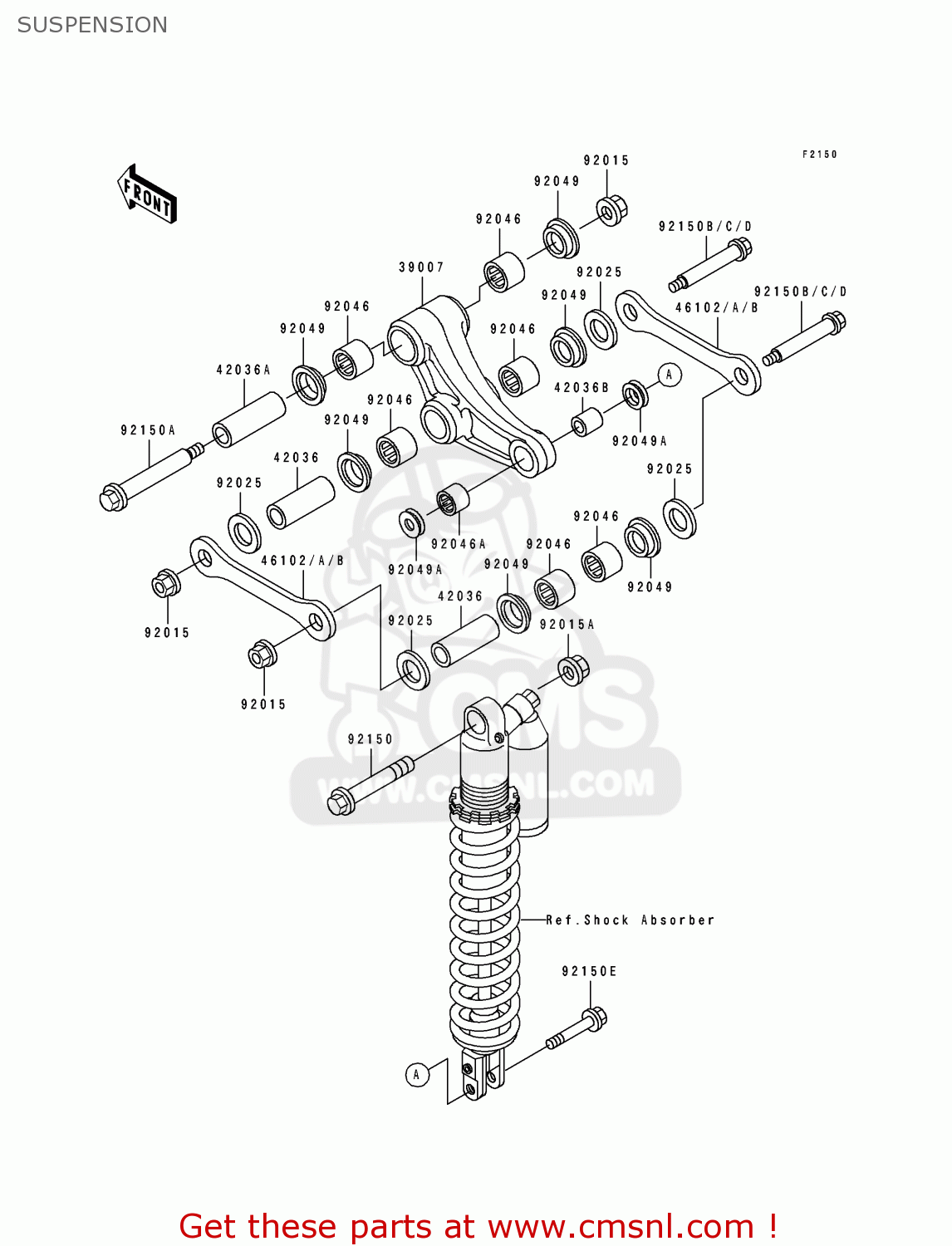

Suspension diagram KDX250-D1 1991 UNITED KINGDOM AL
SUSPENSION KDX250-D1 1991 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
39007
390071208
ref: 39007
ARM-SUSP,UNI TRAK
€ 172.00
42036
420361245
ref: 42036
SLEEVE,15X22X57
€ 14.50
42036A
420361246
ref: 42036A
SLEEVE,15X22X63
€ 14.50
42036B
420361248
ref: 42036B
SLEEVE,10X16X19
€ 6.50
46102
461021318
ref: 46102
ROD,SUSPENSION
€ 61.50
46102B
461021328
ref: 46102B
ROD,SUSPENSION,T=10
€ 31.50
92015
920151433
ref: 92015
NUT,12MM
€ 6.00
92015A
920151502
ref: 92015A
NUT,FLANGED,10MM
€ 7.00
92025
920251135
ref: 92025
SHIM,15.3X27.5X0.6
€ 3.50
92046
920461162
ref: 92046
BEARING-NEEDLE,F-2220
€ 20.50
92046A
920461192
ref: 92046A
BEARING-NEEDLE,16BM22
€ 19.50
92049
920491254
ref: 92049
SEAL-OIL,MHA22 28 5.7
€ 6.50
92049A
920491330
ref: 92049A
SEAL-OIL
€ 9.00
92150
921501125
ref: 92150
BOLT
€ 4.50
92150A
921501195
ref: 92150A
BOLT,ARM,12MM
€ 17.00
92150B
921501213
ref: 92150B
BOLT,ROD,12X85
€ 16.50
92150D
921501337
ref: 92150D
BOLT
€ 18.00
92150E
921501711
ref: 92150E
BOLT
€ 8.50
