FUEL TANK
KDX250-D1 1991 UNITED KINGDOM AL

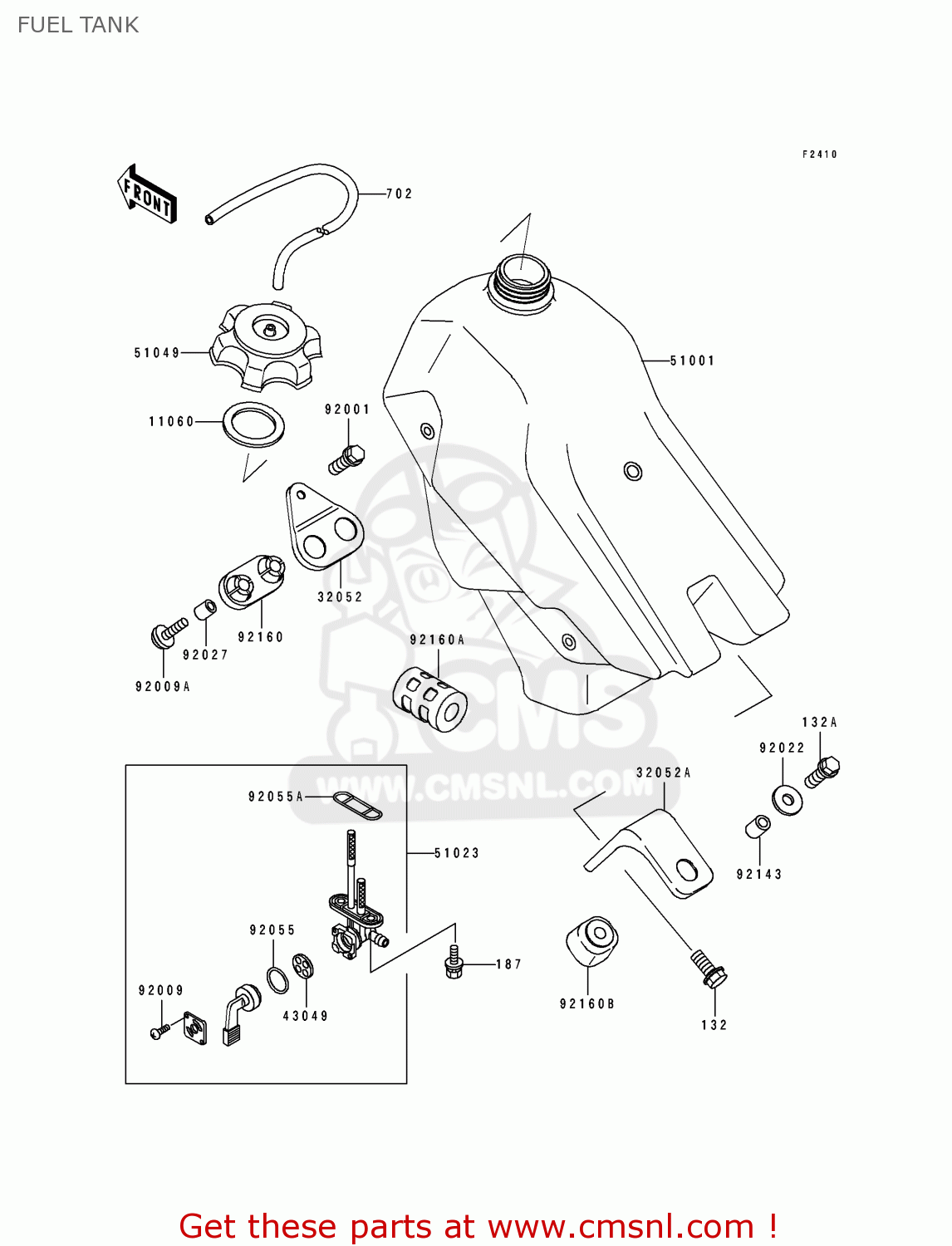

Fuel tank diagram KDX250-D1 1991 UNITED KINGDOM AL
FUEL TANK KDX250-D1 1991 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0635
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
187
187B0616
ref: 187
BOLT-UPSET-WSP
€ 0.50
702
702A05350
ref: 702
TUBE-RUBBER,5X350
€ 50.00
11060
110601340
ref: 11060
GASKET,FUEL TANK CAP (NAS)
€ 4.00
32052
320521317CC
ref: 32052
BRACKET-TANK,FUEL,FR,
€ 5.50
32052A
320521318CC
ref: 32052A
BRACKET-TANK,FUEL,RR,
€ 6.00
43049
430491017
ref: 43049
PACKING,FUEL TAP LEVE (NAS)
€ 5.00
51001
5100114756W
ref: 51001
TANK-COMP-FUEL,L.GREE
€ 533.50
51023
510231178
ref: 51023
TAP-ASSY,FUEL
€ 33.50
51049
510491089
ref: 51049
CAP-TANK
€ 19.00
92001
920011897
ref: 92001
BOLT,8X16
€ 3.50
92009
920091123
ref: 92009
SCREW,3X3
€ 1.00
92009A
920091441
ref: 92009A
SCREW,6X22
€ 2.50
92022
920221690
ref: 92022
WASHER
€ 2.50
92027
920271210
ref: 92027
COLLAR,6.8X10X11.5L
€ 7.00
92055
920551111
ref: 92055
RING-O,FUEL TAP LEVER
€ 3.50
92055A
920551348
ref: 92055A
RING-O,FUEL TAP PACKI
€ 4.50
92143
921431459
ref: 92143
COLLAR,6.8X10X24.5
€ 2.50
92160
921601252
ref: 92160
DAMPER,FUEL TANK,FR
€ 4.50
92160A
921601253
ref: 92160A
DAMPER,FUEL TANK
€ 4.50
92160B
921601254
ref: 92160B
DAMPER,FUEL TANK,RR
€ 7.00
