FRONT FORK
KDX250-C2 1984 AUSTRALIA

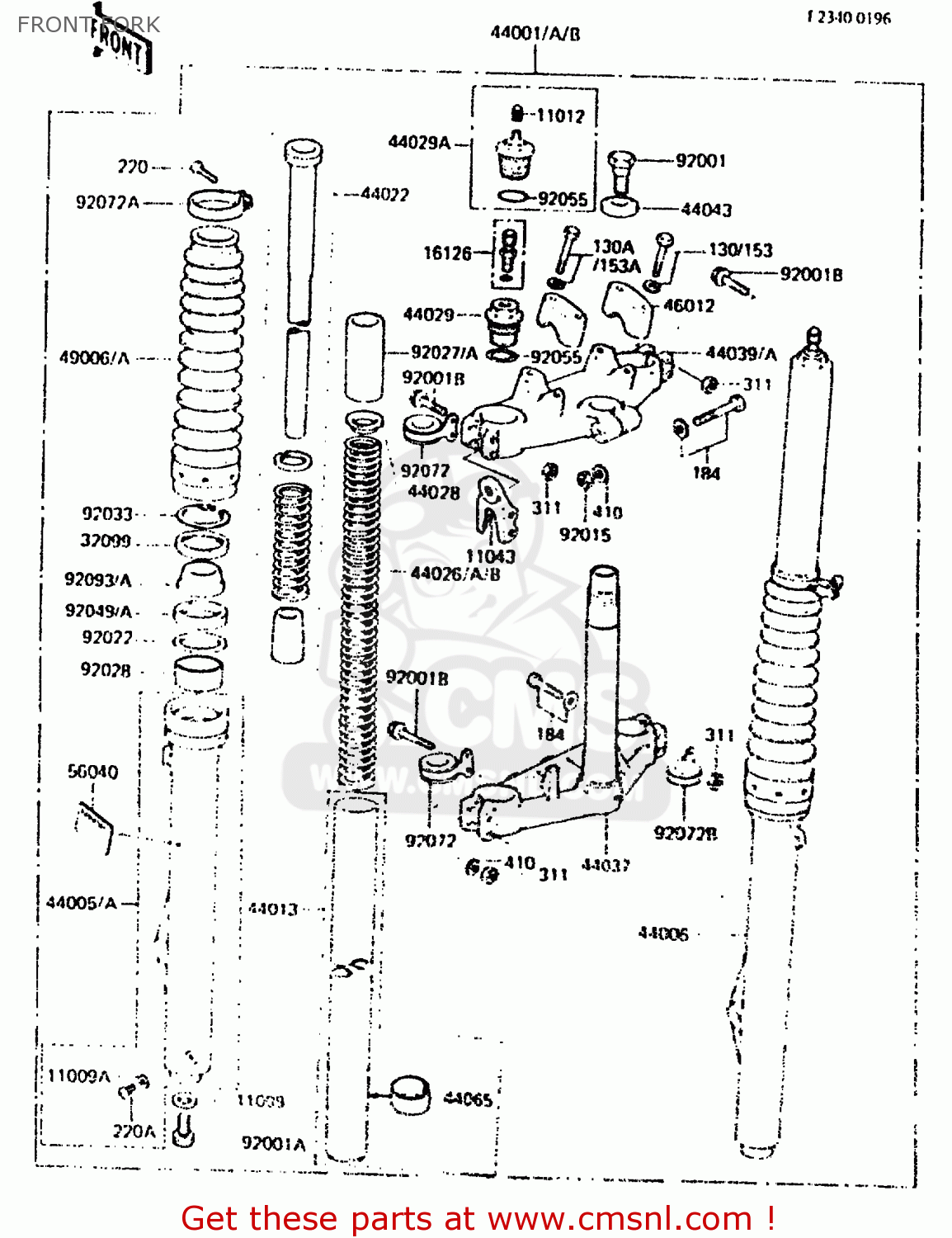

Front fork diagram KDX250-C2 1984 AUSTRALIA
FRONT FORK KDX250-C2 1984 AUSTRALIA
×
prices are in EUR
ref
part #
description
quantity
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
€ 3.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11012
110121391
ref: 11012
CAP,VALVE AIR
€ 3.50
11043
110431141
ref: 11043
BRACKET-B,FRONT FORK
€ 8.50
44001A
440011528
ref: 44001A
FORK-FRONT
€ 0.00
44005A
440051209
ref: 44005A
PIPE-LEFT FORK OUTER
€ 254.00
44006
440061123
ref: 44006
PIPE-RIGHT FORK OUTER
€ 254.00
44013
440131102
ref: 44013
PIPE-FORK INNER
€ 185.50
44022
440221088
ref: 44022
CYLINDER-FORK
€ 88.00
44026
440261204
ref: 44026
SPRING-FRONT FORK
€ 31.00
44026A
440261205
ref: 44026A
(OPTION)
SPRING-FRONT FORK
€ 26.50
44026B
440261206
ref: 44026B
(OPTION)
SPRING-FRONT FORK
€ 31.00
44028
440281003
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44029A
440291106
ref: 44029A
SEAT-FORK SPRING
€ 27.50
44037
440371152
ref: 44037
HOLDER-FORK UNDER
€ 225.50
44039
440391043
ref: 44039
HOLDER-FORK UPPER
€ 149.50
44043
44043052
ref: 44043
WASHER,PLAIN
€ 6.00
44065
440651057
ref: 44065
BUSHING,FRON.PIPE
€ 31.50
46012
460121014
ref: 46012
HOLDER-HANDLE
€ 8.50
49006A
490064008
ref: 49006A
BOOT,FORK,BLACK
€ 43.00
56040
560401120
ref: 56040
LABEL,FRONT FORK
€ 3.50
92001
44041065
ref: 92001
BOLT,FORK TOP
€ 18.50
92001A
920011309
ref: 92001A
BOLT,FORK CYLINDER
€ 4.50
92001B
920011398
ref: 92001B
BOLT,FLANGED 8X55
€ 2.50
92015
920151124
ref: 92015
NUT,LOCK,8MM
€ 3.50
92022
920221242
ref: 92022
WASHER
€ 5.50
92027A
920271762
ref: 92027A
COLLAR,L=127
€ 3.50
92028
920281125
ref: 92028
BUSHING
€ 17.00
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92049A
920491180
ref: 92049A
SEAL-OIL,FRONT FORK
€ 14.50
92055
920551050
ref: 92055
RING-O,FORK TOP CAP
€ 4.00
92072
920721040
ref: 92072
BAND,CABLE
€ 12.50
92072A
920721046
ref: 92072A
BAND,BOOT
€ 6.50
92072B
920721153
ref: 92072B
BAND,CABLE
€ 12.50
92093A
920931166
ref: 92093A
SEAL,FRONT FORK
€ 12.50
130
130G0835
ref: 130
BOLT,FLANGED,8X35
€ 1.00
130A
130G0840
ref: 130A
BOLT-FLANGED,8X40
€ 1.00
184
184G0855
ref: 184
BOLT-UPSET-WP-SMALL
€ 2.50
220
220B0316
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0408
ref: 220A
SCREW-PAN-CROS
€ 0.50
311
311G0800
ref: 311
NUT-HEX,8MM
€ 2.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
