FRAME FITTING
KDX250-C2 1984 AUSTRALIA

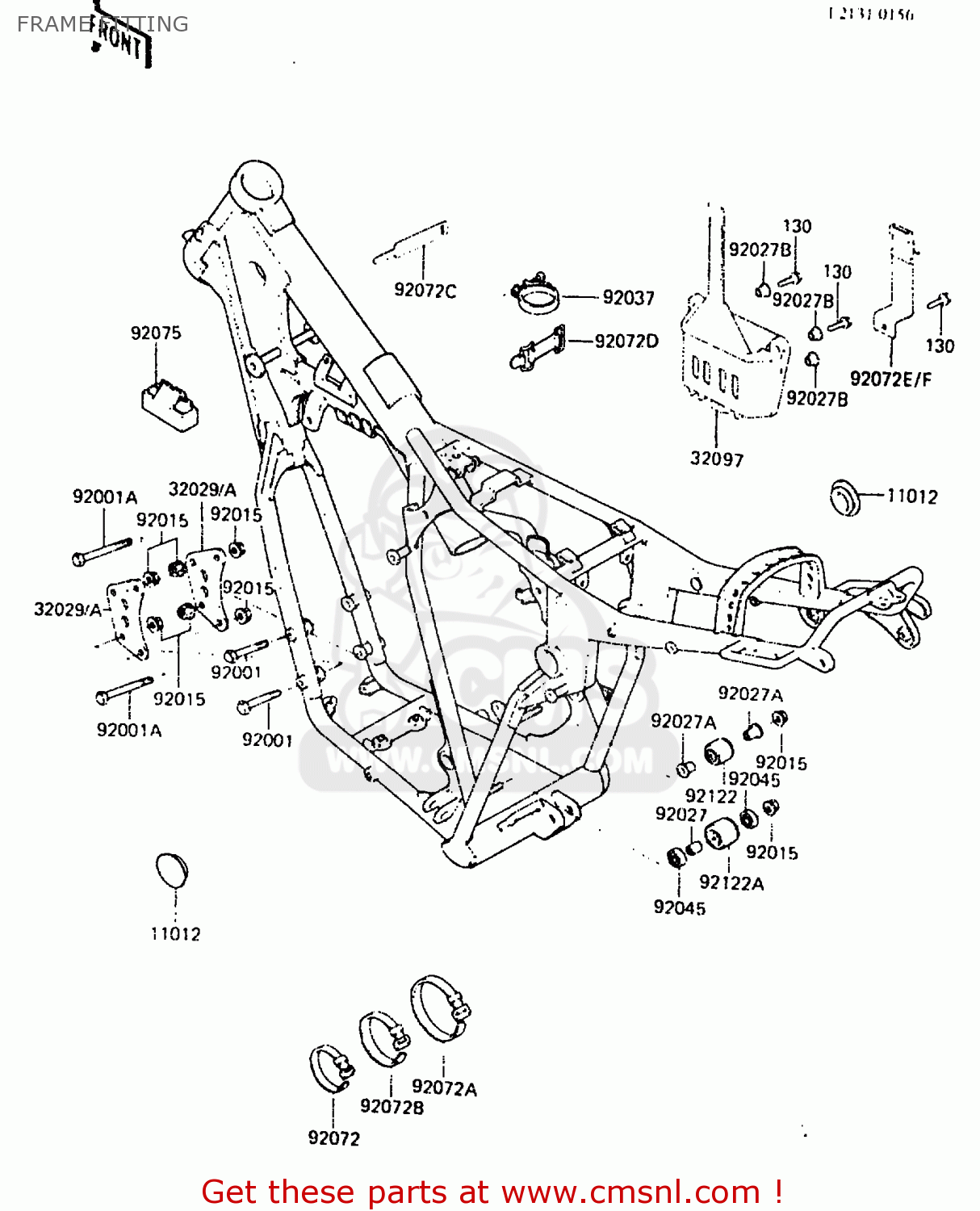

Frame fitting diagram KDX250-C2 1984 AUSTRALIA
FRAME FITTING KDX250-C2 1984 AUSTRALIA
×
prices are in EUR
ref
part #
description
quantity
11012
110121211
ref: 11012
CAP,UNI-TRAK
€ 3.50
32029A
320291333
ref: 32029A
BRACKET-ENGINE
€ 23.00
32097
320971069
ref: 32097
CASE-BATTERY
€ 73.00
92001
920011493
ref: 92001
BOLT,8X57
€ 2.50
92001A
920011494
ref: 92001A
BOLT,8X72
€ 5.50
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92027
920271081
ref: 92027
COLLAR
€ 6.50
92027A
920271383
ref: 92027A
COLLAR,CHAIN GUIDE
€ 4.00
92027B
92027251
ref: 92027B
COLLAR,L=13.1
€ 1.00
92037
920371172
ref: 92037
CLAMP
€ 5.50
92045
920451033
ref: 92045
BEARING-BALL,608LU/2A
€ 34.50
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
92072A
92072032
ref: 92072A
BAND,LONG
€ 3.00
92072B
92072056
ref: 92072B
BAND,RUBBER
€ 3.00
92072C
92072068
ref: 92072C
BAND,WIRING HARNESS
€ 2.50
92072D
92072076
ref: 92072D
BAND,L=40
€ 14.00
92072F
920721175
ref: 92072F
BAND,BATTERY CASE
€ 7.50
92075
920751508
ref: 92075
DAMPER,RESISTOR
€ 8.00
92122
921221021
ref: 92122
ROLLER,CHAIN GUIDE
€ 9.00
92122A
921221102
ref: 92122A
ROLLER,CHAIN GUIDE
€ 54.00
130
130G0625
ref: 130
BOLT,FLANGED,6X25
€ 0.50
