REAR HUB

KDX220-A5 KDX220R 1998 USA CANADA

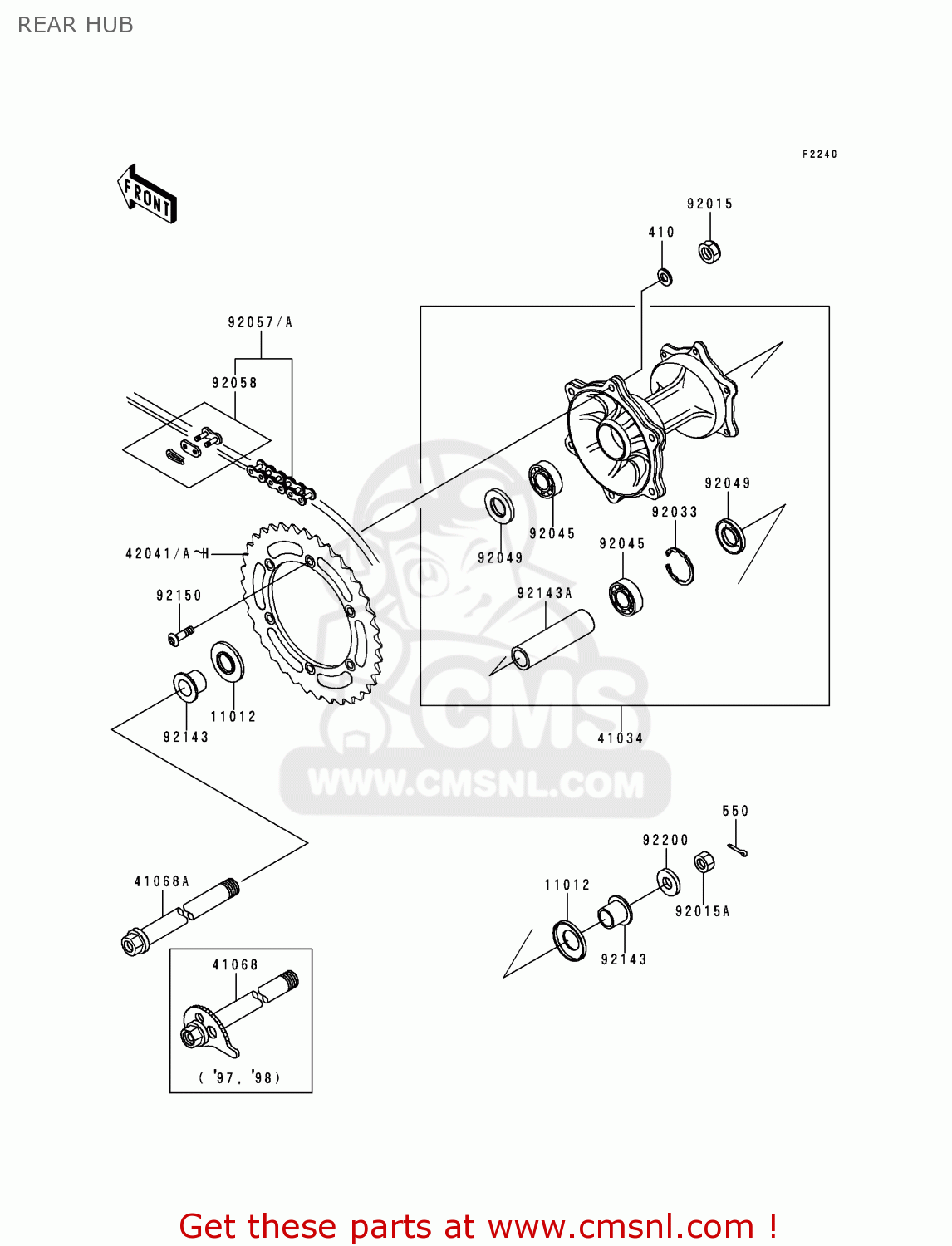

Rear hub diagram KDX220-A5 KDX220R 1998 USA CANADA

REAR HUB KDX220-A5 KDX220R 1998 USA CANADA
REAR HUB KDX220-A5 KDX220R 1998 USA CANADA
REAR HUB KDX220-A5 KDX220R 1998 USA CANADA
prices are in EUR
ref
part #
description
quantity
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
410B0800
€ 0.50
550
550D3025
ref: 550
PIN-COTTER,3.0X25
550D3025
€ 0.50
11012
110121581
ref: 11012
CAP,AXLE
110121581
€ 4.00
41034
410341216
ref: 41034
DRUM-ASSY,REAR BRAKE
410341216
€ 424.50
41068
410681340
ref: 41068
AXLE,RR
€ 95.00
42041
420411323
ref: 42041
SPROCKET-HUB,44T
€ 44.50
42041A
420411381
ref: 42041A
SPROCKET-HUB,46T
420411381
€ 38.50
42041B
420411382
ref: 42041B
SPROCKET-HUB,47T
420411382
€ 38.50
42041C
420411383
ref: 42041C
SPROCKET, HUB, 48T
420411383
€ 38.50
42041D
420411384
ref: 42041D
SPROCKET-HUB,49T
420411384
€ 38.50
42041E
420411408
ref: 42041E
SPROCKET-HUB,50T
420411408
€ 37.00
42041F
420411413
ref: 42041F
SPROCKET-HUB,45T
420411413
€ 38.50
42041G
420411428
ref: 42041G
SPROCKET-HUB,51T
€ 37.00
42041H
420411436
ref: 42041H
SPROCKET-HUB,43T
€ 44.50
92015
920151432
ref: 92015
NUT,8MM
920151432
€ 4.50
92015A
920151770
ref: 92015A
NUT,LOCK,20MM
920151770
€ 19.00
92033
920331041
ref: 92033
CIRCLIP,42MM
920331041
€ 4.00
92045
920451239
ref: 92045
BEARING-BALL,6004X8JR
920451239
€ 30.00
92049
920491203
ref: 92049
SEAL-OIL,BJNC2 25425
920491203
€ 12.00
92057
920571400
ref: 92057
CHAIN,DRIVE,EK520SR-O
€ 68.00
92057A
920571401
ref: 92057A
CHAIN,DRIVE,EK520SR-O
€ 68.00
92058
920581060
ref: 92058
JOINT-CHAIN
€ 5.50
92143
921431259
ref: 92143
COLLAR,RR AXLE,L=22
921431259
€ 26.00
92143A
921431402
ref: 92143A
COLLAR,RR BRAKE DRUM,
921431402
€ 10.50
92150
921501978
ref: 92150
BOLT
921501978
€ 5.50
92200
922001146
ref: 92200
WASHER,20.2X36X2
922001146
€ 3.00
