TAILLIGHT(S)
KDX200-H10 KDX200 2004

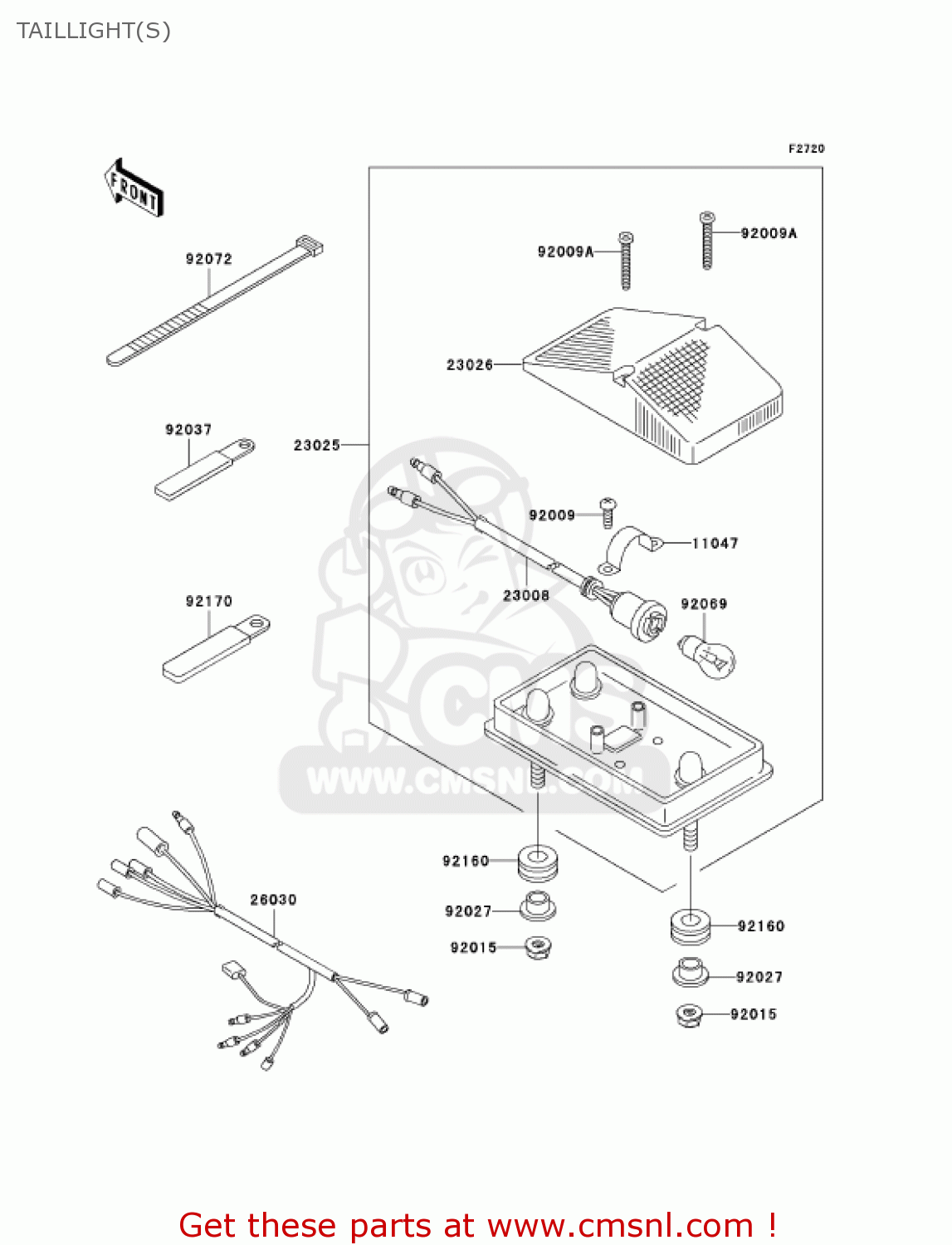

Taillight(s) diagram KDX200-H10 KDX200 2004
TAILLIGHT(S) KDX200-H10 KDX200 2004
×
prices are in EUR
ref
part #
description
quantity
11047
110471238
ref: 11047
BRACKET,TAIL LAMP
€ 3.50
23008
230081462
ref: 23008
SOCKET-ASSY,TAIL LAMP
€ 25.50
23025
230251215
ref: 23025
LAMP-TAIL
€ 90.50
23026
230261131
ref: 23026
LENS,TAIL LAMP
€ 23.00
26030
260301279
ref: 26030
HARNESS,MAIN
€ 130.50
92009
920091021
ref: 92009
SCREW,TAPPING,4X10
€ 2.50
92009A
920091647
ref: 92009A
SCREW,TAPPING,4X30
€ 2.50
92015
920151367
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92027
920271920
ref: 92027
COLLAR
€ 4.50
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92069
920691072
ref: 92069
BULB,12V 10W
€ 3.50
92072
920721195
ref: 92072
BAND,L=185
€ 1.00
92160
921601167
ref: 92160
DAMPER,10X20X12
€ 3.00
92170
921701114
ref: 92170
CLAMP
€ 5.00
