FRAME
KDX200-H10 KDX200 2004

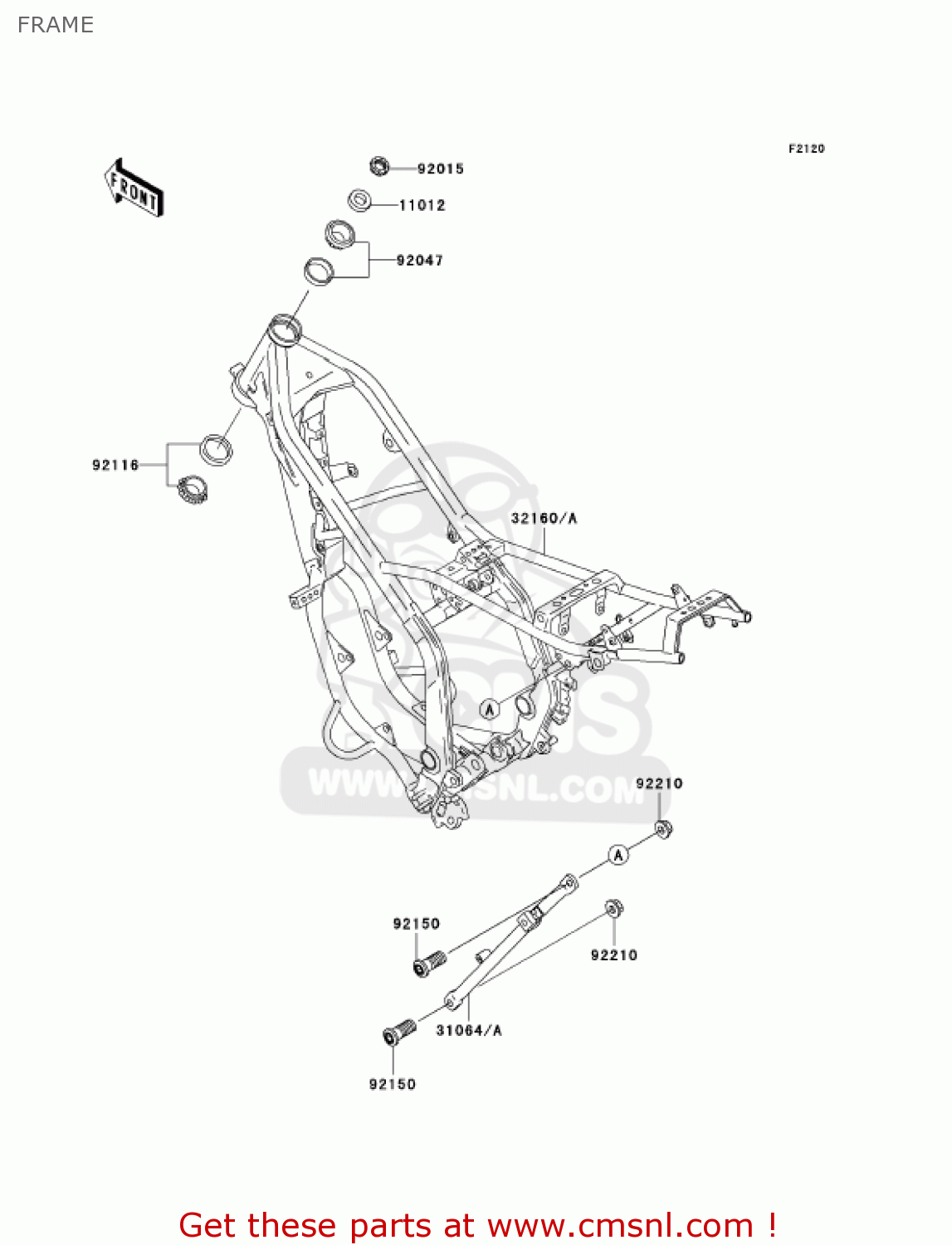

Frame diagram KDX200-H10 KDX200 2004
FRAME KDX200-H10 KDX200 2004
×
prices are in EUR
ref
part #
description
quantity
11012
110121762
ref: 11012
CAP,STEERING STEM
€ 4.00
31064
310641163GD
ref: 31064
PIPE-COMP,SUB FRAME,G
€ 208.50
32160
321601756GD
ref: 32160
FRAME-COMP,G.GRAY
€ 1,246.50
92015
920151546
ref: 92015
NUT,25MM,T=12
€ 14.50
92047
92047017
ref: 92047
CONE,STRNG,STEM
€ 49.50
92116
921161069
ref: 92116
BEARING-ROLLER
€ 69.50
92150
921501221
ref: 92150
BOLT,SOCKET,10X23
€ 3.50
92210
922101080
ref: 92210
NUT
€ 7.00
