TAIL LAMP

KDX200-E6 1994 UNITED KINGDOM AL

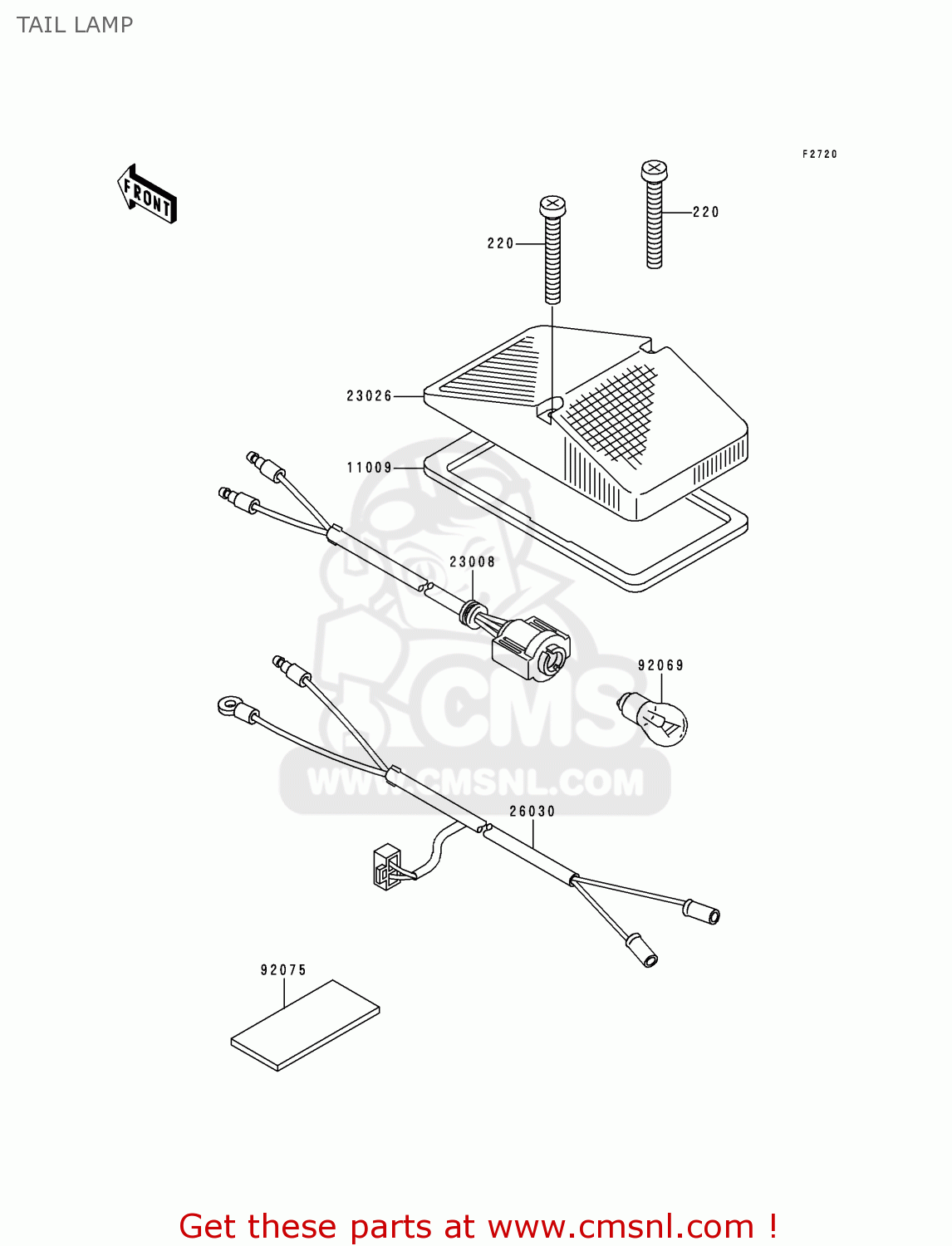

Tail lamp diagram KDX200-E6 1994 UNITED KINGDOM AL

TAIL LAMP KDX200-E6 1994 UNITED KINGDOM AL

TAIL LAMP KDX200-E6 1994 UNITED KINGDOM AL

prices are in EUR

ref

part #

description

quantity

220

220B0445
ref: 220

SCREW-PAN-CROS

€ 2.50

11009

110091762
ref: 11009

GASKET,TAIL LAMP (NAS)

€ 10.50

23008

230081404
ref: 23008

SOCKET-ASSY,TAIL LAMP

€ 23.50

23026

230261104
ref: 23026

LENS,TAIL LAMP

€ 14.50

26030

260301036
ref: 26030

HARNESS,TAIL LAMP

€ 14.00

92069

920691072
ref: 92069

BULB,12V 10W

€ 3.50

92075

920751625
ref: 92075

DAMPER,TAIL LAMP

€ 7.00
