FRAME FITTING
KDX200-A3 1985 UNITED KINGDOM AL

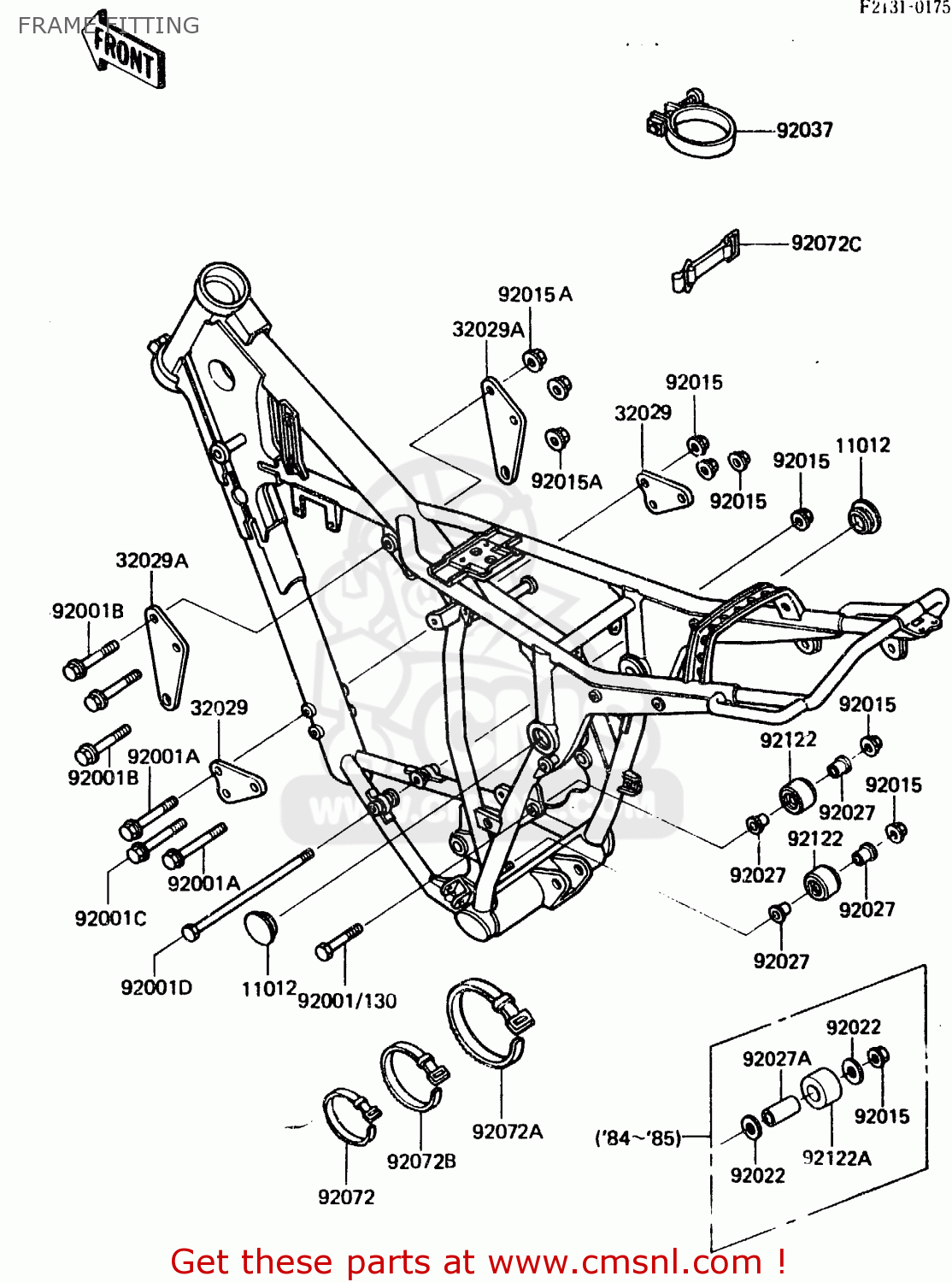

Frame fitting diagram KDX200-A3 1985 UNITED KINGDOM AL
FRAME FITTING KDX200-A3 1985 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
11012
110121211
ref: 11012
CAP,UNI-TRAK
€ 3.50
32029
320291173
ref: 32029
BRACKET-ENGINE
€ 11.50
32029A
320291231
ref: 32029A
BRACKET-ENGINE
€ 16.00
92001A
920011583
ref: 92001A
BOLT,FLANGED,8X70
€ 6.00
92001B
920011584
ref: 92001B
BOLT,10X50
€ 2.50
92001C
920011755
ref: 92001C
BOLT,FLANGED,8X75
€ 6.00
92001D
920011756
ref: 92001D
BOLT,8X180
€ 4.50
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92015A
920151234
ref: 92015A
NUT,FLANGED,10MM
€ 3.00
92022
92022092
ref: 92022
WASHER
€ 2.50
92027A
920271670
ref: 92027A
COLLAR,CHAIN ROLLER
€ 4.50
92037
920371172
ref: 92037
CLAMP
€ 5.50
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
92072A
92072032
ref: 92072A
BAND,LONG
€ 3.00
92072B
92072056
ref: 92072B
BAND,RUBBER
€ 3.00
92072C
920721085
ref: 92072C
BAND,RESERVE TANK
€ 12.50
92122A
921221104
ref: 92122A
ROLLER,CHAIN GUIDE
€ 12.00
130
130G0850
ref: 130
BOLT,8X50
€ 1.00
