CABLE

KDX200-A3 1985 UNITED KINGDOM AL

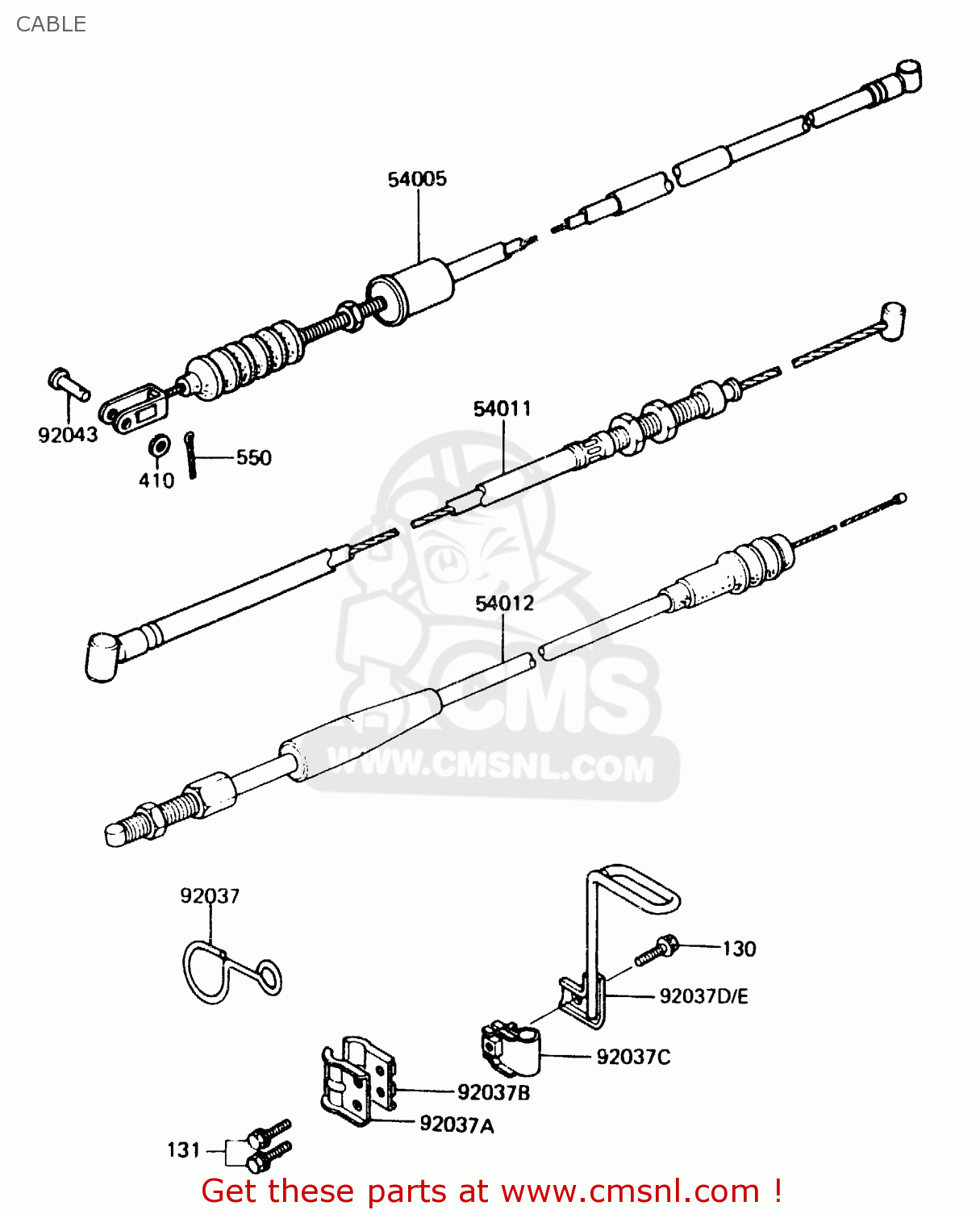

Cable diagram KDX200-A3 1985 UNITED KINGDOM AL

prices are in EUR

ref

part #

description

quantity

54005

540051043
ref: 54005

CABLE-BRAKE

€ 41.00

54011

540111166
ref: 54011

CABLE-CLUTCH

€ 22.50

54012

540121119
ref: 54012

CABLE-THROTTLE

€ 27.00

92037

920371064
ref: 92037

CLAMP,CABLE

€ 5.50

92037A

920371331
ref: 92037A

CLAMP,BRAKE HOSE,OUTS

€ 5.50

92037B

920371332
ref: 92037B

CLAMP,BRAKE HOSE,INSI

€ 4.00

92037C

920371376
ref: 92037C

CLAMP,CABLE

€ 3.50

92037E

920371513
ref: 92037E

CLAMP,CABLE

€ 14.50

92043

92043064
ref: 92043

PIN-BRAKE ROD FITTING

€ 4.50

130

130G0618
ref: 130

BOLT-FLANGED,6X18

€ 1.00

131

131G0516
ref: 131

BOLT-FLANGED

€ 0.50

410

410B0600
ref: 410

WASHER-PLAIN-SMALL,6M

€ 0.50

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00
