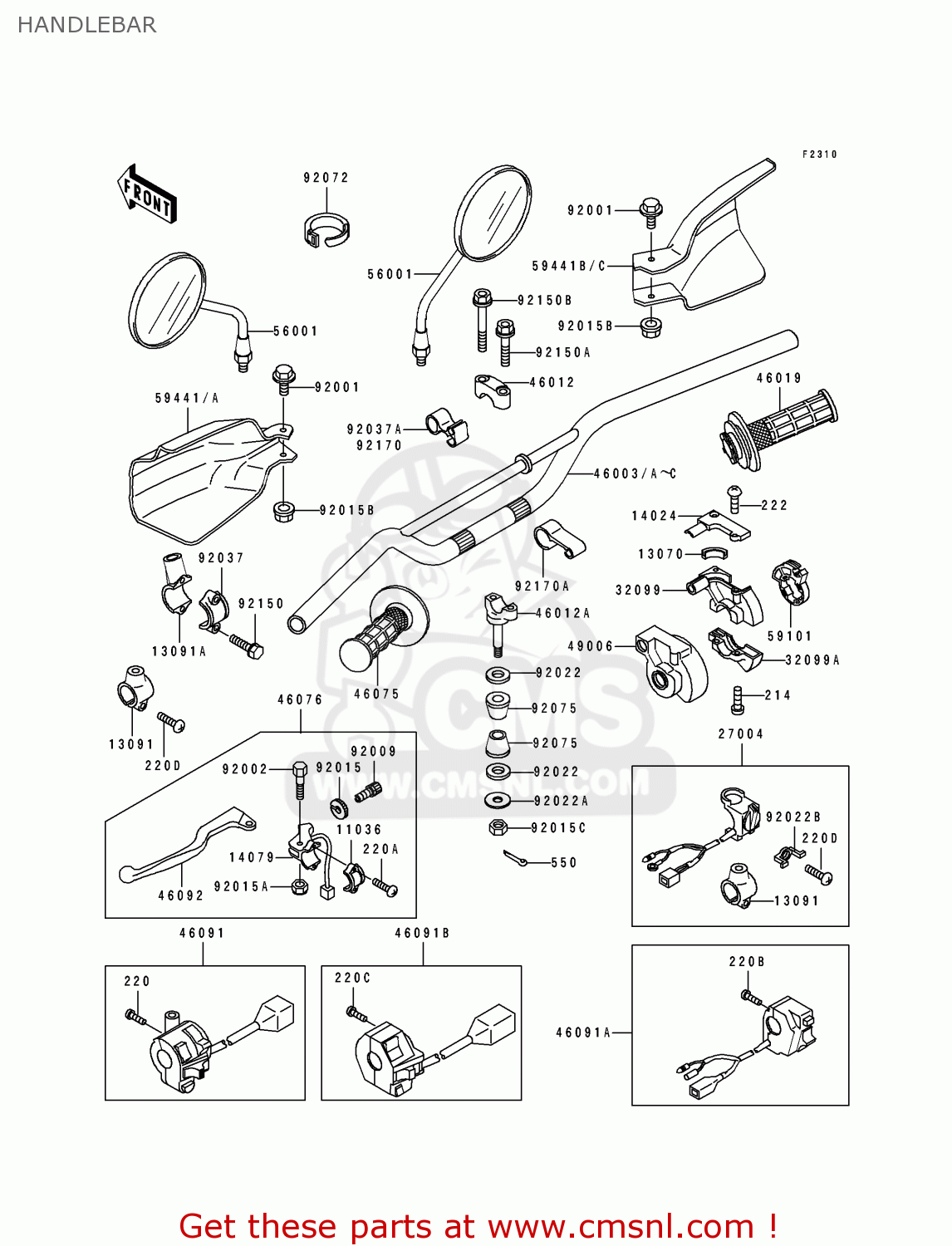

HANDLEBAR

ref

part #

description

quantity

11036

110361297
ref: 11036

BRACKET-A,LEVER HOLDE

€ 12.00

13070

130701074
ref: 13070

GUIDE,THROTTLE

€ 4.00

13091

130911255
ref: 13091

HOLDER,ENGINE STOP SW

€ 55.00

14024

140251646
ref: 14024

COVER,THROTTLE CASE U

€ 6.50

14079

140791069
ref: 14079

HOLDER-ASSY,CLUTCH

€ 36.50

27004

270041063
ref: 27004

SWITCH-ASSY,ENGINE ST

€ 62.00

32099

320991036
ref: 32099

CASE,THROTTLE UPP

€ 25.00

32099A

320991044
ref: 32099A

CASE,THROTTLE LWR

€ 13.50

46003

460031321CE
ref: 46003

HANDLE,SILVER NO.25

€ 73.00

46003A

460031321W1
ref: 46003A

HANDLE,BLUE NO.1

€ 65.00

46012

460121191
ref: 46012

HOLDER-HANDLE,UPP

€ 21.00

46012A

460121211
ref: 46012A

HOLDER-HANDLE,LWR

€ 31.00

46019

460191054
ref: 46019

GRIP-ASSY,THROTTLE

€ 27.50

46075

460751024
ref: 46075

GRIP,LH

€ 13.50

46076

460761167
ref: 46076

LEVER-ASSY-GRIP,CLUTC

€ 57.50

46091

460911540
ref: 46091

HOUSING-ASSY-CONTROL,

€ 97.50

46092

460921159
ref: 46092

LEVER-GRIP,CLUTCH

€ 13.00

49006

490061097
ref: 49006

BOOT,THROTTLE CASE

€ 12.00

56001

560011286
ref: 56001

MIRROR-ASSY

€ 40.00

59101

591011110
ref: 59101

REEL,THROTTLE

€ 7.50

59441

594411089BV
ref: 59441

COVER-HANDLE,LH,BLUE

€ 13.00

59441A

5944110896W
ref: 59441A

COVER-HANDLE,LH,L.GRE

€ 16.50

59441B

594411090BV
ref: 59441B

COVER-HANDLE,RH,BLUE

€ 13.50

59441C

5944110906W
ref: 59441C

COVER-HANDLE,RH,L.GRE

€ 14.00

92001

920011034
ref: 92001

BOLT,HEX HEAD,6X10

€ 7.00

92002

920021880
ref: 92002

BOLT,LEVER SET

€ 14.50

92009

46055009
ref: 92009

SCREW,CABLE ASJUST

€ 13.00

92015

46056006
ref: 92015

NUT,CABLE ADJUST NUT

€ 6.00

92015A

920151191
ref: 92015A

NUT,LOCK,6MM,BLACK

€ 2.00

92015B

920151603
ref: 92015B

NUT

€ 3.00

92015C

92019021
ref: 92015C

NUT,LOCK,10M/M

€ 2.00

92022

92022105
ref: 92022

WASHER,12.5X30X0.8

€ 3.00

92022A

920221088
ref: 92022A

WASHER,10.2X28X2

€ 3.00

92022B

920221474
ref: 92022B

WASHER,ENGINE STOP SW

€ 2.50

214

214C0518
ref: 214

SCREW-PAN+-

€ 2.00

220

220B0522
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220C0514
ref: 220A

SCREW-PAN-CROS

€ 1.00

220D

220C0620
ref: 220D

SCREW-PAN-CROS,6X20,B

€ 1.50

222

222E0412
ref: 222

SCREW-CSK-RD-CROS

€ 2.50

550

550D2020
ref: 550

PIN-COTTER,2.0X20

€ 0.50

92037A

920371629
ref: 92037A

CLAMP,BRAKE HOSE

€ 6.00

92072

920721237
ref: 92072

BAND,L=250

€ 2.00

92075

920751776
ref: 92075

DAMPER

€ 5.00

92150A

921501455
ref: 92150A

BOLT,FLANGED,8X30

€ 4.50

92150B

921501456
ref: 92150B

BOLT,FLANGED,8X45

€ 4.50

all assemblies
