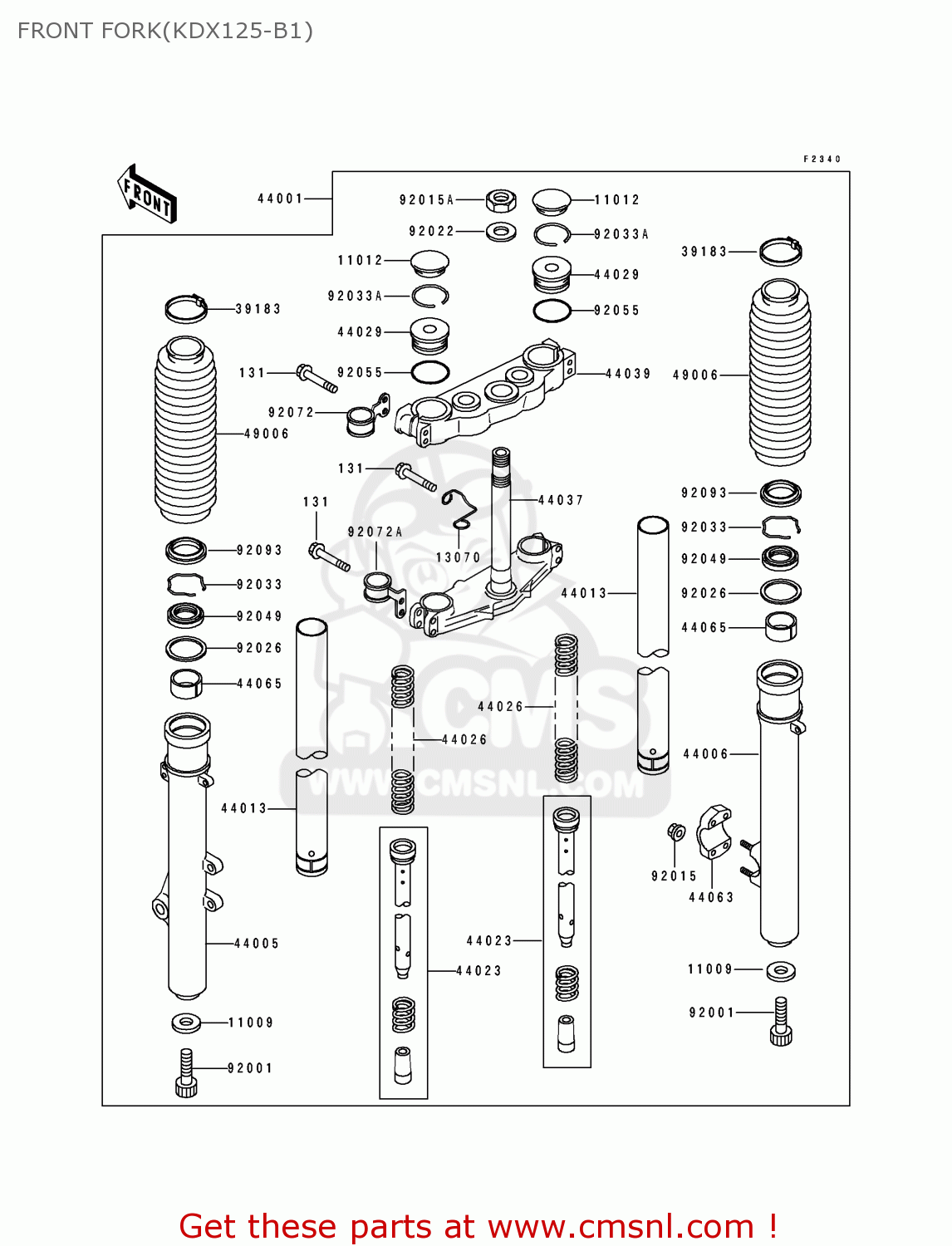

FRONT FORK(KDX125-B1)

ref

part #

description

quantity

131

131G0840
ref: 131

BOLT, 8 X 40

€ 5.50

11009

44045051
ref: 11009

GASKET,FORK CYLINDER (NAS)

€ 4.00

11012

110121561
ref: 11012

CAP,FORK TOP

€ 12.00

13070

130701234
ref: 13070

GUIDE

€ 5.50

39183

391831057
ref: 39183

BAND-ASSY

€ 4.50

44001

440011759GF
ref: 44001

FORK-FRONT,BLUE NO.32

€ 1,289.00

44005

440051307
ref: 44005

PIPE-LEFT FORK OUTER

€ 163.50

44006

440061304
ref: 44006

PIPE-RIGHT FORK OUTER

€ 178.00

44013

440131328
ref: 44013

PIPE-FORK INNER

€ 149.50

44023

440231075
ref: 44023

CYLINDER-COMP-FORK

€ 60.50

44026

440261471
ref: 44026

SPRING-FRONT FORK

€ 28.50

44029

440291144
ref: 44029

SEAT-FORK SPRING

€ 15.00

44037

440371276
ref: 44037

HOLDER-FORK UNDER

€ 277.50

44039

440391208
ref: 44039

HOLDER-FORK, UPPER

€ 128.50

44063

440631059
ref: 44063

HOLDER-FRONT AXLE

€ 33.50

44065

440651079
ref: 44065

BUSHING-FRONT FORK

€ 16.00

49006

490061262GF
ref: 49006

BOOT,FOOK,BLUE NO.32

€ 35.50

92001

920011464
ref: 92001

BOLT

€ 4.00

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92015A

920151833
ref: 92015A

NUT

€ 12.50

92022

920221385
ref: 92022

WASHER,FORK TOP

€ 5.00

92026

920261276
ref: 92026

SPACER,FORK OUTER

€ 6.50

92033

920331222
ref: 92033

RING-SNAP,FORK OUTER

€ 4.00

92033A

920331223
ref: 92033A

RING-SNAP,SPRING SEAT

€ 4.00

92049

920491368
ref: 92049

SEAL-OIL

€ 17.50

92055

920551481
ref: 92055

RING-O

€ 3.50

92072

920721271
ref: 92072

BAND

€ 13.00

92072A

920721272
ref: 92072A

BAND

€ 12.00

92093

920931311
ref: 92093

SEAL,FORK OUTER TUBE

€ 9.50
