OIL PUMP
KDX125-A4 KDX125SR 1993 EUROPE NR

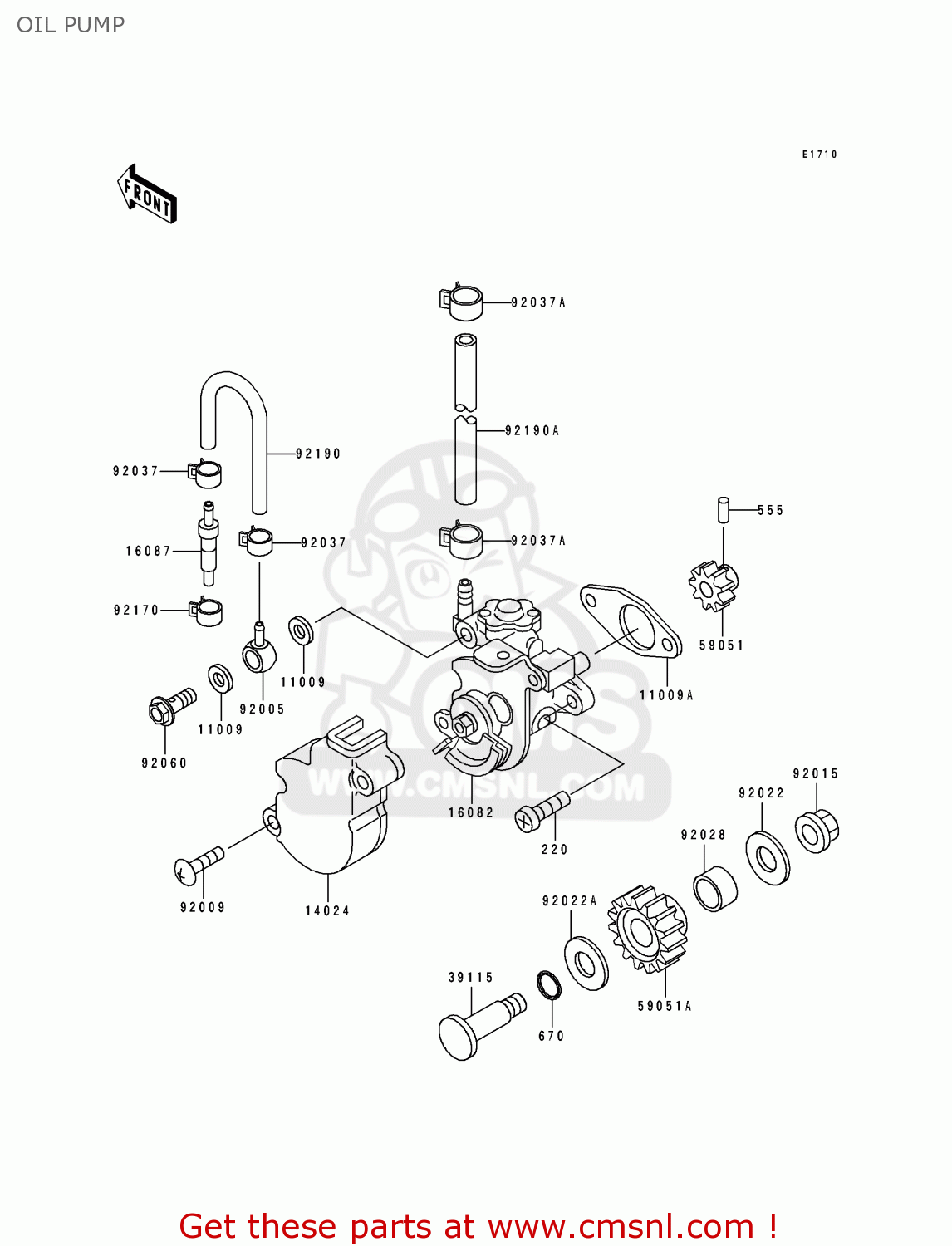

Oil pump diagram KDX125-A4 KDX125SR 1993 EUROPE NR
OIL PUMP KDX125-A4 KDX125SR 1993 EUROPE NR
×
prices are in EUR
ref
part #
description
quantity
220
220B0516
ref: 220
SCREW-PAN-CROS
€ 2.50
555
555A0312
ref: 555
PIN-SPRING
€ 1.00
670
670B1507
ref: 670
O RING,7MM
€ 1.00
11009
110091298
ref: 11009
GASKET,6X12X10 (NAS)
€ 3.00
11009A
110091937
ref: 11009A
GASKET,OIL PUMP (NAS)
€ 3.00
14024
140241910
ref: 14024
COVER,OIL PUMP
€ 14.00
16082
160821107
ref: 16082
PUMP-ASSY-OIL
€ 232.00
16087
160871001
ref: 16087
VALVE-CHECK
€ 18.50
39115
391151064
ref: 39115
SHAFT-IDLER
€ 5.00
59051
590511226
ref: 59051
GEAR-SPUR,OIL PUMP,9T
€ 23.50
59051A
590511227
ref: 59051A
GEAR-SPUR,PUMP IDLE,1
€ 23.50
92005
920051146
ref: 92005
FITTING
€ 10.00
92009
920091491
ref: 92009
SCREW,5X20,WHITE
€ 2.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92022
920221369
ref: 92022
WASHER,6.2X18X1.2
€ 0.50
92022A
920221475
ref: 92022A
WASHER,8.5X16X0.5
€ 2.50
92028
920281589
ref: 92028
BUSHING,8X12X8.8
€ 5.00
92037
920371260
ref: 92037
CLAMP,OIL PUMP
€ 2.50
92037A
920371601
ref: 92037A
CLAMP
€ 9.00
92060
92060013
ref: 92060
BOLT-BANJO,6MM
€ 4.00
92170
921702043
ref: 92170
CLAMP
€ 1.00
92190
921901191
ref: 92190
TUBE, 3X6X120
€ 17.00
92190A
921901210
ref: 92190A
TUBE
€ 7.50
