FRONT HUB
KDX125-A4 KDX125SR 1993 EUROPE NR

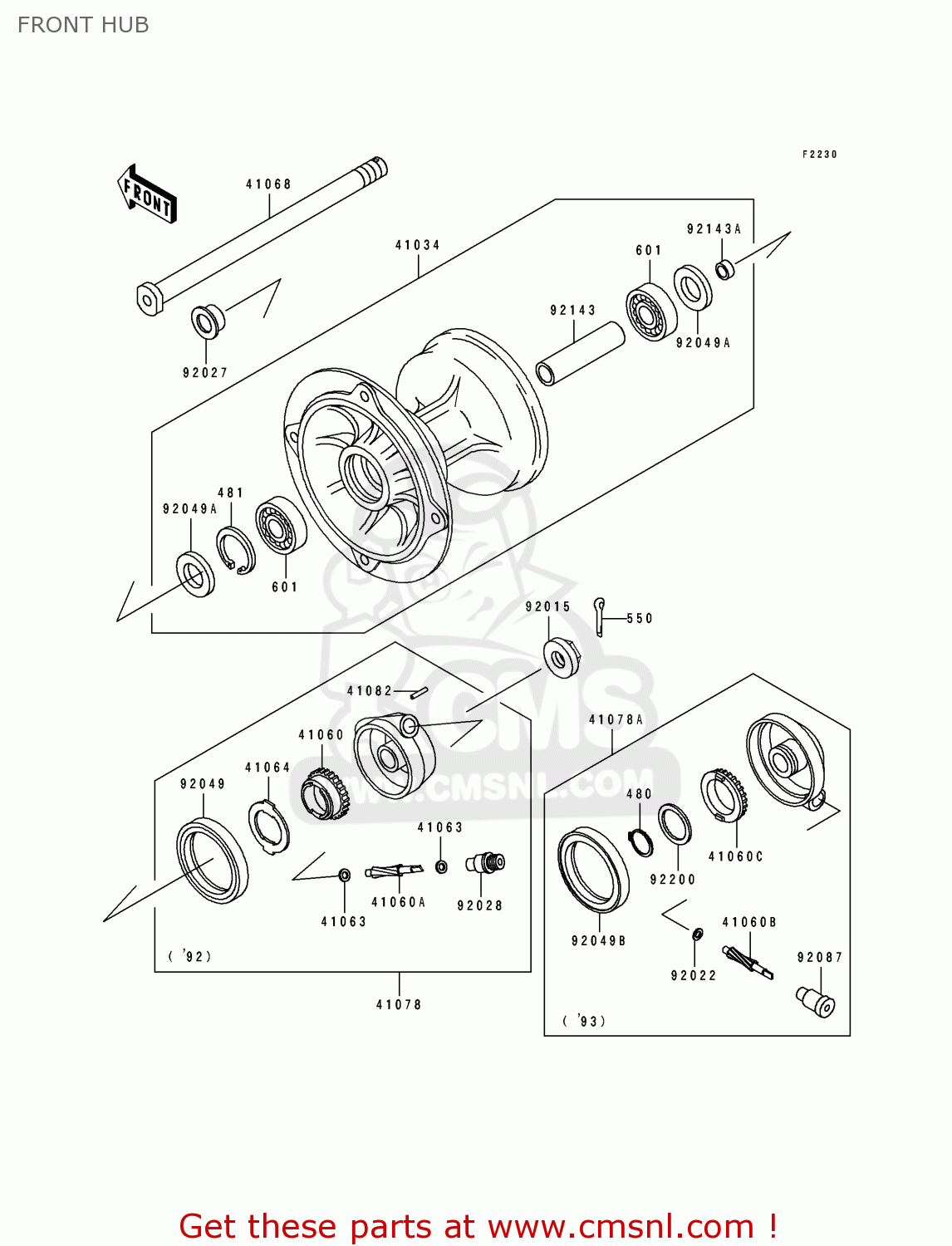

Front hub diagram KDX125-A4 KDX125SR 1993 EUROPE NR
FRONT HUB KDX125-A4 KDX125SR 1993 EUROPE NR
×
prices are in EUR
ref
part #
description
quantity
480
480J2400
ref: 480
CIRCLIP-TYPE-C,24MM
€ 3.50
481
481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
€ 1.00
550
550D3025
ref: 550
PIN-COTTER,3.0X25
€ 0.50
601
601B6202UG
ref: 601
BEARING BALL
€ 19.50
41034
410341218
ref: 41034
DRUM-ASSY,FRONT BRAKE
€ 376.00
41060B
410601145
ref: 41060B
GEAR-METER SCREW,8T
€ 16.50
41060C
410601146
ref: 41060C
GEAR-METER SCREW,24T
€ 26.00
41068
410681309
ref: 41068
AXLE,FR
€ 46.00
41078A
410781089
ref: 41078A
CASE-ASSY-METER GEAR
€ 94.00
92015
920151407
ref: 92015
NUT,14MM
€ 6.50
92022
920221511
ref: 92022
WASHER,5X9.5X0.8
€ 2.50
92027
920271959
ref: 92027
COLLAR,L=12
€ 10.50
92049A
920491176
ref: 92049A
SEAL-OIL,MH20354.5
€ 10.00
92049B
920491399
ref: 92049B
SEAL-OIL,SDD 50 62 7
€ 13.00
92087
920871060
ref: 92087
BUSHING-METER GEAR
€ 12.50
92143
921431452
ref: 92143
COLLAR,FR BRAKE DRUM,
€ 10.50
92143A
921431453
ref: 92143A
COLLAR,FR AXLE,L=5
€ 7.00
92200
922001137
ref: 92200
WASHER,24X31X0.8
€ 2.50
