CRANKCASE
KD80-N1 KD80X 1988 USA CANADA

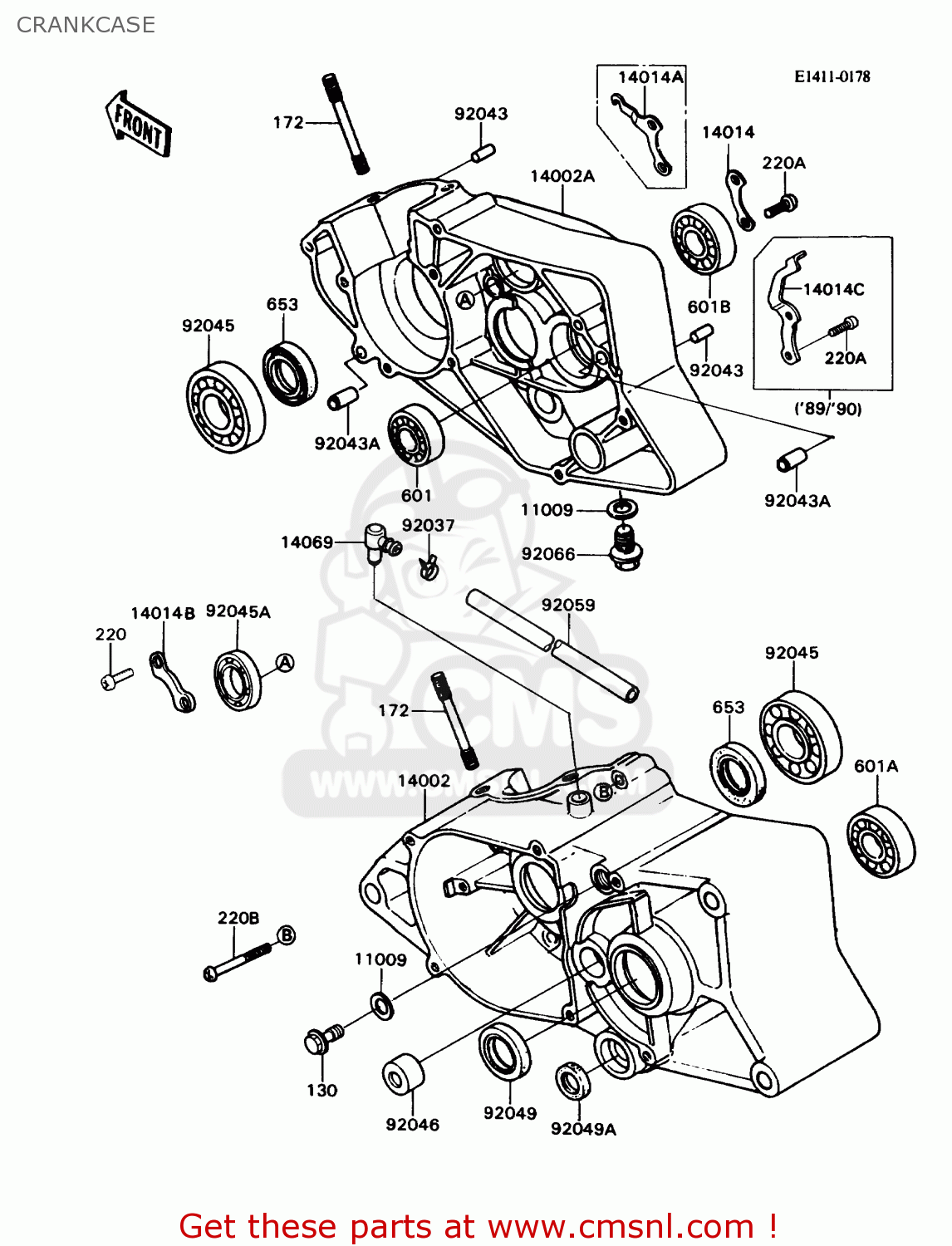

Crankcase diagram KD80-N1 KD80X 1988 USA CANADA
CRANKCASE KD80-N1 KD80X 1988 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130H1020
ref: 130
BOLT-FLANGED
€ 3.50
172
172G0895
ref: 172
STUD,8X95
€ 2.00
220
220B0610
ref: 220
SCREW-PAN HEAD,6X10
€ 2.00
220A
220B0614
ref: 220A
SCREW-PAN HEAD,6X14
€ 2.00
220B
220C0640
ref: 220B
SCREW-PAN-CROS,6X40,B
€ 2.50
601
601B6201
ref: 601
BEARING-BALL,#6201C3
€ 7.00
601A
601B6203
ref: 601A
BEARING-BALL,#6203C3
€ 10.50
601B
601B6203Z
ref: 601B
BEARING-BALL,#6203ZC3
€ 24.00
653
653B203508
ref: 653
OIL SEAL,TB20358
€ 12.00
11009
92065058
ref: 11009
GASKET, 10,5X16X1 (NAS)
€ 2.50
14002
140021475
ref: 14002
CRANKCASE,LH
€ 121.50
14002A
140021521
ref: 14002A
CRANKCASE,LH
€ 125.00
14014
140141014
ref: 14014
PLATE-POSITION
€ 2.50
14014A
140141061
ref: 14014A
PLATE-POSITION
€ 2.00
14014B
140141093
ref: 14014B
PLATE-POSITION,CHANGE
€ 3.50
14069
14069003
ref: 14069
BREATHER
€ 7.00
92037
920371461
ref: 92037
CLAMP,TUBE
€ 1.00
92043
920431262
ref: 92043
PIN,DOWEL,4.2X6X12
€ 2.50
92043A
920431263
ref: 92043A
PIN,DOWEL,6.2X8X14
€ 0.50
92045
920451059
ref: 92045
BEARING-BALL,R-6304C3
€ 29.00
92045A
920451171
ref: 92045A
BEARING-BALL,6804
€ 30.00
92046
920461034
ref: 92046
BEARING-NEEDLE,BK1312
€ 18.00
92049
920491048
ref: 92049
OIL SEAL,SC22325
€ 6.00
92049A
92051005A
ref: 92049A
OIL SEAL,TB13225.5
€ 5.50
92059
92059103
ref: 92059
TUBE,BREATHER
€ 9.00
92066
920661241
ref: 92066
PLUG
€ 4.00
