CARBURETOR
KD80-N1 KD80X 1988 USA CANADA

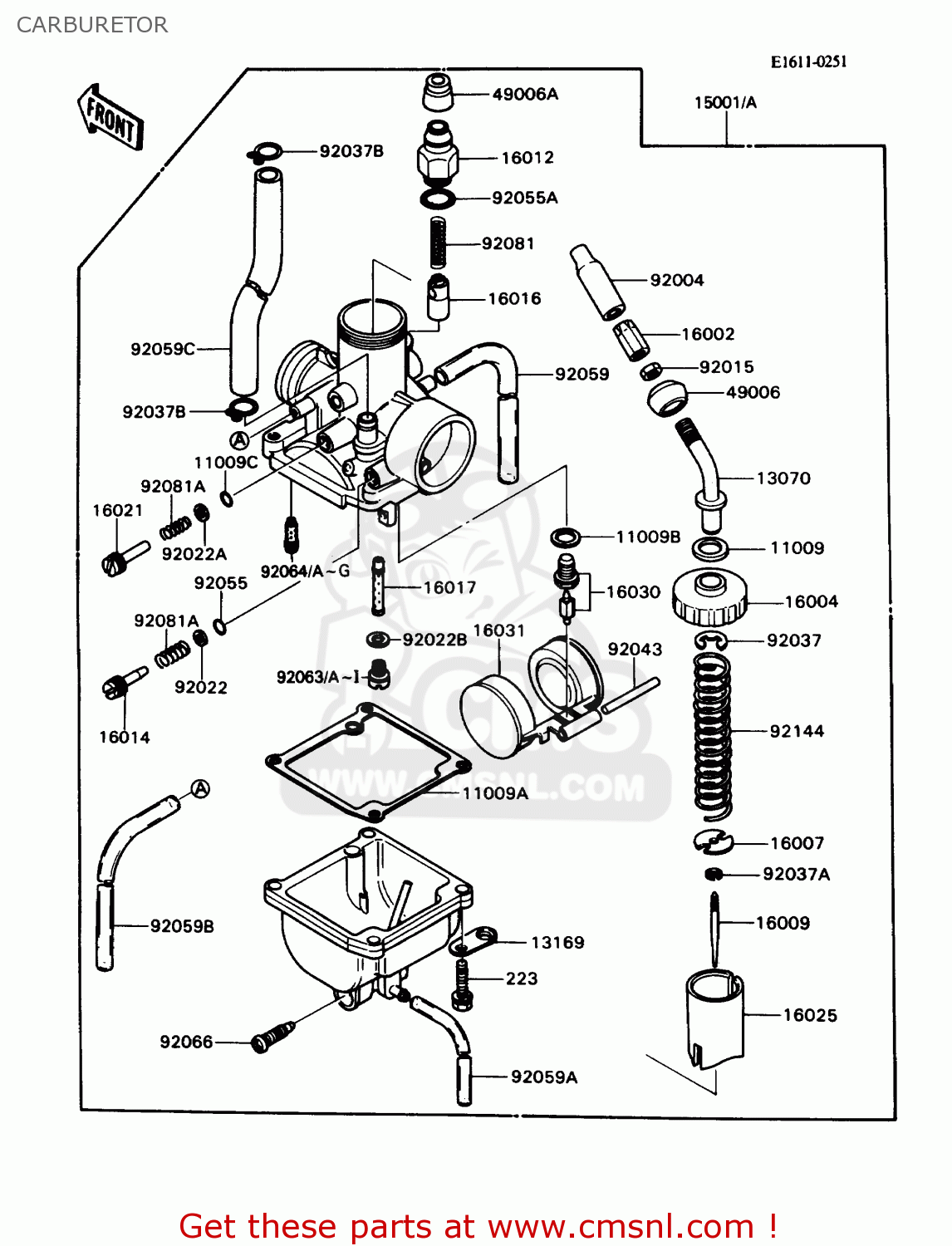

Carburetor diagram KD80-N1 KD80X 1988 USA CANADA
CARBURETOR KD80-N1 KD80X 1988 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091074
ref: 11009
GASKET,CABLE GUIDE (NAS)
€ 8.50
11009A
110091250
ref: 11009A
GASKET,FLOAT CHAMBER (NAS)
€ 6.50
11009B
16029002
ref: 11009B
WASHER-VALVE SEAT
€ 2.50
11009C
16038022
ref: 11009C
GASKET,O-RING
€ 4.50
13070
130701068
ref: 13070
THROTTLE CABLE GUIDE
€ 20.00
13169
131691226
ref: 13169
PLATE,TUBE CLAMP
€ 5.00
15001
150011411
ref: 15001
US
CARBURETOR ASSEMBLY
€ 118.00
15001A
150011456
ref: 15001A
CN
CARBURETOR-ASSY
€ 0.00
16002
160021011
ref: 16002
CABLE ADJUSTER
€ 6.50
16004
160041062
ref: 16004
MIXING CHAMBER CAP
€ 20.50
16007
160071044
ref: 16007
SEAT-SPRING
€ 3.50
16009
160091466
ref: 16009
JET,NEEDLE,#3G23-4
€ 20.00
16012
160121058
ref: 16012
CAP-STARTER PLUNGER
€ 21.00
16014
160141060
ref: 16014
PILOT AIR SCREW
€ 9.00
16016
16016002
ref: 16016
PLUNGER,STARTER
€ 20.00
16017
160171347
ref: 16017
JET,NEEDLE,D-8
€ 23.50
16021
160211113
ref: 16021
THROTTLE STOP SCREW
€ 9.00
16025
160251152
ref: 16025
THROTTLE VALVE,CA3.0
€ 66.00
16030
160301065
ref: 16030
FLOAT VALVE,#1.5
€ 28.50
16031
160311068
ref: 16031
FLOAT
€ 44.00
49006
490061083
ref: 49006
MIXING CHAMBER CAP BOOT
€ 4.50
49006A
490061203
ref: 49006A
BOOT
€ 9.50
92004
920061084
ref: 92004
CABLE ADJUSTER STUD
€ 4.50
92015
16003004
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92022
920221187
ref: 92022
WASHER,ADJUST SCREW
€ 4.00
92022A
920221698
ref: 92022A
THROTTLE STOP WASHER
€ 2.50
92022B
920221938
ref: 92022B
WASHER
€ 3.00
92037
16008011
ref: 92037
CLAMP,CABLE GUIDE
€ 4.50
92037A
920371272
ref: 92037A
CLAMP
€ 4.00
92037B
920371573
ref: 92037B
TUBE CLAMP
€ 2.50
92043
16032003
ref: 92043
FLOAT PIN
€ 4.00
92055
920551078
ref: 92055
O RING,PILOT SCREW
€ 4.00
92055A
920551417
ref: 92055A
PLUNGER O-RING
€ 3.50
92059
920591430
ref: 92059
TUBE,3X5X320
€ 5.50
92059A
920591432
ref: 92059A
TUBE,3X5X250
€ 5.50
92059B
920591933
ref: 92059B
TUBE,3X5X350
€ 5.50
92059C
920591943
ref: 92059C
TUBE,5.3X10.5X115
€ 17.00
92063
92063093
ref: 92063
US
MAIN JET,#85R
€ 10.50
92063A
92063094
ref: 92063A
CN
JET-MAIN,#87.5R
€ 11.00
92063B
920631029
ref: 92063B
CN
JET-MAIN,#A90R
€ 10.50
92063C
920631031
ref: 92063C
CN
MAIN JET,#95R
€ 10.00
92063D
920631085
ref: 92063D
CN
JET,MAIN,#A92.5R
€ 8.00
92063E
92063109
ref: 92063E
US
JET-MAIN,#75R
€ 10.50
92063F
92063122
ref: 92063F
US
MAIN JET,#77.5R
€ 10.00
92063G
92063123
ref: 92063G
US
MAIN JET,#80R
€ 11.00
92063H
92063124
ref: 92063H
US
MAIN JET,#82.5R
€ 10.50
92063I
920631323
ref: 92063I
CN
JET-MAIN,#A85R
€ 10.50
92064
92064020
ref: 92064
JET-PILOT,#17.5
€ 13.50
92064A
92064021
ref: 92064A
US
PILOT JET #20 ISO
€ 12.00
92064B
92064021
ref: 92064B
CN
PILOT JET #20 ISO
€ 12.00
92064C
92064032
ref: 92064C
PILOT JET #25
€ 12.50
92064D
92064040
ref: 92064D
CN
JET-PILOT,#22.5
€ 11.50
92064E
92064040
ref: 92064E
US
JET-PILOT,#22.5
€ 11.50
92064F
92064047
ref: 92064F
US
PILOT JET, #A15
€ 13.00
92064G
920641033
ref: 92064G
CN
JET-PILOT,#27.5
€ 11.50
223
223B0416
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
92066
920661187
ref: 92066
DRAIN PLUG
€ 10.50
92081
16013005
ref: 92081
SPRING-STARTER PLUNG
€ 3.00
92081A
920811153
ref: 92081A
SPRING,AIR SCREW
€ 3.00
92144
921441271
ref: 92144
THROTTLE VALVE SPRING
€ 5.50
