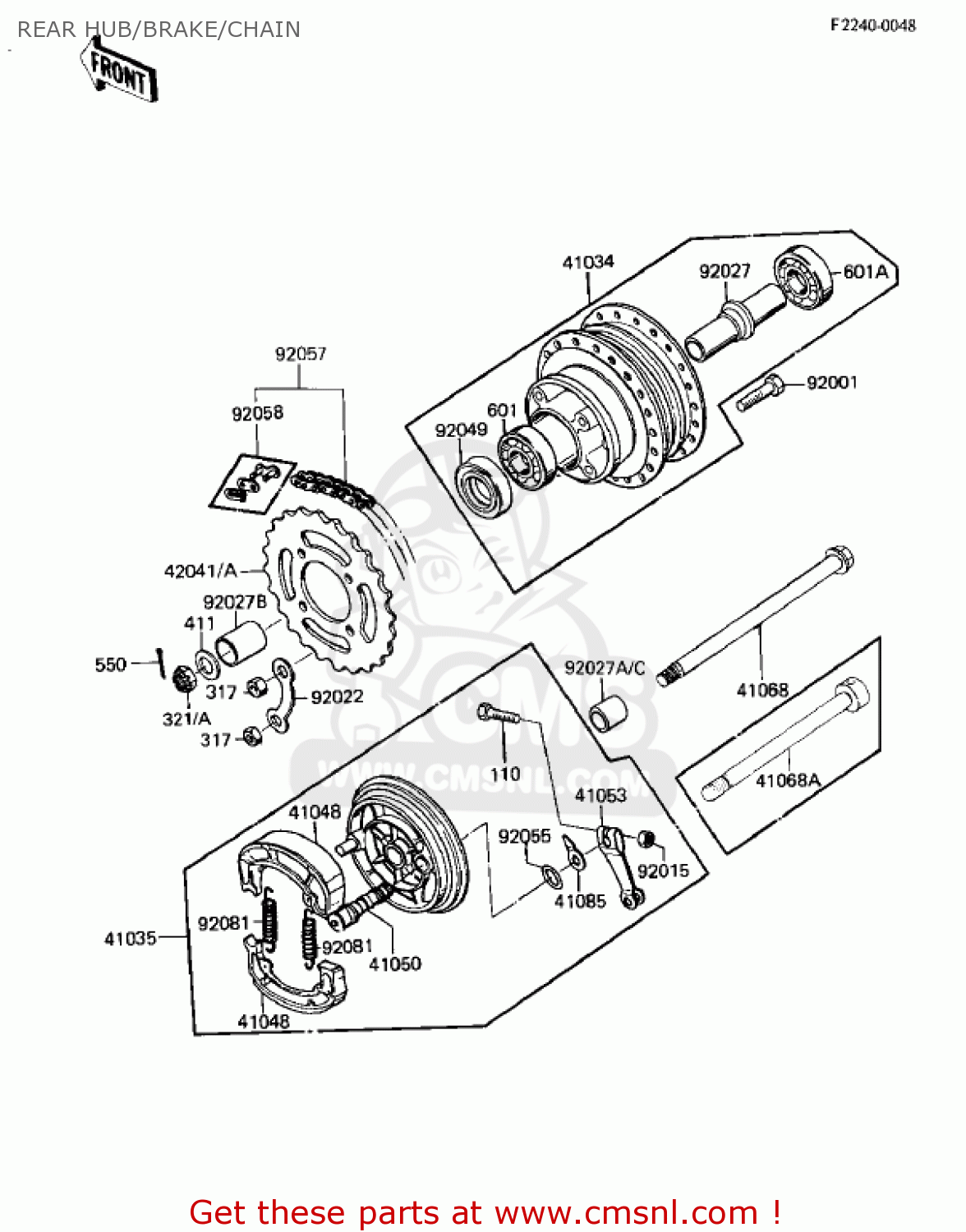

REAR HUB/BRAKE/CHAIN

ref

part #

description

quantity

41034

41034100280
ref: 41034

DRUM ASSY,RR BRK,BUFF

€ 264.50

41035

4200606380
ref: 41035

PANEL ASSY,REAR BRAKE

€ 174.50

41048

410481085
ref: 41048

SHOE-BRAKE (NAS)

€ 13.00

41050

42026018
ref: 41050

CAM-BRAKE

€ 19.50

41053

42029027
ref: 41053

LEVER-BRAKE CAM

€ 16.50

41068

410681091
ref: 41068

AXLE,12X206

€ 24.00

41068A

410681091
ref: 41068A

AXLE,12X206

€ 24.00

41085

41085003
ref: 41085

INDICATOR,BRAKE SHOE

€ 9.00

42041

42041020
ref: 42041

REAR SPROCKET 37T

€ 34.50

42041A

42041045
ref: 42041A

REAR SPROCKET 39T

€ 20.50

92001

92001021
ref: 92001

BOLT-REAR SPROCKET

€ 3.50

92015

41072007
ref: 92015

NUT,6MM

€ 2.50

92022

92088003
ref: 92022

WASHER,SPROCKET LOCK

€ 3.00

92027

42010003
ref: 92027

COLLAR,L=85

€ 6.50

92027A

42032002
ref: 92027A

COLLAR,12.2X22X30.5

€ 9.00

92027B

42032044
ref: 92027B

COLLAR,L=14

€ 6.00

92027C

920271478
ref: 92027C

COLLAR,12.2X22X30.5

€ 6.00

92049

92052001
ref: 92049

OIL SEAL-RR BRK DRUM

€ 6.50

92055

92055004
ref: 92055

RING-O,BRAKE CAM

€ 3.00

92057

920571092
ref: 92057

DRIVE CHAIN,EK428 98L

€ 46.50

92058

920581014
ref: 92058

JOINT-CHAIN,EK428-G

€ 3.50

92081

920811766
ref: 92081

SPRING,BRAKE SHOE

€ 5.50

110

112G0630
ref: 110

BOLT-UPSET

€ 1.00

317

317B0800
ref: 317

NUT,8M/M

€ 0.50

321

321B1200
ref: 321

NUT-CASTLE

€ 2.50

321A

321B1200
ref: 321A

NUT-CASTLE

€ 2.50

411

411B1200
ref: 411

WASHER-PLAIN,12MM

€ 0.50

550

550D3025
ref: 550

PIN-COTTER,3.0X25

€ 0.50

601

601B6301
ref: 601

BEARING-BALL,#6301C3

€ 13.00

601A

601B6301Z
ref: 601A

BEARING-BALL,#6301ZC3

€ 15.00
