FRAME/FRAME FITTINGS

KD80-M3 KD80 1982 USA CN

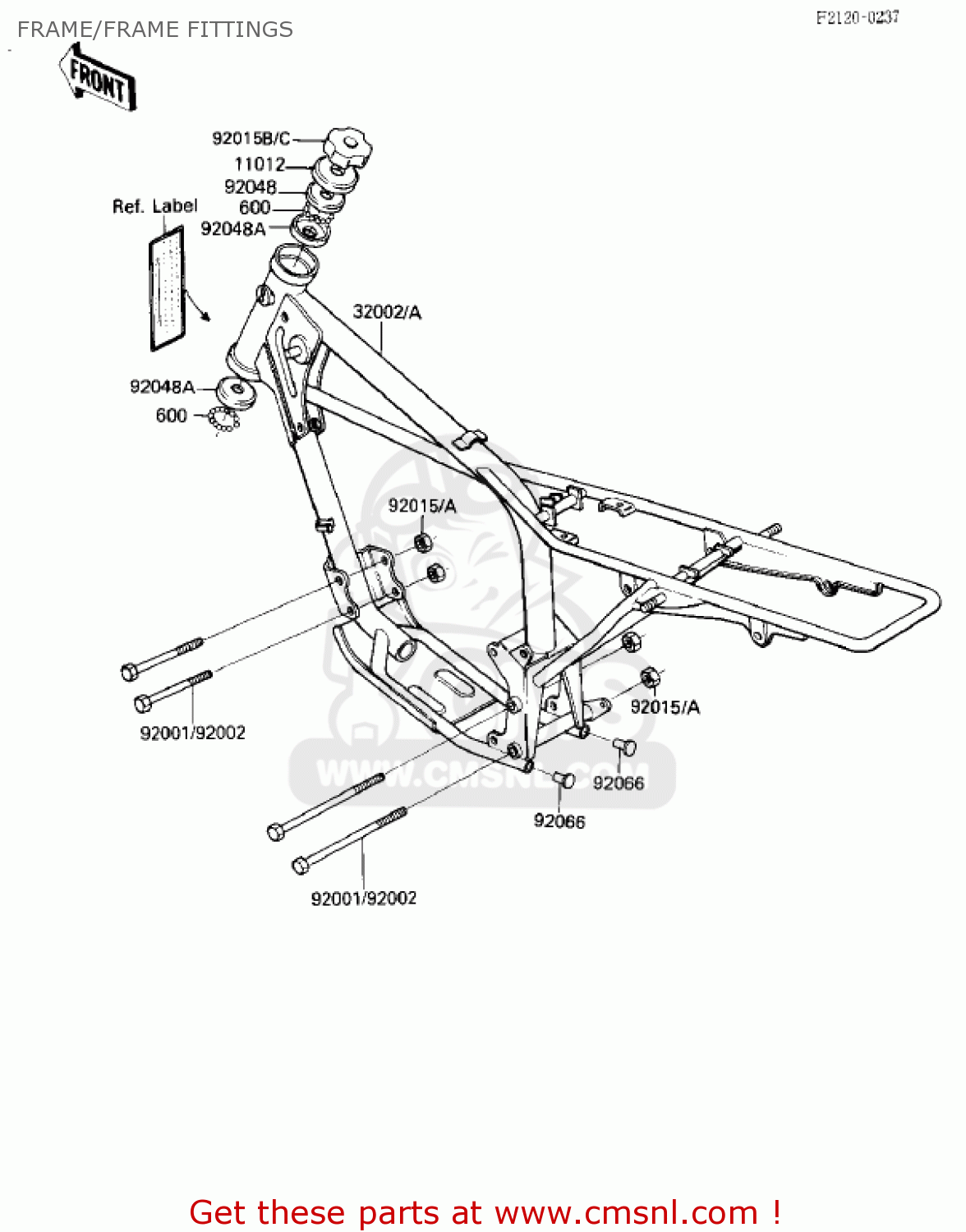

Frame/frame fittings diagram KD80-M3 KD80 1982 USA CN

prices are in EUR

ref

part #

description

quantity

11012

46098004
ref: 11012

CAP-STEERING STEM

€ 4.00

32002

320021122
ref: 32002

FRAME

€ 338.00

32002A

320021707
ref: 32002A

FRAME,COMPLETE

€ 424.50

92001

920011245
ref: 92001

BOLT,HEX HEAD, 10X115

€ 7.00

92002

920021072
ref: 92002

BOLT,10X115

€ 7.00

92015

920151428
ref: 92015

NUT,FLANGED,10MM

€ 3.00

92015A

920151180
ref: 92015A

NUT,FLANGED,10MM,BLAC

€ 2.50

92015B

920151382
ref: 92015B

NUT,STEERING STEM LOC

€ 10.50

92015C

92090006
ref: 92015C

NUT-STEERING STEM LCK

€ 10.50

92048

92047005
ref: 92048

CONE-UPPER BEARING

€ 10.50

92048A

92048004
ref: 92048A

RACE-BEARING

€ 10.00

92066

32112001
ref: 92066

PLUG

€ 2.50

600

600A0600
ref: 600

BALL-STEEL,3/16

€ 0.50
