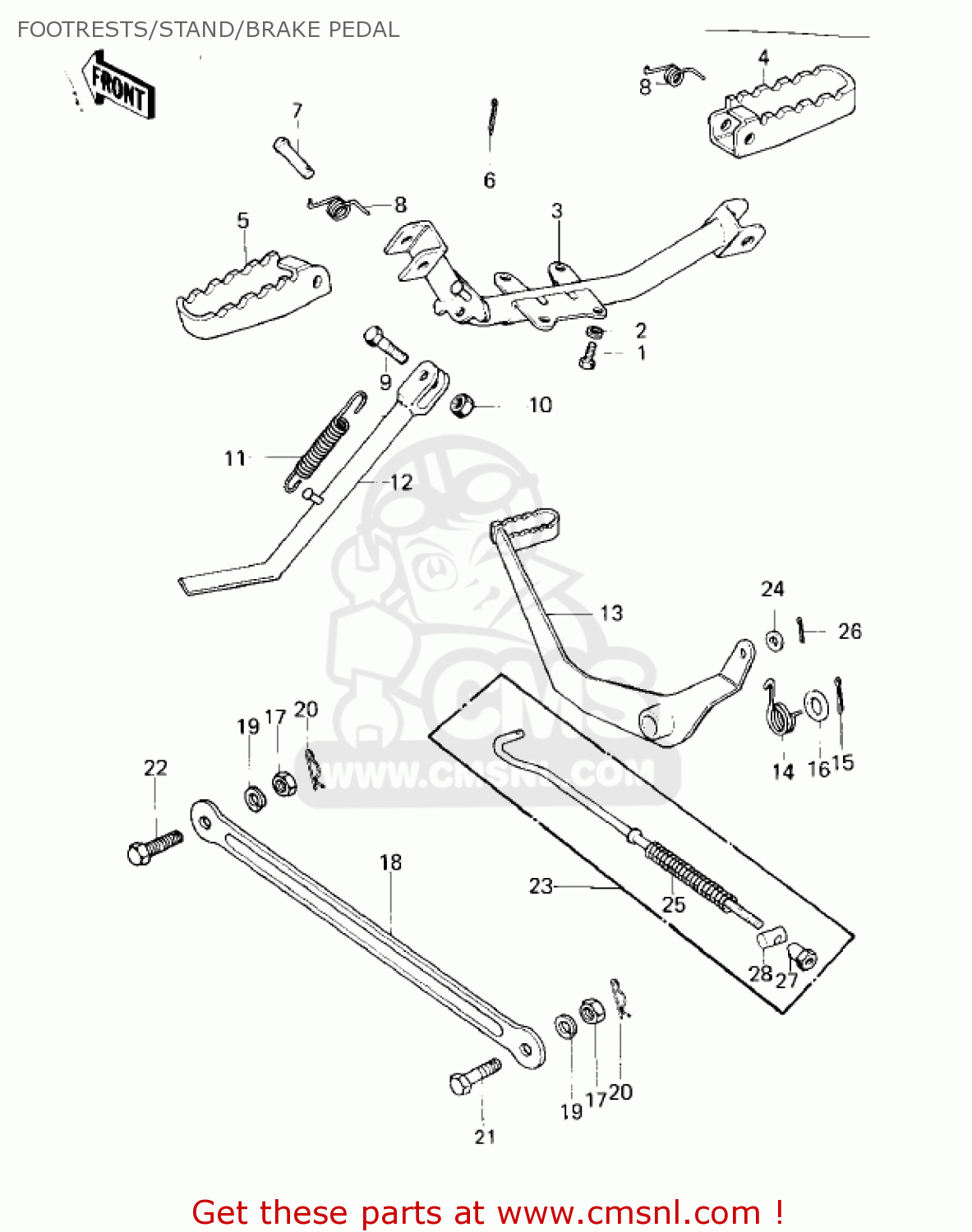

FOOTRESTS/STAND/BRAKE PEDAL

ref

part #

description

quantity

1

115G0818
ref: 1

BOLT SMALL-UPSET

€ 2.50

2

461F0800
ref: 2

WASHER-SPRING,8MM

€ 0.50

3

34002047
ref: 3

HOLDER-STEP

€ 77.50

4

34028023
ref: 4

FOOTREST BAR,RH

€ 61.00

5

34028024
ref: 5

FOOTREST BAR,LH

€ 40.50

6

550D2516
ref: 6

PIN-COTTER,2.5X16

€ 1.50

7

92043080
ref: 7

PIN-FOOTREST BAR FIT

€ 3.50

8

92083027
ref: 8

FOOTREST BAR SPRING

€ 23.00

9

113G1028
ref: 9

BOLT,HEX HEAD,10X28

€ 4.50

10

314B1000
ref: 10

NUT,10MM

€ 0.50

11

34023005
ref: 11

SPRING-MAIN STAND

€ 6.50

12

340241013
ref: 12

STAND-SIDE

€ 30.00

13

43001062
ref: 13

LEVER-BRAKE,PEDAL

€ 30.00

14

43005020
ref: 14

SPRING,BRAKE PEDAL

€ 4.00

15

550D3030
ref: 15

PIN-COTTER,3.0X30

€ 1.50

16

92022085
ref: 16

WASHER,15.3X24X1.2

€ 2.50

17

314B1000
ref: 17

NUT,10MM

€ 0.50

18

43007037
ref: 18

ROD-TORQUE

€ 7.50

19

461F1000
ref: 19

WASHER-SPRING,10MM

€ 0.50

20

554A0800
ref: 20

PIN-SNAP,8MM

€ 1.00

21

92003003
ref: 21

BOLT-HEX HEAD,10X32

€ 4.00

22

92003017
ref: 22

BOLT-TRQ LINK 10X25

€ 3.50

23

430105004
ref: 23

ROD-ASSY-BRAKE

€ 15.50

24

410B0600
ref: 24

WASHER-PLAIN-SMALL,6M

€ 0.50

25

43012001
ref: 25

SPRING,BRAKE ROD

€ 3.00

26

550D2015
ref: 26

PIN-COTTER,2.0X15

€ 1.00

27

92015042
ref: 27

NUT-BRAKE ROD ADJUST

€ 4.00

28

92043039
ref: 28

PIN,BRAKE ROD

€ 4.50
