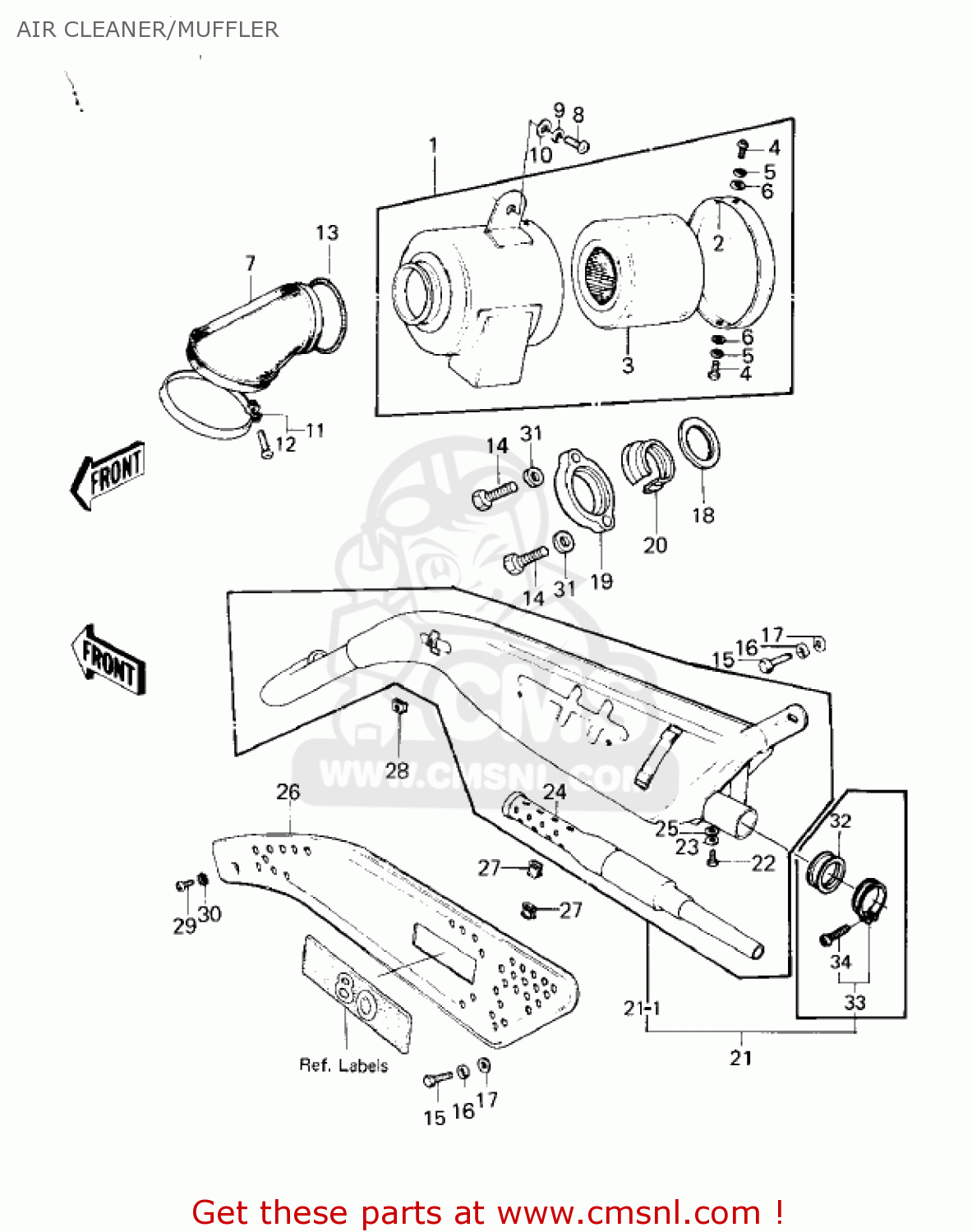

AIR CLEANER/MUFFLER

ref

part #

description

quantity

1

1101006810
ref: 1

AIR CLEANER ASSY,BLAK

€ 98.50

2

11012041
ref: 2

CAP,AIR FILTER

€ 8.50

3

11013044
ref: 3

ELEMENT-AIR FILTER

€ 8.00

4

220B0508
ref: 4

SCREW-PAN-CROS,5X8

€ 0.50

5

461F0500
ref: 5

WASHER-SPRING,5MM

€ 0.50

6

410B0500
ref: 6

WASHER-PLAIN-SMALL,5M

€ 0.50

7

11026009
ref: 7

DUCT,AIR FILTER

€ 8.50

8

220B0612
ref: 8

SCREW-PAN HEAD,6X12

€ 1.00

9

461F0600
ref: 9

WASHER-SPRING,6MM

€ 0.50

10

410B0600
ref: 10

WASHER-PLAIN-SMALL,6M

€ 0.50

11

92037068
ref: 11

CLAMP

€ 7.50

12

220B0635
ref: 12

SCREW-PAN HEAD,6X35

€ 1.00

13

92081047
ref: 13

SPRING,COIL

€ 7.50

14

112G0635
ref: 14

BOLT-UPSET,6X35

€ 2.50

15

115G0816
ref: 15

BOLT-HEX,HEAD 8X16

€ 0.50

16

461F0800
ref: 16

WASHER-SPRING,8MM

€ 0.50

17

411B0800
ref: 17

WASHER-PLAIN,8MM

€ 0.50

18

110091866
ref: 18

GASKET,EXHAUST PIPE H (NAS)

€ 7.50

19

1806903521
ref: 19

HOLDER-EXHAUST PIPE

€ 33.00

20

18070005
ref: 20

COLLAR,EXHAUST PIPE H

€ 7.00

21

180011113
ref: 21

MUFFLER ASSEMBLY

€ 125.50

21-1

180015116
ref: 21-1

MUFFLER

€ 195.50

22

112G0610
ref: 22

BOLT,6X10

€ 0.50

23

410B0600
ref: 23

WASHER-PLAIN-SMALL,6M

€ 0.50

24

490991027
ref: 24

BAFFLE-PIPE MUFFLER

€ 122.00

25

92022183
ref: 25

WASHER,6.2X11X1.5

€ 2.50

26

18064018
ref: 26

COVER,MUFFLER

€ 24.00

27

18065007
ref: 27

INSULATOR,HEAT

€ 3.00

28

18065009
ref: 28

INSULATOR,HEAT

€ 3.00

29

220B0612
ref: 29

SCREW-PAN HEAD,6X12

€ 1.00

30

463H0600
ref: 30

WASHER-LOCK,6MM

€ 0.50

31

461F0600
ref: 31

WASHER-SPRING,6MM

€ 0.50

32

920931042
ref: 32

SEAL,BAFFLETUBE

€ 13.50

33

92037178
ref: 33

CLAMP

€ 7.00

34

220B0525
ref: 34

SCREW-PAN-CROS,5X25

€ 2.50
