TRANSMISSION/CHANGE DRUM
KD125-A5 1979 USA CANADA

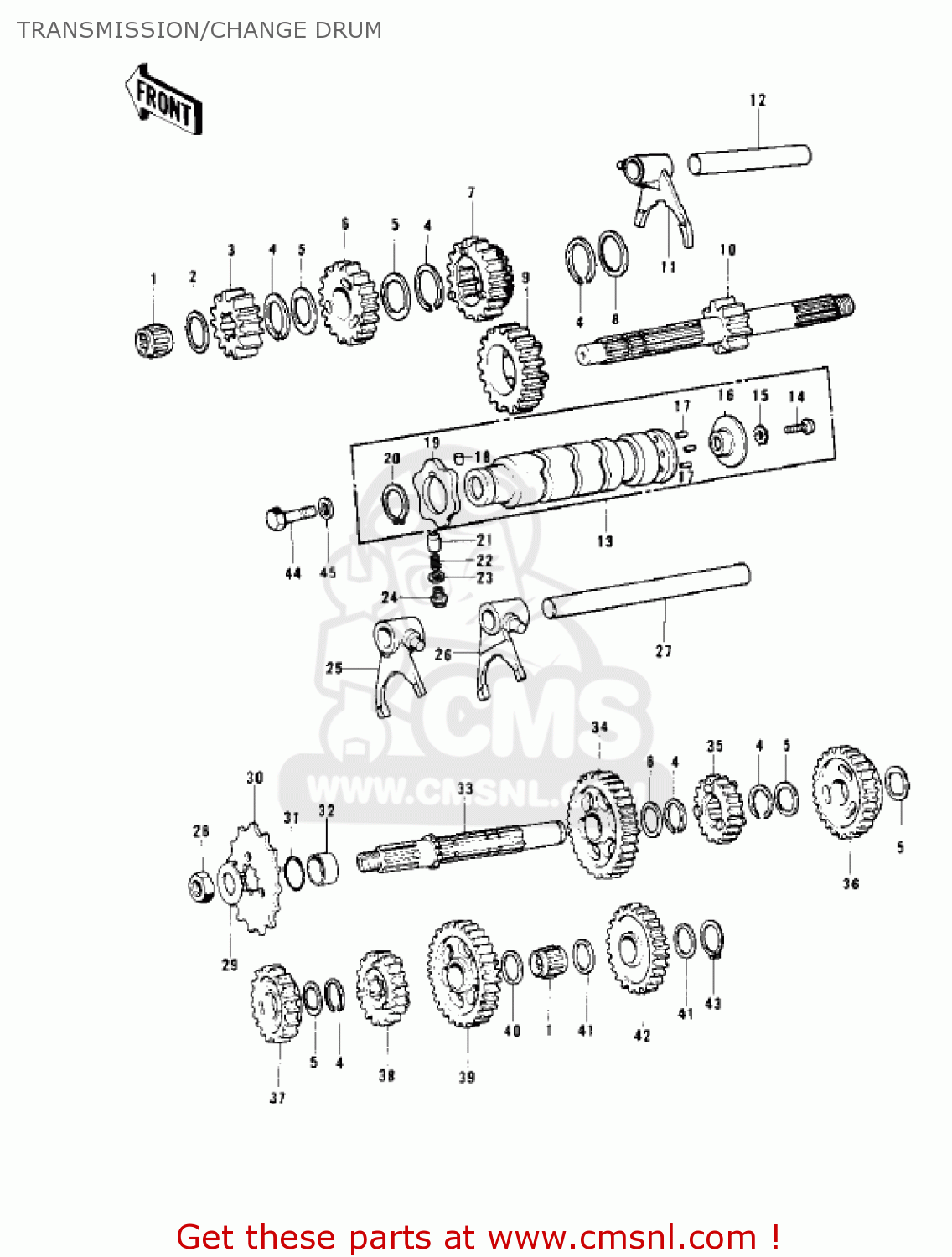

Transmission/change drum diagram KD125-A5 1979 USA CANADA
TRANSMISSION/CHANGE DRUM KD125-A5 1979 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92046037
ref: 1
BEARING-NEEDLE,7E-HK1
€ 17.00
2
92022272
ref: 2
WASHER,PLAIN
€ 6.00
3
13130036
ref: 3
2ND GEAR,DRIVE SHAFT
€ 25.00
4
92033028
ref: 4
CIRCLIP
€ 6.00
5
92024055
ref: 5
WASHER,TOOTHED,18.5X2
€ 2.50
6
131291019
ref: 6
KD125/A2
TOP GEAR,DRIVE SHAFT
€ 41.00
6
131291021
ref: 6
KD125-A3
GEAR,INPUT TOP,20T
€ 57.00
6
131291021
ref: 6
KD125-A4/A5
GEAR,INPUT TOP,20T
€ 57.00
7
131291008
ref: 7
KD125/A2
3RD & 4TH GEAR,DRV SH
€ 23.50
7
131291010
ref: 7
KD125-A3
GEAR,INPUT 3RD&4TH,16
€ 86.50
7
131291010
ref: 7
KD125-A4/A5
GEAR,INPUT 3RD&4TH,16
€ 86.50
8
92022271
ref: 8
WASHER,PLAIN
€ 3.50
9
131291016
ref: 9
KD125/A2
5TH GEAR,DRIVE SHAFT
€ 46.50
9
131291018
ref: 9
KD125-A3
5TH GEAR, DRIVE SHAFT
€ 50.50
9
131291018
ref: 9
KD125-A4/A5
5TH GEAR, DRIVE SHAFT
€ 50.50
10
13127045
ref: 10
SHAFT,DRIVE,10T
€ 97.00
11
13140060
ref: 11
FORK-SHIFT,5TH&TOP
€ 49.00
12
13209014
ref: 12
ROD-SHIFT,10X80
€ 8.50
13
13239018
ref: 13
DRUM ASSY,GEAR SHIFT
€ 100.50
14
220B0614
ref: 14
SCREW-PAN HEAD,6X14
€ 2.00
15
464H0600
ref: 15
WASHER-LOCK,6MM
€ 0.50
16
13142017
ref: 16
HOLDER,CHANGE DRUM PI
€ 8.00
17
92042030
ref: 17
PIN,GEAR CHNGE DRUM
€ 2.50
18
610A0406
ref: 18
ROLLER,4X6
€ 2.50
19
131451058
ref: 19
CAM-CHANGE DRUM
€ 15.00
20
480J3000
ref: 20
CIRCLIP-TYPE-C,30MM
€ 3.50
21
92043076
ref: 21
PIN-NEUTRAL PISTON
€ 8.00
22
92081112
ref: 22
SPRING
€ 4.00
23
92065090
ref: 23
GASKET (NAS)
€ 2.00
24
92001131
ref: 24
BOLT,10MM
€ 14.00
25
13140059
ref: 25
FORK-SHIFT,2ND&3RD
€ 61.50
26
13140058
ref: 26
FORK,SELECTR,LOW-4TH
€ 52.50
27
490471060
ref: 27
ROD-SHIFT,10X102
€ 12.00
28
315B1400
ref: 28
NUT,14MM
€ 1.00
29
92024052
ref: 29
WASHER,CLAW,14.3X32X1
€ 3.50
30
131441058
ref: 30
KD125/A2/A3
SPROCKET-OUTPUT,14T
€ 20.00
30
131441058
ref: 30
KD125-A4/A5
SPROCKET-OUTPUT,14T
€ 20.00
30
13144053
ref: 30
SPROCKET-OUTPUT,13T
€ 30.00
30
13144058
ref: 30
ENGINE SPROCKET,12T
€ 29.00
31
92055022
ref: 31
'O' RING
€ 4.00
32
920271077
ref: 32
COLLAR,20X25X12.5
€ 14.00
33
13128040
ref: 33
SHAFT-TRANSMISSION OU
€ 108.50
34
13131043
ref: 34
2ND GEAR,OUTPUT SHFT
€ 47.00
35
13137029
ref: 35
KD125/A2
TOP GEAR,OUTPUT SHFT
€ 82.00
35
13137043
ref: 35
KD125-A3/A4/A5
GEAR,OUTPUT TOP,16T
€ 54.50
36
131291011
ref: 36
KD125/A2/A3
GEAR,OUTPUT 3RD,20T
€ 26.00
36
131291011
ref: 36
KD125-A4/A5
GEAR,OUTPUT 3RD,20T
€ 26.00
37
131291013
ref: 37
KD125/A2
4TH GEAR,OUTPUT SHAFT
€ 49.00
37
131291015
ref: 37
KD125-A3
GEAR,OUTPUT 4TH,23T
€ 72.50
37
131291015
ref: 37
KD125-A4/A5
GEAR,OUTPUT 4TH,23T
€ 72.50
38
13248001
ref: 38
KD125/A2
5TH GEAR,OUTPUT SHFT
€ 44.50
38
13248003
ref: 38
KD125-A3/A4/A5
5TH GEAR, OUTPUT
€ 42.00
39
13129050
ref: 39
GEAR,OUTPUT LOW,26T
€ 38.00
40
92022273
ref: 40
WASHER,14.3X24X1
€ 6.00
41
92022267
ref: 41
WASHER,14X24X0.5
€ 3.00
42
13073011
ref: 42
GEAR-SPUR,IDLE,27T
€ 46.50
43
480J1300
ref: 43
CIRCLIP-TYPE-C,13MM
€ 2.50
44
113G1014
ref: 44
BOLT,HEX HEAD,10X14
€ 2.50
45
92065058
ref: 45
GASKET, 10,5X16X1 (NAS)
€ 2.50
