CARBURETOR
KD125-A5 1979 USA CANADA

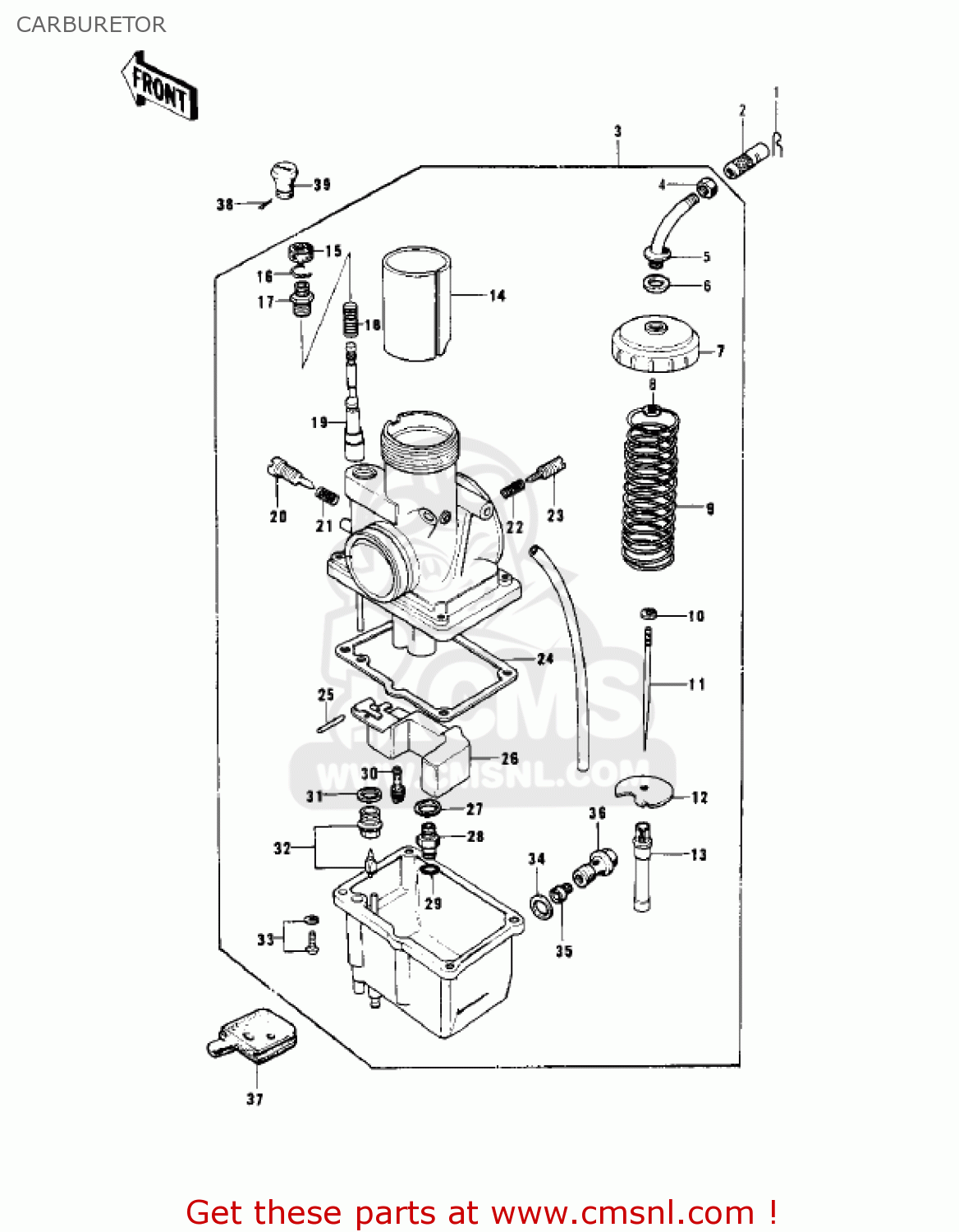

Carburetor diagram KD125-A5 1979 USA CANADA
CARBURETOR KD125-A5 1979 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92036018
ref: 1
CIRCLIP
€ 2.50
2
16002007
ref: 2
ADJUSTER-CABLE,THROTT
€ 7.50
3
16001225
ref: 3
CARBURETOR ASSEMBLY
€ 409.50
4
16003004
ref: 4
NUT-CABLE ADJUST LOCK
€ 4.50
5
16077011
ref: 5
GUIDE,CABLE
€ 13.50
6
16029007
ref: 6
GASKET,CABLE GUIDE (NAS)
€ 5.50
7
16004024
ref: 7
CAP,MIXING CHAMBER
€ 13.50
8
16008011
ref: 8
CLAMP,CABLE GUIDE
€ 4.50
9
16006029
ref: 9
SPRING,THROTTLE VALVE
€ 13.00
10
16008010
ref: 10
CLAMP,E-TYPE
€ 5.00
11
16009040
ref: 11
NEEDLE-JET,4EJ3
€ 28.00
12
16007025
ref: 12
SPRING,THRTTL VALVES
€ 6.00
13
16017085
ref: 13
NEEDLE JET,O-4
€ 25.00
14
16025079
ref: 14
VALVE,THROTTLE,CA2.5
€ 45.50
15
16036012
ref: 15
BOOT,STARTER PLUNGER
€ 4.50
16
920371077
ref: 16
CLAMP
€ 3.00
17
16012010
ref: 17
KD125/A2
CAP-STARTER PLUNGER
€ 8.00
17
16012021
ref: 17
KD125-A3/A4/A5
CAP-STARTER PLUNGER
€ 11.50
18
16013010
ref: 18
SPRING,STARTER PLUNGR
€ 3.50
19
16016018
ref: 19
PLUNGER, STARTER
€ 18.50
20
16021023
ref: 20
SCREW-THROTTLE STOP
€ 12.50
21
16022005
ref: 21
SPRING-THR STOP SCREW
€ 5.50
22
16022007
ref: 22
SPRING-THR STOP SCREW
€ 5.50
23
16014002
ref: 23
SCREW-PILOT AIR
€ 11.00
24
16019023
ref: 24
GASKET,FLOAT CHAMBER (NAS)
€ 10.00
25
16032006
ref: 25
PIN,FLOAT
€ 4.00
26
16031026
ref: 26
FLOAT
€ 40.00
27
16034001
ref: 27
WASHER-MAIN JET
€ 2.50
28
16065008
ref: 28
HOLDER,JET NEEDLE
€ 12.00
29
92055044
ref: 29
'O' RING
€ 7.00
30
92064022
ref: 30
PILOT JET #30 ISO
€ 11.50
31
16029004
ref: 31
WASHER-FLOAT VLV SEAT
€ 2.50
32
16030024
ref: 32
VALVE-FLOAT
€ 30.50
33
223B0414
ref: 33
SCREW PAN-WS-CROS
€ 2.50
34
16034005
ref: 34
WASHER,BANJO BOLT (MCA)
€ 3.00
35
920631033
ref: 35
STD
JET-MAIN,#A100R
€ 17.00
35
920631031
ref: 35
MAIN JET,#95R
€ 10.00
35
920631035
ref: 35
MAIN JET,#97.5R
€ 10.00
35
920631028
ref: 35
JET-MAIN,#A102.5R
€ 10.00
35
920631042
ref: 35
JET-MAIN,#A105R
€ 10.50
36
92001097
ref: 36
BOLT-BANJO
€ 15.50
37
16136009
ref: 37
GROMMET,OVERFLOW
€ 6.00
38
550D1615
ref: 38
PIN-COTTER,1.6X15
€ 1.50
39
92077022
ref: 39
KNOB,CARBURETOR
€ 7.00
