SEAT/CHAIN COVER
KD100-M3 1977 CANADA

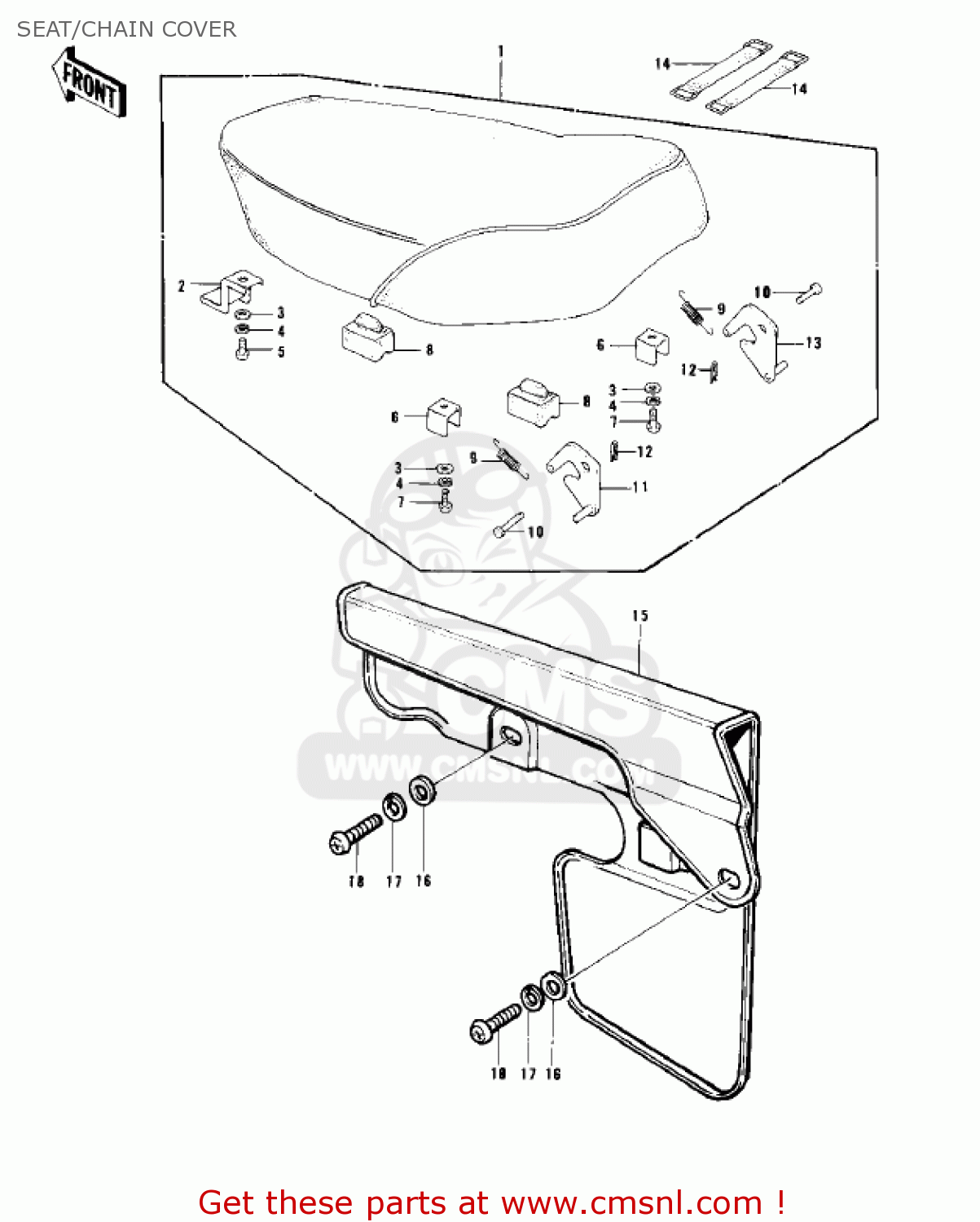

Seat/chain cover diagram KD100-M3 1977 CANADA
SEAT/CHAIN COVER KD100-M3 1977 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
530011018
ref: 1
KD100-M1/M2/M3
SEAT ASSY
€ 207.00
1
530011027
ref: 1
KD100-M4
SEAT ASSEMBLY
€ 90.00
2
53032004
ref: 2
BRACKET,SEAT
€ 4.00
3
410B0600
ref: 3
WASHER-PLAIN-SMALL,6M
€ 0.50
4
461F0600
ref: 4
WASHER-SPRING,6MM
€ 0.50
5
220B0614
ref: 5
SCREW-PAN HEAD,6X14
€ 2.00
6
53012012
ref: 6
SPRING,SEAT HOOK
€ 2.00
7
220B0612
ref: 7
SCREW-PAN HEAD,6X12
€ 1.00
8
92075099
ref: 8
DAMPER RUBBER
€ 3.50
9
53012013
ref: 9
SPRING,HOOK
€ 10.50
10
53011001
ref: 10
PIN,6X12
€ 2.50
11
53008031
ref: 11
HOOK,SEAT,LH
€ 6.00
12
92041003
ref: 12
COTTER
€ 0.50
13
53008032
ref: 13
HOOK,SEAT,RH
€ 6.00
14
92072066
ref: 14
BAND,L=50
€ 11.00
15
360141024
ref: 15
CASE-CHAIN
€ 24.50
16
411B0600
ref: 16
WASHER-PLAIN,6MM
€ 0.50
17
461F0600
ref: 17
WASHER-SPRING,6MM
€ 0.50
18
220B0612
ref: 18
SCREW-PAN HEAD,6X12
€ 1.00
