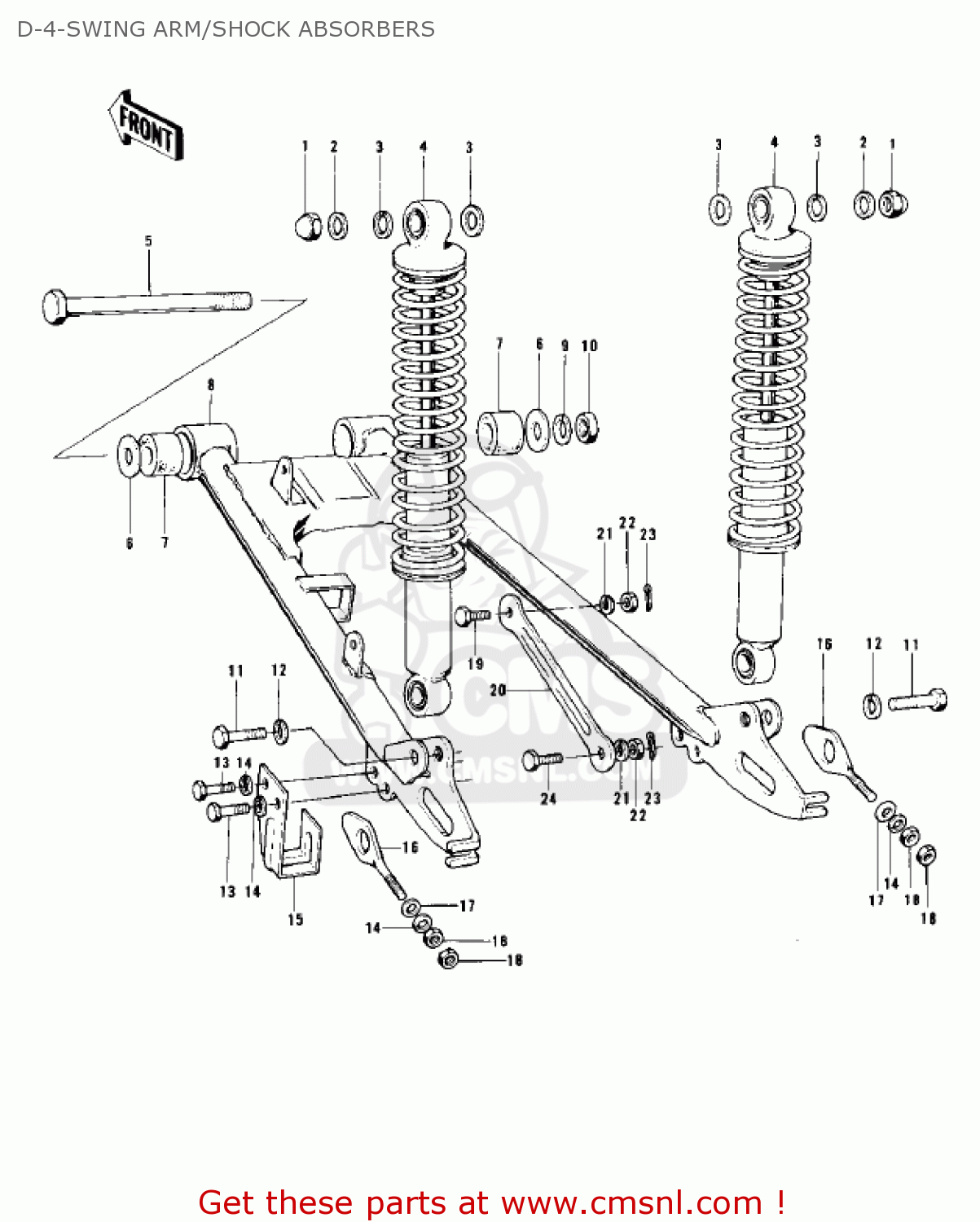

D-4-SWING ARM/SHOCK ABSORBERS

ref

part #

description

quantity

1

92020014
ref: 1

NUT,CAP,12MM

€ 6.50

2

461F1200
ref: 2

WASHER-SPRING,12MM

€ 0.50

3

410B1200
ref: 3

WASHER-PLAIN-SMALL,12

€ 0.50

4

45014100
ref: 4
KD100-M1/M2

SHOCK ABSORBER,REAR

€ 60.00

4

450141019
ref: 4
KD100-M3/M4

SHOCK ABSORBER,REAR

€ 95.50

5

33032043
ref: 5

SHAFT-SWING ARM

€ 19.50

6

410B1200
ref: 6

WASHER-PLAIN-SMALL,12

€ 0.50

7

92092005
ref: 7

BUSH-SWING ARM SHAFT

€ 9.50

8

33001055
ref: 8

ARM,SWINGING

€ 86.50

9

461F1200
ref: 9

WASHER-SPRING,12MM

€ 0.50

10

314B1200
ref: 10

NUT-HEX-FINE

€ 1.00

11

113N1028
ref: 11

BOLT,HEX HEAD,10X28

€ 2.50

12

461F1000
ref: 12

WASHER-SPRING,10MM

€ 0.50

13

112B0614
ref: 13

BOLT-UPSET 6X14

€ 2.50

14

461F0600
ref: 14

WASHER-SPRING,6MM

€ 0.50

15

55020012
ref: 15

GUARD,CHAIN

€ 7.00

16

33040008
ref: 16

ADJUSTER-CHAIN

€ 7.00

17

92022024
ref: 17
KD100-M1/M2

WASHER,7X16X1.2

€ 2.50

17

920221565
ref: 17
KD100-M3/M4

WASHER,6.5X16X2

€ 2.50

18

311B0600
ref: 18

NUT,6MM

€ 0.50

19

92003017
ref: 19

BOLT-TRQ LINK 10X25

€ 3.50

20

43007037
ref: 20

ROD-TORQUE

€ 7.50

21

461F1000
ref: 21

WASHER-SPRING,10MM

€ 0.50

22

314B1000
ref: 22

NUT,10MM

€ 0.50

23

550D2015
ref: 23
KD100-M1/M2/M3

PIN-COTTER,2.0X15

€ 1.00

24

92003003
ref: 24

BOLT-HEX HEAD,10X32

€ 4.00

all assemblies
