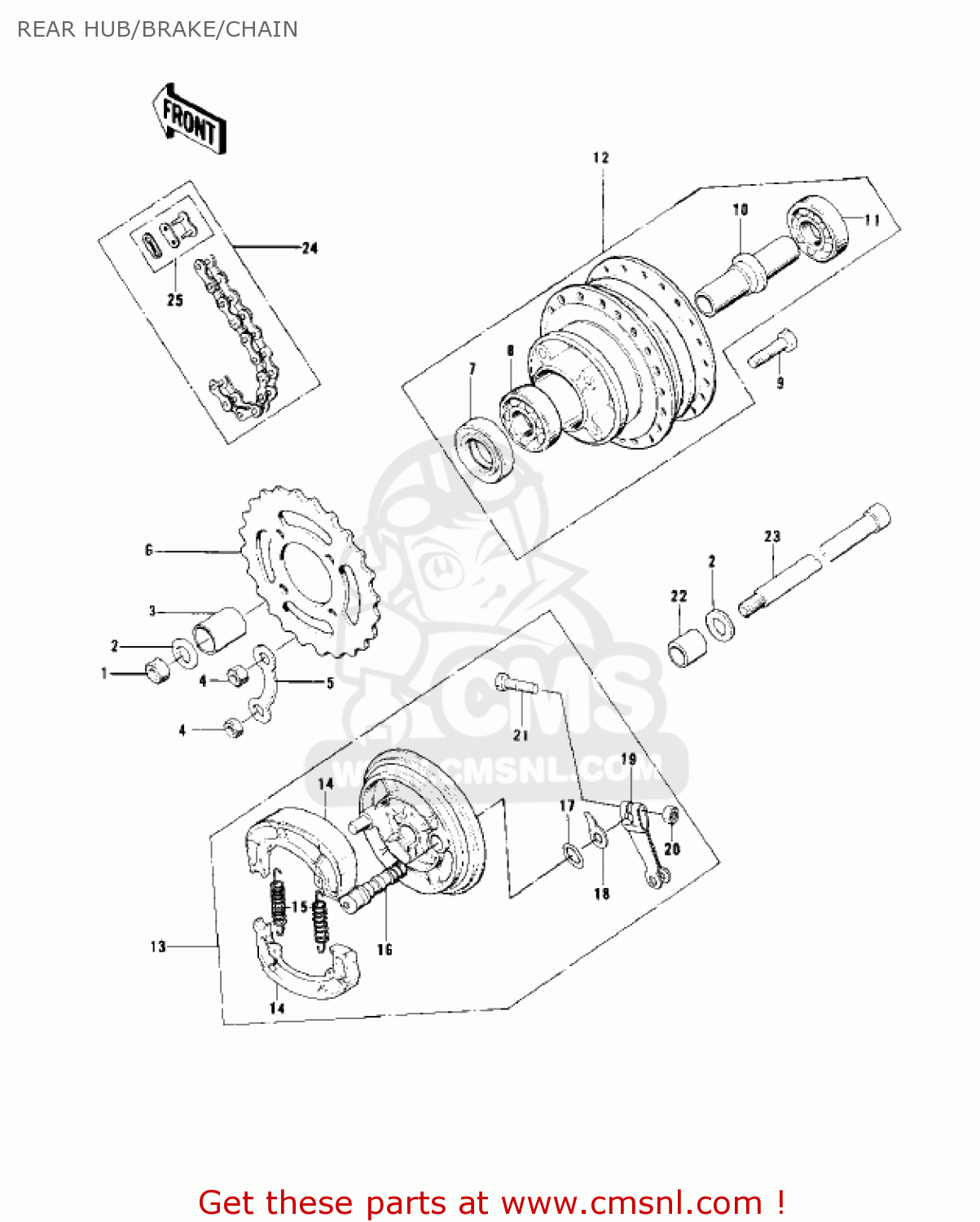

REAR HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

314B1200
ref: 1

NUT-HEX-FINE

€ 1.00

2

411B1200
ref: 2

WASHER-PLAIN,12MM

€ 0.50

3

42032044
ref: 3

COLLAR,L=14

€ 6.00

4

311B0800
ref: 4

NUT,8MM

€ 0.50

5

92088003
ref: 5

WASHER,SPROCKET LOCK

€ 3.00

6

42041022
ref: 6
STD

REAR SPROCKET 36T

€ 34.00

6

42041019
ref: 6

REAR SPROCKET 34T

€ 39.00

7

92052001
ref: 7

OIL SEAL-RR BRK DRUM

€ 6.50

8

601B6301
ref: 8

BEARING-BALL,#6301C3

€ 13.00

9

92001021
ref: 9

BOLT-REAR SPROCKET

€ 3.50

10

42010003
ref: 10

COLLAR,L=85

€ 6.50

11

601B6301Z
ref: 11

BEARING-BALL,#6301ZC3

€ 15.00

12

41034100280
ref: 12
KD100-M1/M2/M3

DRUM ASSY,RR BRK,BUFF

€ 264.50

12

41034100280
ref: 12
KD100-M4

DRUM ASSY,RR BRK,BUFF

€ 264.50

13

4200606380
ref: 13

PANEL ASSY,REAR BRAKE

€ 174.50

14

410481085
ref: 14

SHOE-BRAKE (NAS)

€ 13.00

15

920811766
ref: 15

SPRING,BRAKE SHOE

€ 5.50

16

42026018
ref: 16

CAM-BRAKE

€ 19.50

17

92055004
ref: 17

RING-O,BRAKE CAM

€ 3.00

18

41085003
ref: 18

INDICATOR,BRAKE SHOE

€ 9.00

19

42029027
ref: 19

LEVER-BRAKE CAM

€ 16.50

20

41072007
ref: 20

NUT,6MM

€ 2.50

21

112G0630
ref: 21

BOLT-UPSET

€ 1.00

22

42032002
ref: 22

COLLAR,12.2X22X30.5

€ 9.00

23

410681091
ref: 23

AXLE,12X206

€ 24.00

24

920571089
ref: 24

CHAIN,DRIVE,EK428 96L

€ 19.00

25

920581014
ref: 25

JOINT-CHAIN,EK428-G

€ 3.50
