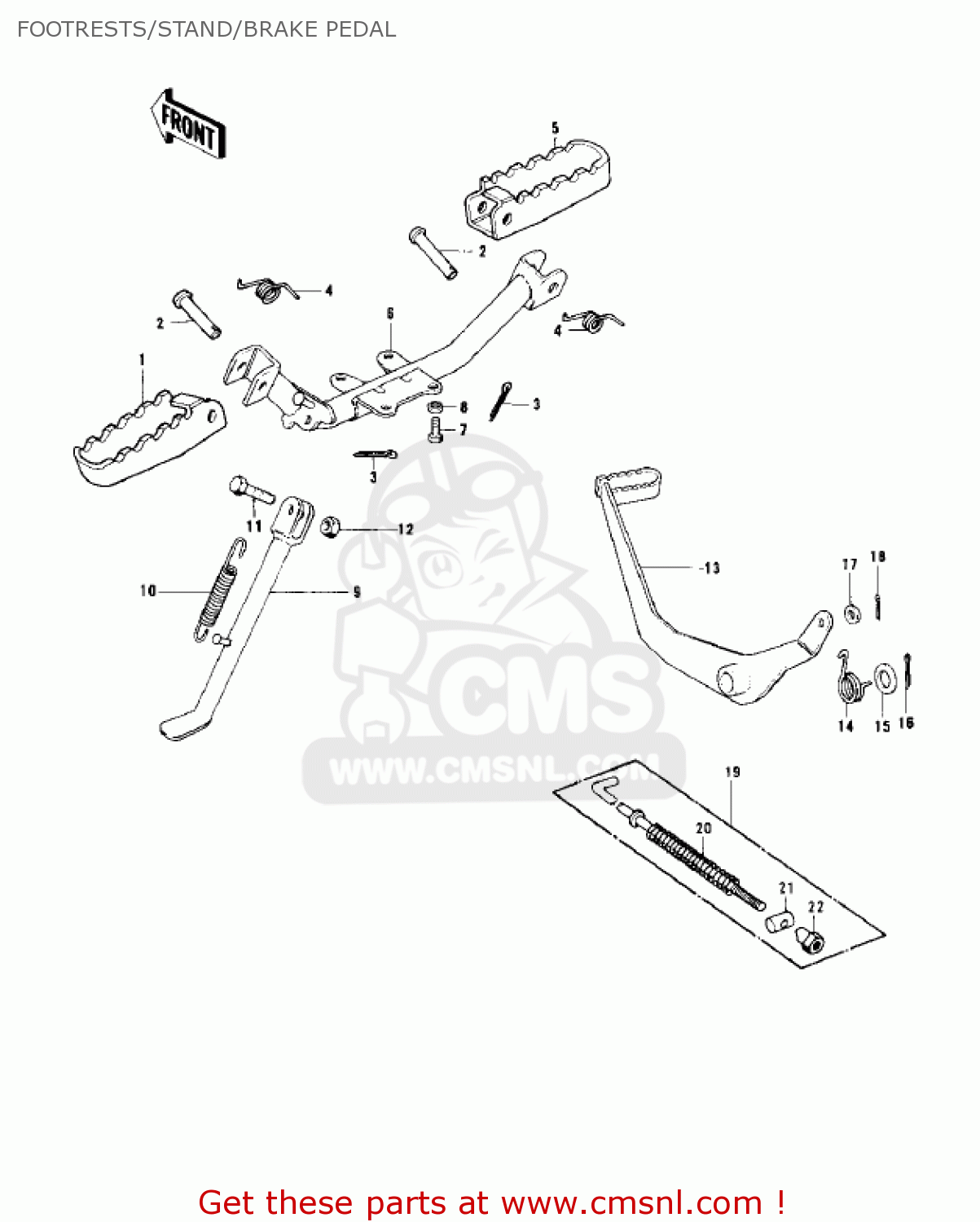

FOOTRESTS/STAND/BRAKE PEDAL

ref

part #

description

quantity

1

34028024
ref: 1

FOOTREST BAR,LH

€ 40.50

2

92043080
ref: 2

PIN-FOOTREST BAR FIT

€ 3.50

3

550D2516
ref: 3

PIN-COTTER,2.5X16

€ 1.50

4

92083027
ref: 4

FOOTREST BAR SPRING

€ 23.00

5

34028023
ref: 5

FOOTREST BAR,RH

€ 61.00

6

34002047
ref: 6

HOLDER-STEP

€ 77.50

7

115G0818
ref: 7

BOLT SMALL-UPSET

€ 2.50

8

461F0600
ref: 8

WASHER-SPRING,6MM

€ 0.50

9

340241013
ref: 9
KD100-M1/M2

STAND-SIDE

€ 30.00

9

340241013
ref: 9
KD100-M3/M4

STAND-SIDE

€ 30.00

11

113G1025
ref: 11
KD100-M1/M2

BOLT-SMALL-FINE,10X25

€ 2.50

11

113G1028
ref: 11
KD100-M3/M4

BOLT,HEX HEAD,10X28

€ 4.50

12

314B1000
ref: 12

NUT,10MM

€ 0.50

13

43001062
ref: 13

LEVER-BRAKE,PEDAL

€ 30.00

14

43005020
ref: 14

SPRING,BRAKE PEDAL

€ 4.00

15

92022085
ref: 15

WASHER,15.3X24X1.2

€ 2.50

16

530D3030
ref: 16

UNAVAILABLE IN PRICE BOOK

€ 0.00

17

410B0600
ref: 17

WASHER-PLAIN-SMALL,6M

€ 0.50

18

550D2015
ref: 18

PIN-COTTER,2.0X15

€ 1.00

19

430105004
ref: 19

ROD-ASSY-BRAKE

€ 15.50

20

43012001
ref: 20

SPRING,BRAKE ROD

€ 3.00

21

92043039
ref: 21

PIN,BRAKE ROD

€ 4.50

22

92015042
ref: 22

NUT-BRAKE ROD ADJUST

€ 4.00
