TRANSMISSION/CHANGE DRUM ('73 F1
F11M 1973 USA

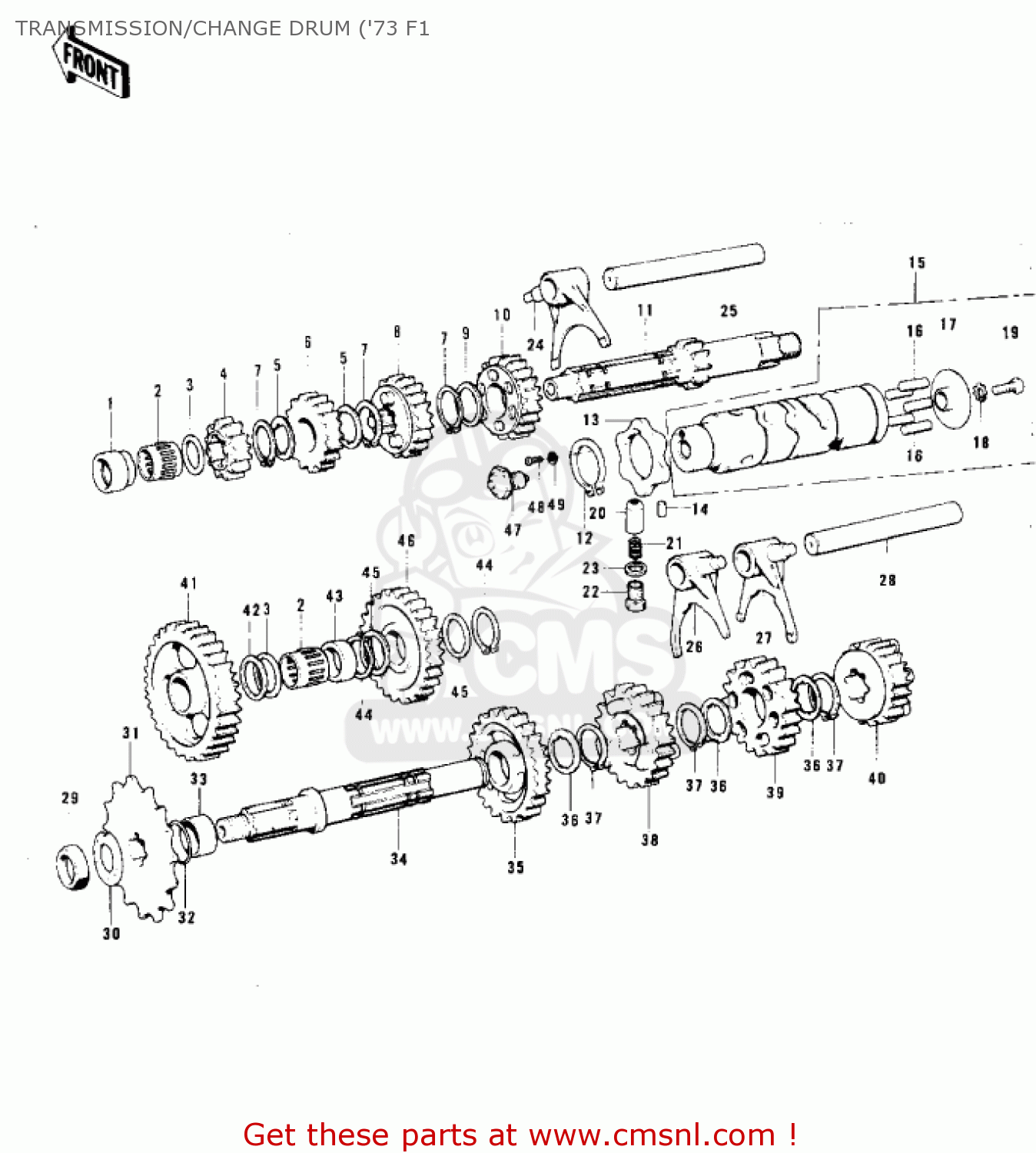

Transmission/change drum ('73 f1 diagram F11M 1973 USA
TRANSMISSION/CHANGE DRUM ('73 F1 F11M 1973 USA
×
prices are in EUR
ref
part #
description
quantity
1
92028109
ref: 1
BUSHING
€ 18.50
2
920461184
ref: 2
BEARING-NEEDLE
€ 20.00
3
92022075
ref: 3
LD=17.5
WASHER,17MM
€ 4.50
4
13130029
ref: 4
16T
GEAR,DRIVESHAFT,2ND
€ 67.50
5
92024039
ref: 5
O.D=27
WASHER-LOCK
€ 4.00
6
13136043
ref: 6
22T
TOP GEAR,DRIVE SHAFT
€ 18.00
7
92033025
ref: 7
CIRCLIP,25MM
€ 3.00
8
13132032
ref: 8
19T
3RD GEAR,DRIVE SHAFT
€ 48.00
9
92022198
ref: 9
I.D=22.3
WASHER-PLAIN
€ 3.50
10
13134017
ref: 10
21T
4TH GEAR,DRIVE SHAFT
€ 18.00
11
13127040
ref: 11
14T
SHAFT-DRIVE
€ 88.00
12
480J3000
ref: 12
CIRCLIP-TYPE-C,30MM
€ 3.50
13
131451058
ref: 13
CAM-CHANGE DRUM
€ 15.00
14
610A0406
ref: 14
ROLLER,4X6
€ 2.50
15
13239012
ref: 15
DRUM ASSY-GEAR CHANGE
€ 88.00
16
92042014
ref: 16
PIN-GEAR CHANGE DRUM
€ 0.50
17
13142008
ref: 17
PLATE-CHANGE DRUM PIN
€ 4.00
18
464H0600
ref: 18
WASHER-LOCK,6MM
€ 0.50
19
220B0612
ref: 19
SCREW-PAN HEAD,6X12
€ 1.00
20
92043076
ref: 20
PIN-NEUTRAL PISTON
€ 8.00
21
92081112
ref: 21
SPRING
€ 4.00
22
92001106
ref: 22
BOLT
€ 2.00
23
92065090
ref: 23
GASKET (NAS)
€ 2.00
24
13140044
ref: 24
FORK-SELECTOR,4TH&TOP
€ 43.50
25
13209007
ref: 25
L=64.5M/M
ROD-SHIFT,LONG
€ 4.00
26
13140043
ref: 26
FORK-SELECTOR,2ND&3RD
€ 44.50
27
13140042
ref: 27
FORK-SELECTOR,LOW
€ 43.50
28
13209007
ref: 28
L=94 M/M
ROD-SHIFT,LONG
€ 4.00
29
92015019
ref: 29
NUT,18MM
€ 4.00
30
92024067
ref: 30
WASHER,LOCK
€ 2.00
31
13144017
ref: 31
STD
SPROCKET-OUTPUT,14T
€ 35.50
32
92055035
ref: 32
O RING
€ 3.00
33
92027163
ref: 33
COLLAR,25X30X10.1
€ 13.00
34
13128033
ref: 34
SHAFT-OUTPUT
€ 35.50
35
13131039
ref: 35
26T
2ND GEAR,OUTPUT SHAFT
€ 17.00
36
92024038
ref: 36
O.D=31
WASHER-LOCK
€ 4.00
37
92033026
ref: 37
CIRCLIP
€ 6.00
38
13137026
ref: 38
20T
TOP GEAR,OUTPUT SHAFT
€ 31.50
39
13133032
ref: 39
24T
3RD GEAR,OUTPUT SHAFT
€ 26.50
40
13135021
ref: 40
22T
4TH GEAR,OUTPUT SHAFT
€ 20.50
41
13129047
ref: 41
29T
LOW GEAR,OUTPUTSHAFT
€ 16.00
42
92026021
ref: 42
WASHER-THRUST
€ 9.00
43
92028110
ref: 43
BUSHING
€ 7.00
44
480J1600
ref: 44
CIRCLIP-TYPE-C,16MM
€ 2.50
45
92022197
ref: 45
LD=17.3
WASHER-THRUST
€ 1.00
46
13073008
ref: 46
30T
IDLE GEAR-KICKSTARTER
€ 31.50
47
13151018
ref: 47
SWITCH-COMP,NEUTRAL
€ 25.50
48
92009006
ref: 48
SCREW,PAN HEAD,4X6
€ 1.00
49
461F0400
ref: 49
WASHER-SPRING,4MM
€ 0.50
