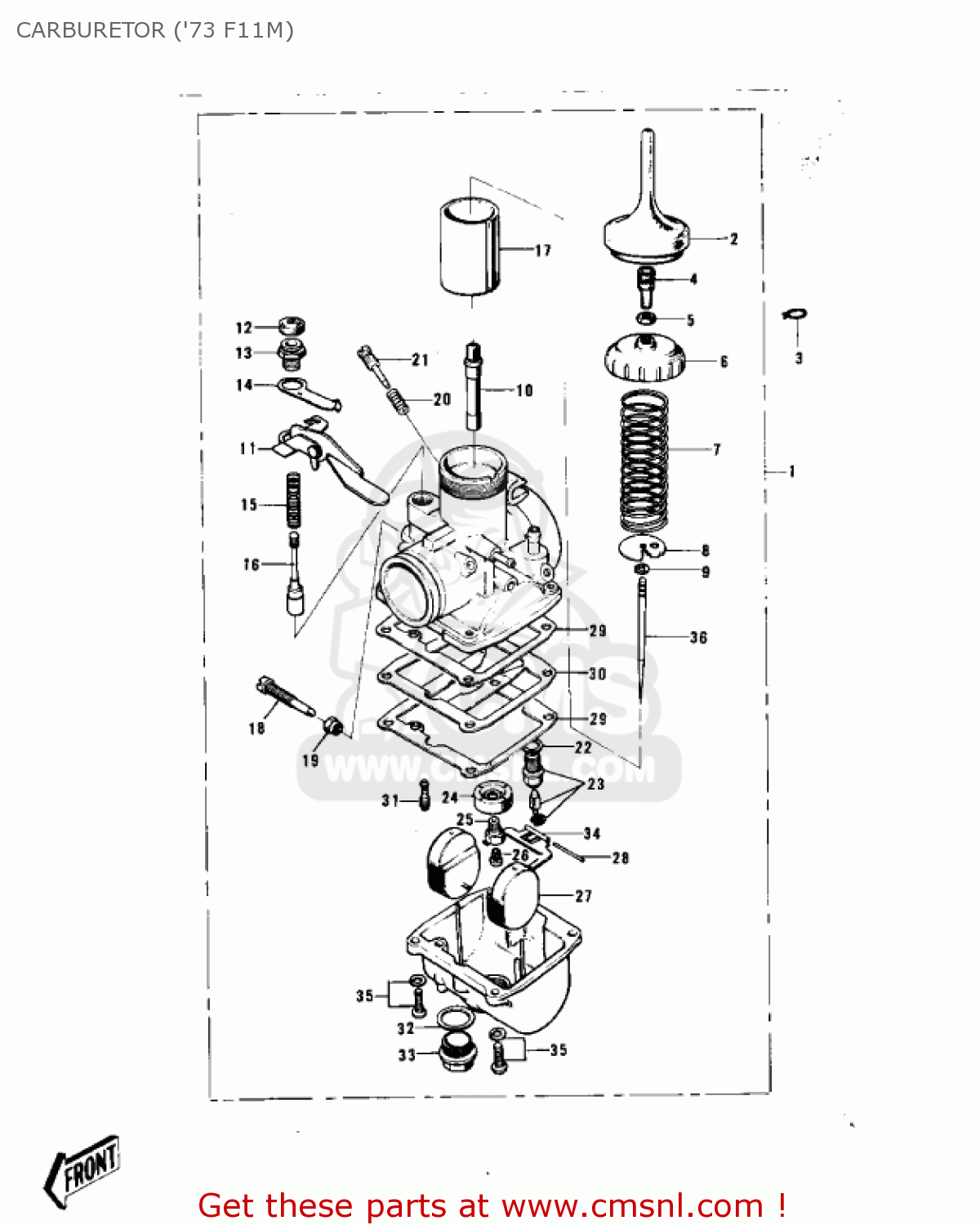

CARBURETOR ('73 F11M)

ref

part #

description

quantity

1

16001176
ref: 1

CARBRETOR ASSY

€ 87.50

2

16036011
ref: 2

CAP,CABLE ADJUSTER

€ 6.00

3

92036018
ref: 3

CIRCLIP

€ 2.50

4

16002011
ref: 4

CABLE ADJUSTER

€ 9.50

5

16006006
ref: 5

SPRING-THROTTLE VALVE

€ 2.50

6

16004022
ref: 6

TOP,MIXING CHAMBER

€ 7.00

7

16006016
ref: 7

SPRING-THROTTLE VALVE

€ 12.50

8

16007022
ref: 8

CARBURETOR SPRING SEAT

€ 28.50

9

16008010
ref: 9

CLAMP,E-TYPE

€ 5.00

10

16017067
ref: 10

NEEDLE JET 0-6

€ 9.50

11

1606300
ref: 11

UNAVAILABLE IN PRICE BOOK

€ 0.00

12

16036012
ref: 12

BOOT,STARTER PLUNGER

€ 4.50

13

16012016
ref: 13

CAP-STARTER PLUNGER

€ 6.50

14

16013009
ref: 14

SPRING,STARTER LEVER

€ 3.50

15

16013008
ref: 15

SPRING-STARTER PLUNG

€ 4.50

16

16016011
ref: 16

PLUNGER

€ 24.50

17

16025056
ref: 17

VALVE,THROTTLE CA2,50

€ 19.00

18

16021022
ref: 18

SCREW,THROTTLE STOP

€ 13.50

19

16003009
ref: 19

NUT,CABLE ADJ LOCK

€ 2.50

20

16022007
ref: 20

SPRING-THR STOP SCREW

€ 5.50

21

16014006
ref: 21

SCREW-PILOT AIR

€ 9.00

22

16029004
ref: 22

WASHER-FLOAT VLV SEAT

€ 2.50

23

16030020
ref: 23

VALVE-FLOAT

€ 42.00

24

16065024
ref: 24

RING

€ 25.50

25

16065025
ref: 25

HOLDER,MAIN JET

€ 23.00

26

92063057
ref: 26
STD

MAIN JET,#130R

€ 9.50

26

92063055
ref: 26
OPTION

MAIN JET,#125R

€ 9.50

26

920631100
ref: 26
OPTION

JET-MAIN,#A127.5

€ 9.50

26

92063103
ref: 26
OPTION

MAIN JET,#132.5R

€ 8.50

26

92063104
ref: 26
OPTION

JET-MAIN,#135R

€ 8.50

27

160311062
ref: 27

FLOAT

€ 35.50

28

16032003
ref: 28

FLOAT PIN

€ 4.00

29

16019022
ref: 29

GASKET,FLOAT CHAMBER

€ 4.00

30

16038010
ref: 30

PLATE,FLOAT CHAMBER

€ 23.50

31

92064027
ref: 31

JET,PILOT,#30,ISO

€ 18.00

32

16034003
ref: 32

WASHER-MAIN JET COVER

€ 2.00

33

16049004
ref: 33

COVER,MAIN JET

€ 14.50

34

16055004
ref: 34

ARM,FLOAT

€ 11.50

35

16033017
ref: 35

SCREW, FLOAT CHAMBER

€ 0.00

36

16009058
ref: 36

JET NEEDLE.6FL14

€ 4.00

all assemblies
