HANDLEBAR
EX500F3 GPZ500S 1996 AUSTRIA

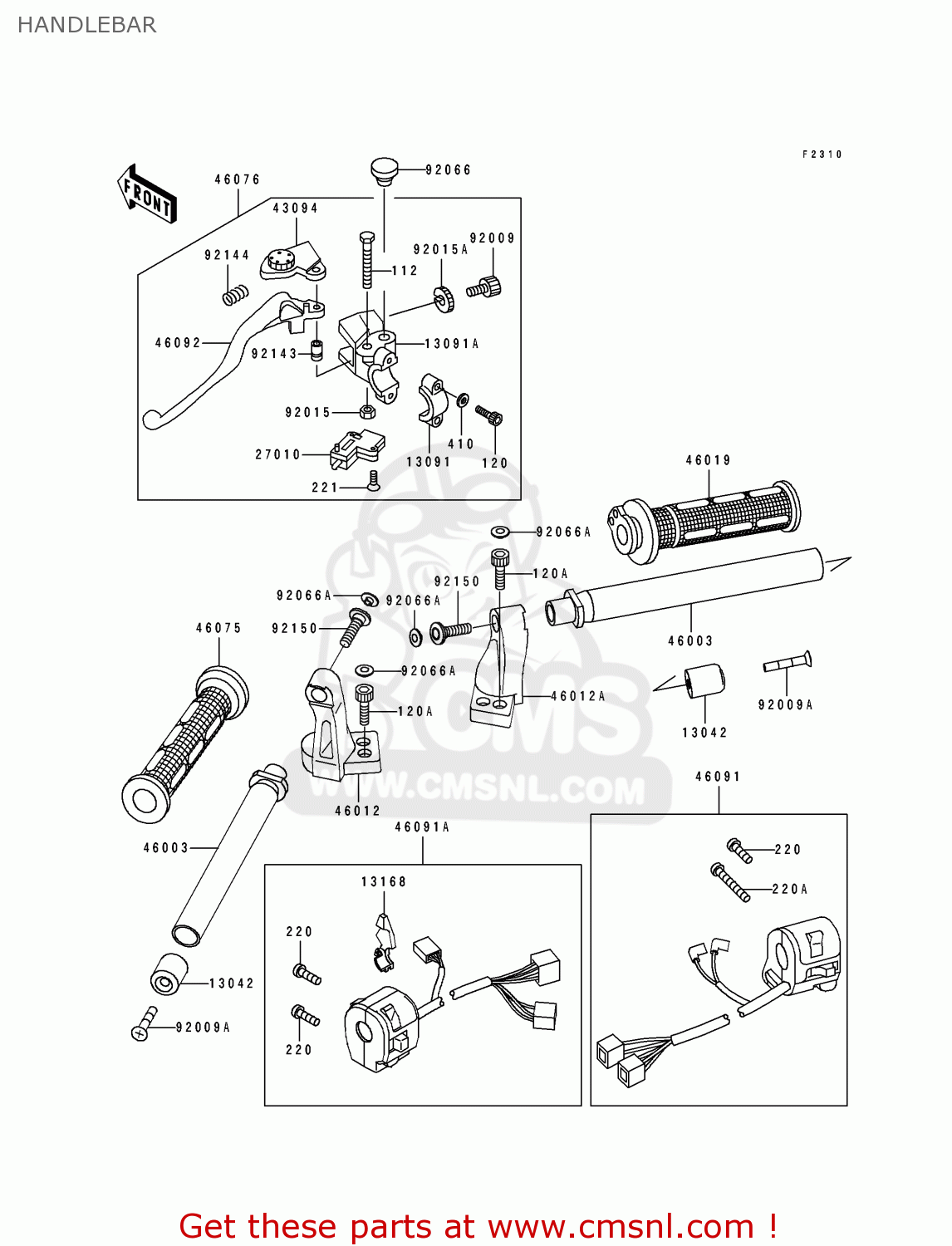

Handlebar diagram EX500F3 GPZ500S 1996 AUSTRIA
HANDLEBAR EX500F3 GPZ500S 1996 AUSTRIA
×
prices are in EUR
ref
part #
description
quantity
112
112C0640
ref: 112
BOLT-UPSET
€ 2.50
120
120S0620
ref: 120
BOLT-SOCKET,6X20
€ 1.00
120A
120S0816
ref: 120A
BOLT-SOCKET
€ 2.50
220
220C0525
ref: 220
SCREW-PAN-CROS
€ 2.00
220A
220C0540
ref: 220A
SCREW-PAN-CROS
€ 1.50
221
221C0316
ref: 221
SCREW-CSK-CROS
€ 2.50
410
410F0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
13042
130421069
ref: 13042
WEIGHT,HANDLE
€ 21.50
13091
130911624
ref: 13091
HOLDER,CLUTCH LEVER
€ 26.00
13091A
130911652
ref: 13091A
HOLDER,CLUTCH LEVER
€ 40.50
13168
131681516
ref: 13168
LEVER,CHOKE
€ 7.50
27010
270101094
ref: 27010
SWITCH,CLUTCH
€ 20.50
43094
430941053
ref: 43094
ADJUSTER,CLUTCH LEVER
€ 26.00
46003
460031390
ref: 46003
HANDLE
€ 44.50
46012
46012124810
ref: 46012
HOLDER-HANDLE,LH,BLAC
€ 102.00
46012A
46012124910
ref: 46012A
HOLDER-HANDLE,RH,BLAC
€ 102.00
46019
460191077
ref: 46019
GRIP-ASSY,THROTTLE
€ 27.50
46075
460751088
ref: 46075
GRIP,LH
€ 11.50
46076
460761165
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 82.00
46091
460911589
ref: 46091
HOUSING-ASSY-CONTROL,
€ 135.50
46091A
460911594
ref: 46091A
HOUSING-ASSY-CONTROL,
€ 201.50
46092
460921161
ref: 46092
LEVER-GRIP,CLUTCH
€ 14.00
92009
920091134
ref: 92009
SCREW,CBL ADJUST,8MM
€ 10.50
92009A
920091257
ref: 92009A
SCREW,HANDLE WEIGHT
€ 3.00
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
€ 2.00
92015A
920151197
ref: 92015A
NUT,CABLE ADJUST LOCK
€ 6.50
92066
920661077
ref: 92066
CAP,REAR VIEW MIRROR
€ 3.00
92066A
920661216
ref: 92066A
PLUG,HANDLE HOLDER
€ 3.00
92143
921431379
ref: 92143
COLLAR
€ 6.50
92144
921441467
ref: 92144
SPRING
€ 4.00
92150
921501425
ref: 92150
BOLT
€ 3.00
